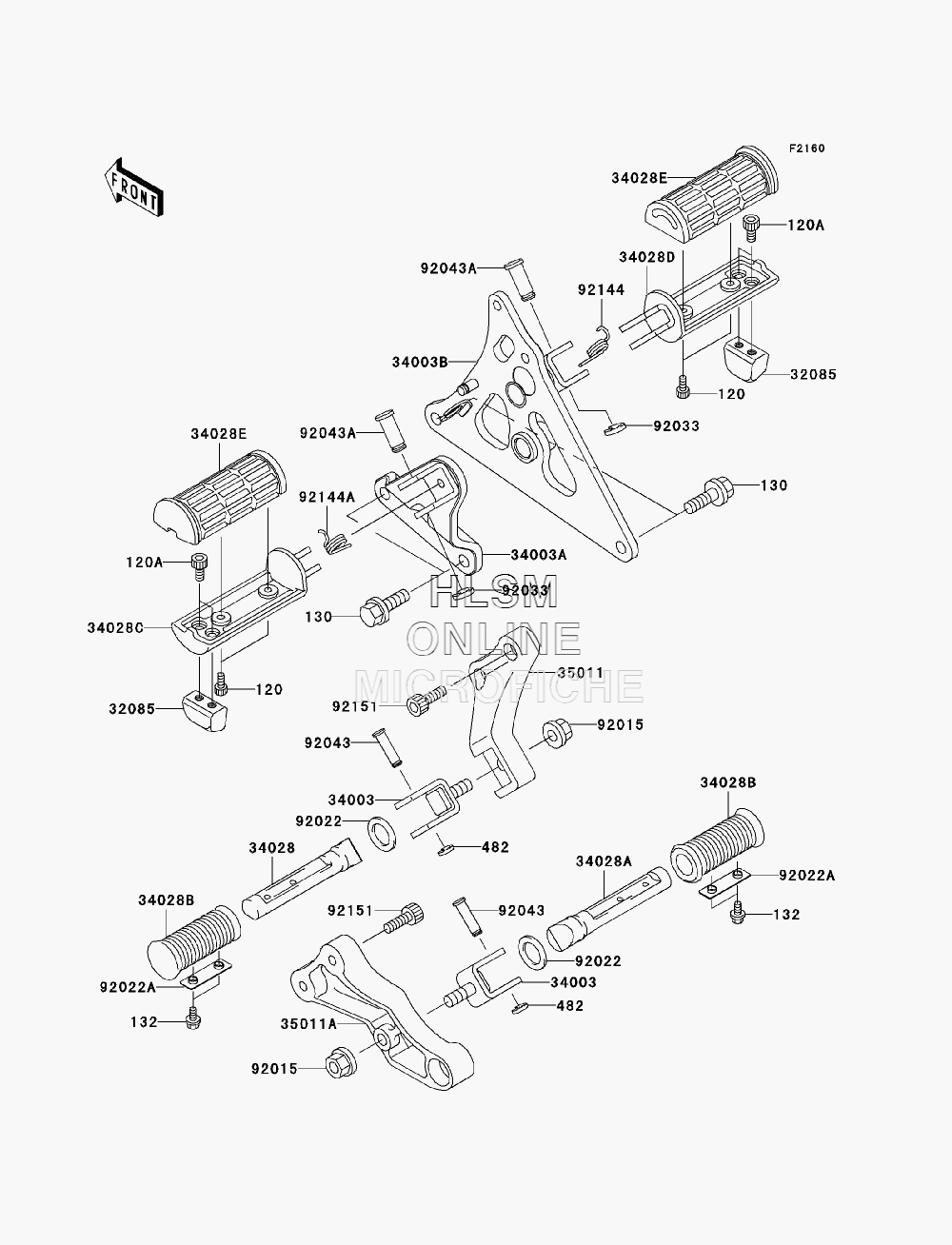

FOOTRESTS для Kawasaki Vulcan 1500 Mean Streak (VN1500-P1) - 2002 года выпуска

  • №
    Артикул
    Название
  • 120
    120S0512 BOLT-SOCKET
    BOLT-SOCKET
  • 120A
    120S0614 BOLT-SOCKET, 6X14, (BLACK)
    BOLT-SOCKET, 6X14, (BLACK)
  • 130
    130J1030 BOLT-FLANGED, 10X30
    BOLT-FLANGED, 10X30
  • 132
    132J0510 BOLT-FLANGED-SMALL
    BOLT-FLANGED-SMALL
  • 482
    482L7000 CIRCLIP-TYPE-E
    CIRCLIP-TYPE-E
  • 32085
    32085-1534 STOPPER, BANK SENSOR
    STOPPER, BANK SENSOR
  • 34003
    34003-1292 HOLDER-STEP, REAR
    HOLDER-STEP, REAR
  • 34003A
    34003-1506 HOLDER-STEP, FRONT, LEFT HAND
    HOLDER-STEP, FRONT, LEFT HAND
  • 34003B
    34003-1507 HOLDER-STEP, FRONT, RIGHT HAND
    HOLDER-STEP, FRONT, RIGHT HAND
  • 34028
    34028-1219 STEP, REAR, LEFT HAND
    STEP, REAR, LEFT HAND
  • 34028A
    34028-1220 STEP, REAR, RIGHT HAND
    STEP, REAR, RIGHT HAND
  • 34028B
    34028-1221 STEP, REAR, RUBBER
    STEP, REAR, RUBBER
  • 34028C
    34028-1519 STEP, FRONT, LEFT HAND
    STEP, FRONT, LEFT HAND
  • 34028D
    34028-1520 STEP, FRONT, RIGHT HAND
    STEP, FRONT, RIGHT HAND
  • 34028E
    34028-1522 STEP, RUBBER
    STEP, RUBBER
  • 35011
    35011-1770 STAY, REAR STEP, LEFT HAND
    STAY, REAR STEP, LEFT HAND
  • 35011A
    35011-1922 STAY, REAR STEP, RIGHT HAND
    STAY, REAR STEP, RIGHT HAND
  • 92015
    92015-1428 NUT, FLANGED, 10MM
    NUT, FLANGED, 10MM
  • 92022
    92022-1568 WASHER, 20X30X2.3
    WASHER, 20X30X2.3
  • 92022A
    92022-1874 WASHER, STEP
    WASHER, STEP
  • 92033
    92033-1166 RING-SNAP, 10MM
    RING-SNAP, 10MM
  • 92043
    92043-1339 PIN, 8X36.5
    PIN, 8X36.5
  • 92043A
    92043-1358 PIN, 12X37
    PIN, 12X37
  • 92144
    92144-1126 SPRING, STEP RETURN
    SPRING, STEP RETURN
  • 92144A
    92144-1210 SPRING, STEP RETURN
    SPRING, STEP RETURN
  • 92151
    92151-1525 BOLT, SOCKET, 8X25
    BOLT, SOCKET, 8X25
