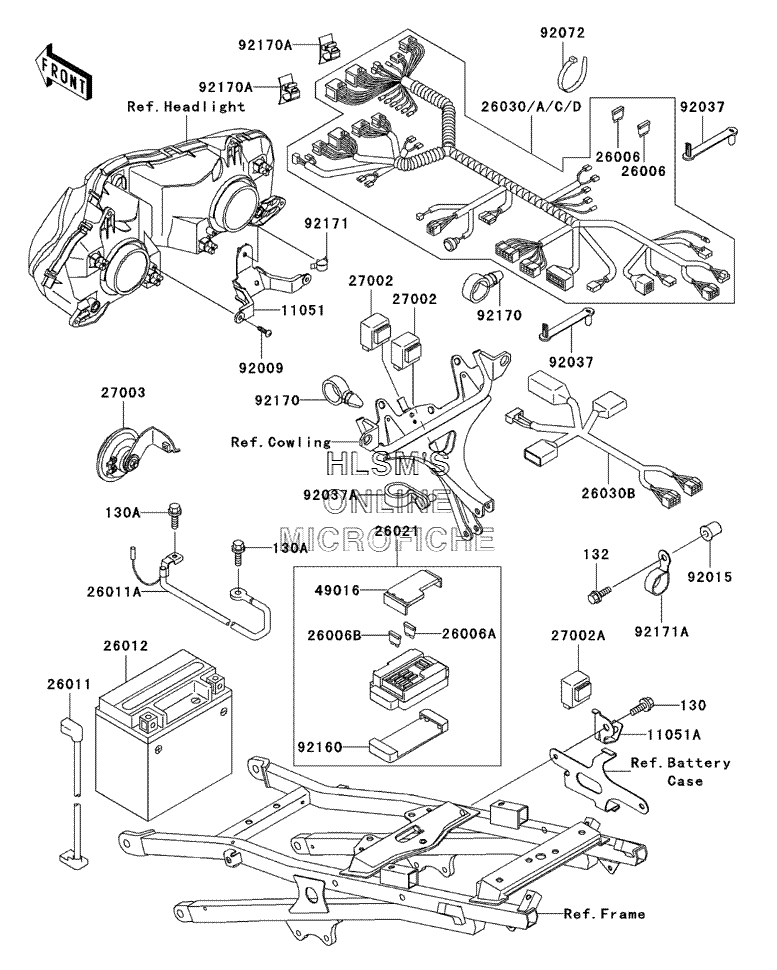

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki NINJA ZX-6R - 2002 года выпуска`
-
№АртикулНазвание
-
130130J0616 BOLT, FLANGED, 6X16 (BLACK)BOLT, FLANGED, 6X16 (BLACK)
-
130A130V0610 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
132132J0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1105111051-1827 BRACKET, HEAD LAMPBRACKET, HEAD LAMP
-
11051A11051-1915 BRACKET, FUSEBRACKET, FUSE
-
2600626006-1051 FUSE, 20A, YFUSE, 20A, Y
-
26006A26006-1067 FUSE, 30A, GFUSE, 30A, G
-
26006B26006-1068 FUSE, 10A, RFUSE, 10A, R
-
2601126011-1767 WIRE, LEAD, BATTERY (+)WIRE, LEAD, BATTERY (+)
-
26011A26011-1768 WIRE, LEAD, BATTERY (-)WIRE, LEAD, BATTERY (-)
-
2601226012-1326 BATTERY, YTX9, BS, 12V 8AHBATTERY, YTX9, BS, 12V 8AH
-
2602126021-1096 JUNCTION BOXJUNCTION BOX
-
26030B26030-1779 HARNESS, FRONTHARNESS, FRONT
-
26030C26030-1827 HARNESS, MAIN (EXCEPT CALIF.)HARNESS, MAIN (EXCEPT CALIF.)
-
26030D26030-1828 HARNESS, MAIN (CALIF. ONLY)HARNESS, MAIN (CALIF. ONLY)
-
2700227002-1086 RELAY, ASSYRELAY, ASSY
-
27002A27002-1101 RELAY, ASSY, TURN SIGNALRELAY, ASSY, TURN SIGNAL
-
2700327003-1421 HORNHORN
-
4901649016-1177 COVER, SEAL, FUSECOVER, SEAL, FUSE
-
9200992009-1197 SCREW, TAPPING, 5X14SCREW, TAPPING, 5X14
-
9201592015-1700 NUTNUT
-
9203792037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
92037A92037-1903 CLAMP, SPEED, L=80.5CLAMP, SPEED, L=80.5
-
9207292072-1195 BAND, L=202BAND, L=202
-
9216092160-1650 DAMPER, JUNCTION BOXDAMPER, JUNCTION BOX
-
9217092170-1067 CLAMPCLAMP
-
92170A92170-1494 CLAMP, HARNESSCLAMP, HARNESS
-
9217192171-1269 CLAMP, HARNESSCLAMP, HARNESS
-
92171A92171-1279 CLAMPCLAMP
