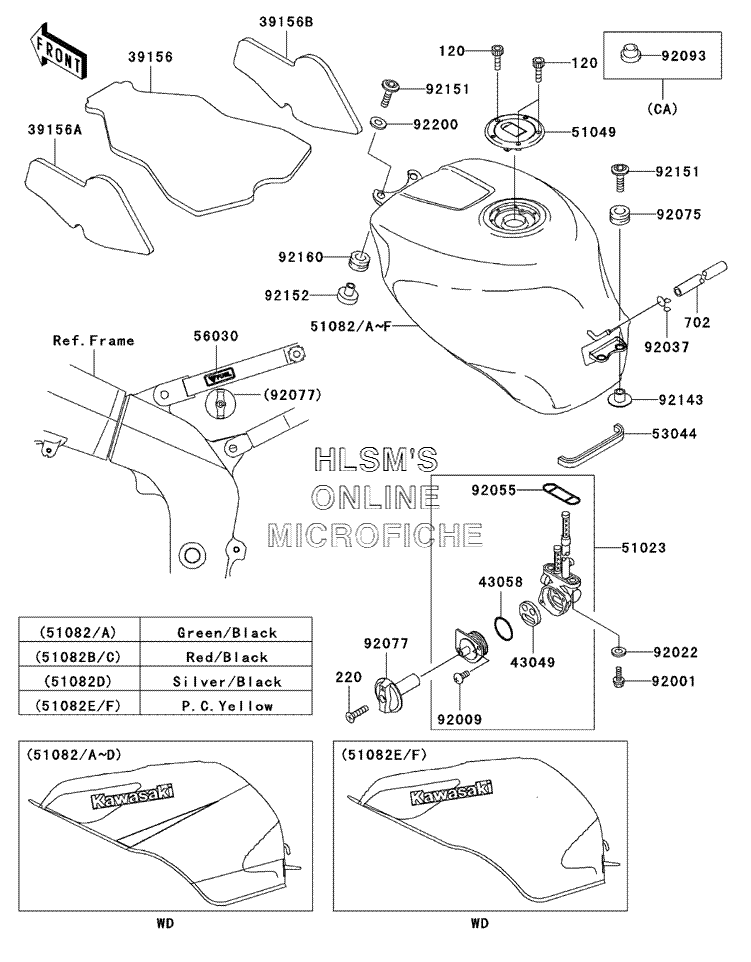

FUEL TANK для Kawasaki NINJA ZX-6R - 2002 года выпуска

  • №
    Артикул
    Название
  • 39156
    39156-1612 PAD, FUEL TANK, CENTER
    PAD, FUEL TANK, CENTER
  • 39156A
    39156-1613 PAD, FUEL TANK (LEFT)
    PAD, FUEL TANK (LEFT)
  • 39156B
    39156-1614 PAD, FUEL TANK (RIGHT)
    PAD, FUEL TANK (RIGHT)
  • 43049
    43049-1075 PACKING, TAP VALVE
    PACKING, TAP VALVE
  • 43058
    43058-1083 RING, TAP LEVER
    RING, TAP LEVER
  • 51023
    51023-1237 TAP, ASSY, FUEL
    TAP, ASSY, FUEL
  • 51049
    51049-1127 CAP, TANK, FUEL
    CAP, TANK, FUEL
  • 51082
    51082-5134-226 TANK, COMP, FUEL (GREEN/BLACK) (EXCEPT CALIF.)
    TANK, COMP, FUEL (GREEN/BLACK) (EXCEPT CALIF.)
  • 51082A
    51082-5135-226 TANK, COMP, FUEL (GREEN/BLACK) (CALIF. ONLY)
    TANK, COMP, FUEL (GREEN/BLACK) (CALIF. ONLY)
  • 51082B
    51082-5157-240 TANK, COMP, FUEL (RED/BLACK) (US ONLY)
    TANK, COMP, FUEL (RED/BLACK) (US ONLY)
  • 51082C
    51082-5158-240 TANK, COMP, FUEL (RED/BLACK) (CALIF. ONLY)
    TANK, COMP, FUEL (RED/BLACK) (CALIF. ONLY)
  • 51082D
    51082-5190-UH TANK, COMP, FUEL (SILVER/BLACK) (CANADA ONLY)
    TANK, COMP, FUEL (SILVER/BLACK) (CANADA ONLY)
  • 51082E
    51082-5195-1B TANK, COMP, FUEL (P.C.YELLOW) (EXCEPT CALIF.)
    TANK, COMP, FUEL (P.C.YELLOW) (EXCEPT CALIF.)
  • 120
    120S0516 BOLT, SOCKET
    BOLT, SOCKET
  • 220
    220C0416 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 702
    702A06520 TUBE, RUBBER, 6X520
    TUBE, RUBBER, 6X520
  • 51082F
    51082-5196-1B TANK, COMP, FUEL (P.C.YELLOW) (CALIF. ONLY)
    TANK, COMP, FUEL (P.C.YELLOW) (CALIF. ONLY)
  • 53044
    53044-1296 TRIM
    TRIM
  • 56030
    56030-1195 LABEL, FUEL TAP
    LABEL, FUEL TAP
  • 92001
    92001-1524 BOLT, 6X25
    BOLT, 6X25
  • 92009
    92009-1386 SCREW, 3X8
    SCREW, 3X8
  • 92022
    92022-183 WASHER, 6.2X11X1.5
    WASHER, 6.2X11X1.5
  • 92037
    92037-010 CLAMP, TUBE
    CLAMP, TUBE
  • 92055
    92055-1112 O-RING, FUEL TAP PACKING
    O-RING, FUEL TAP PACKING
  • 92075
    92075-209 DAMPER
    DAMPER
  • 92077
    92077-1123 KNOB, FUEL TAP
    KNOB, FUEL TAP
  • 92093
    92093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)
    SEAL, FUEL TANK CAP (CALIF. ONLY)
  • 92143
    92143-1515 COLLAR
    COLLAR
  • 92151
    92151-1835 BOLT, SOCKET, 6X35
    BOLT, SOCKET, 6X35
  • 92152
    92152-1266 COLLAR
    COLLAR
  • 92160
    92160-1162 DAMPER
    DAMPER
  • 92200
    92200-1087 WASHER, 6.5X22X1.6
    WASHER, 6.5X22X1.6
