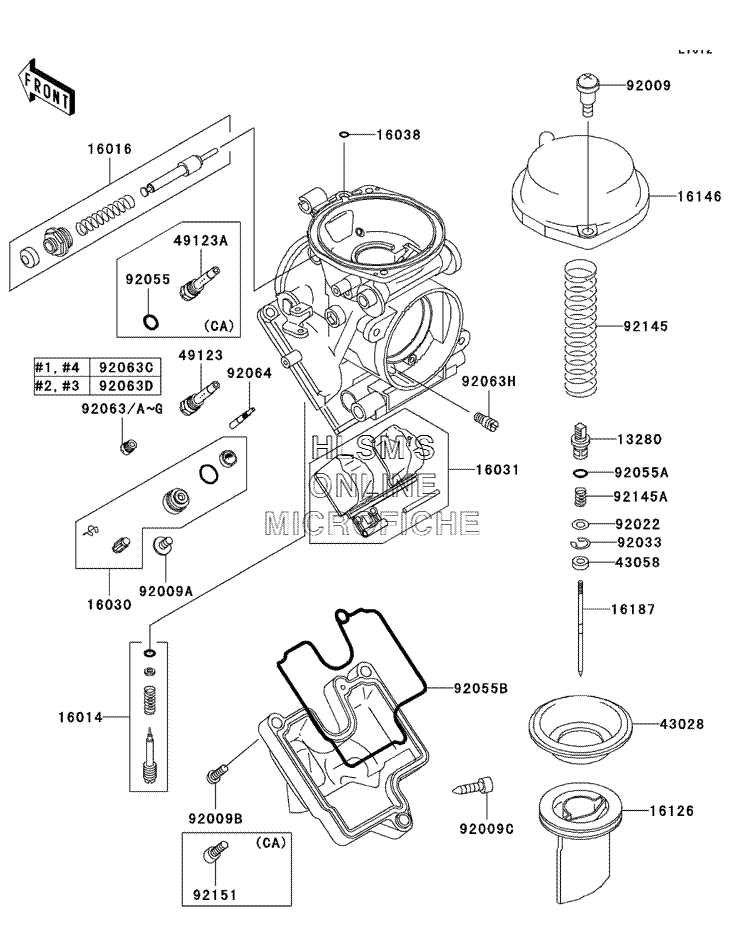

CARBURETOR PARTS для Kawasaki NINJA ZX-6R - 2002 года выпуска

  • №
    Артикул
    Название
  • 13280
    13280-1095 HOLDER
    HOLDER
  • 16014
    16014-1100 SCREW, PILOT AIR
    SCREW, PILOT AIR
  • 16016
    16016-1107 PLUNGER, STARTER
    PLUNGER, STARTER
  • 16030
    16030-1088 VALVE, FLOAT, #1.5
    VALVE, FLOAT, #1.5
  • 16031
    16031-1096 FLOAT
    FLOAT
  • 16038
    16038-022 GASKET, "O"RING
    GASKET, "O"RING
  • 16126
    16126-1394 VALVE, VACUUM
    VALVE, VACUUM
  • 16146
    16146-1197 COVER, ASSY, MIXING
    COVER, ASSY, MIXING
  • 16187
    16187-1135 NEEDLE, JET, 5EI10
    NEEDLE, JET, 5EI10
  • 43028
    43028-1086 DIAPHRAGM, VACUUM VALVE
    DIAPHRAGM, VACUUM VALVE
  • 43058
    43058-1094 RING
    RING
  • 49123
    49123-1051 HOLDER, MAIN JET (EXCEPT CALIF.)
    HOLDER, MAIN JET (EXCEPT CALIF.)
  • 49123A
    49123-1052 HOLDER, MAIN JET (CALIF. ONLY)
    HOLDER, MAIN JET (CALIF. ONLY)
  • 92009
    92009-1850 SCREW, MIXING COVER
    SCREW, MIXING COVER
  • 92009A
    92009-1853 SCREW, FLOAT VALVE
    SCREW, FLOAT VALVE
  • 92009B
    92009-1854 SCREW, FLOAT CHAMBER (EXCEPT CALIF.)
    SCREW, FLOAT CHAMBER (EXCEPT CALIF.)
  • 92009C
    92009-1937 SCREW, DRAIN
    SCREW, DRAIN
  • 92022
    92022-1123 WASHER, JET NEEDLE
    WASHER, JET NEEDLE
  • 92033
    92033-1299 RING, SNAP
    RING, SNAP
  • 92055
    92055-1084 O-RING (CALIF. ONLY)
    O-RING (CALIF. ONLY)
  • 92055A
    92055-1093 O-RING, DRAIN PLUG
    O-RING, DRAIN PLUG
  • 92055B
    92055-1588 O-RING, FLOAT CHAMBER
    O-RING, FLOAT CHAMBER
  • 92063
    92063-1438 JET, MAIN, #A147.5 (OPT)
    JET, MAIN, #A147.5 (OPT)
  • 92063A
    92063-1440 JET, MAIN, #A150 (OPT)
    JET, MAIN, #A150 (OPT)
  • 92063B
    92063-1441 JET, MAIN, #A152.5 (OPT)
    JET, MAIN, #A152.5 (OPT)
  • 92063C
    92063-1442 JET, MAIN, #A155
    JET, MAIN, #A155
  • 92063D
    92063-1443 JET, MAIN, #A157.5
    JET, MAIN, #A157.5
  • 92063E
    92063-1455 JET, MAIN, #A160 (OPT)
    JET, MAIN, #A160 (OPT)
  • 92063F
    92063-1456 JET, MAIN, #A162.5 (OPT)
    JET, MAIN, #A162.5 (OPT)
  • 92063G
    92063-1457 JET, MAIN, #A165 (OPT)
    JET, MAIN, #A165 (OPT)
  • 92063H
    92063-1471 JET, MAIN, #A125
    JET, MAIN, #A125
  • 92064
    92064-1195 JET, PILOT, #12.5
    JET, PILOT, #12.5
  • 92145
    92145-1182 SPRING, VACUUM VALVE
    SPRING, VACUUM VALVE
  • 92145A
    92145-1183 SPRING
    SPRING
  • 92151
    92151-1406 BOLT, SOCKET, FLOAT CHAMBER (CALIF. ONLY)
    BOLT, SOCKET, FLOAT CHAMBER (CALIF. ONLY)
