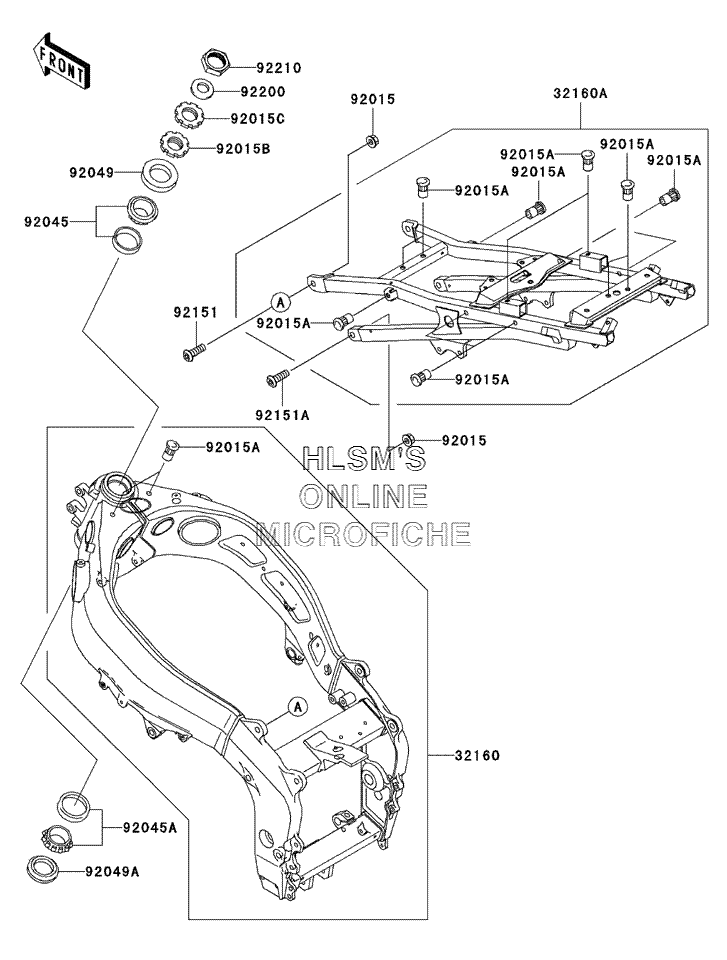

FRAME для Kawasaki NINJA ZX-6R - 2002 года выпуска
-
№АртикулНазвание
-
3216032160-1621-TX FRAME, COMP, AL, FRONT (SILVER)FRAME, COMP, AL, FRONT (SILVER)
-
32160A32160-1671-TX FRAME, COMP, AL, REAR (SILVER)FRAME, COMP, AL, REAR (SILVER)
-
9201592015-1021 NUT, 10MMNUT, 10MM
-
92015A92015-1791 NUT, POP, 6MM, L=15NUT, POP, 6MM, L=15
-
92015B92015-1803 NUT, 25MMNUT, 25MM
-
92015C92015-1810 NUT, 25MMNUT, 25MM
-
9204592045-1382 BEARING, BALL, SAC2547, 2BEARING, BALL, SAC2547, 2
-
92045A92045-1384 BEARING, BALL, SF07A17PX1V1BEARING, BALL, SF07A17PX1V1
-
9204992049-1313 SEAL, OIL, XMH33 70 6.4J, ASEAL, OIL, XMH33 70 6.4J, A
-
92049A92049-1383 SEAL, OIL, XMHE 43 55 4JSEAL, OIL, XMHE 43 55 4J
-
9215192151-1782 BOLT, SOCKET, 10X30BOLT, SOCKET, 10X30
-
92151A92151-1786 BOLT, SOCKET, 10X35BOLT, SOCKET, 10X35
-
9220092200-1126 WASHER, 22.5X36X3.2WASHER, 22.5X36X3.2
-
9221092210-1202 NUT, 22MMNUT, 22MM
