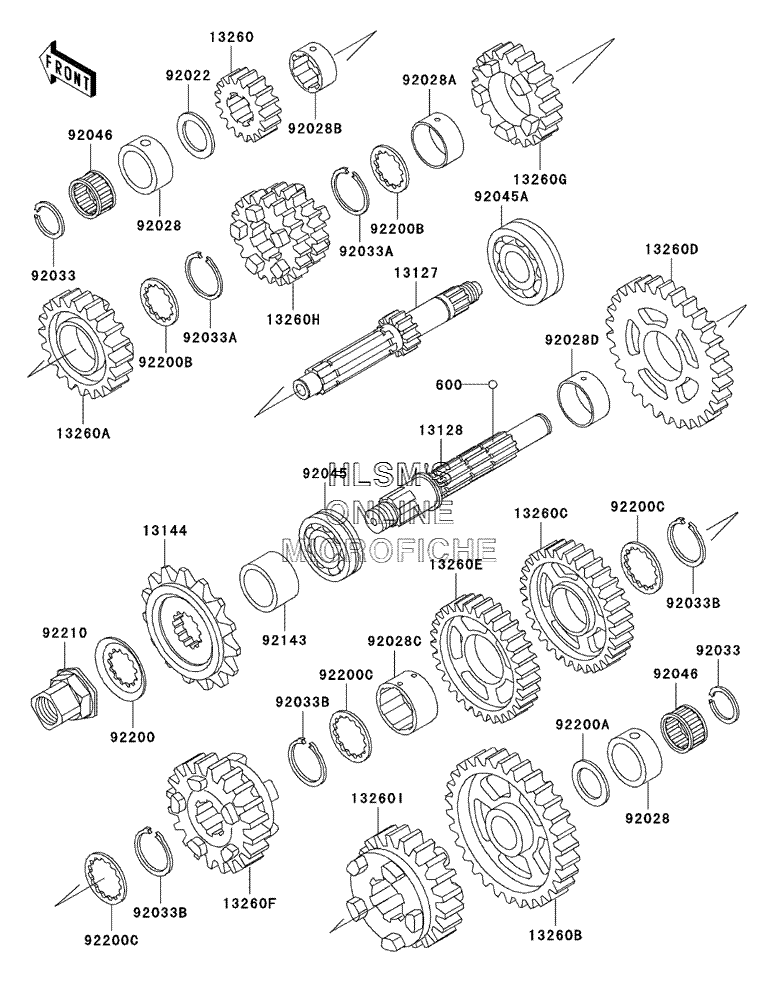

TRANSMISSION для Kawasaki NINJA ZX-6R - 2002 года выпуска
-
№АртикулНазвание
-
600600A0500 BALL, STEEL, 5/32"BALL, STEEL, 5/32"
-
1312713127-1281 SHAFT, TRANSMISSION INPUTSHAFT, TRANSMISSION INPUT
-
1312813128-1207 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1314413144-1288 SPROCKET, OUTPUT (15 TEETH)SPROCKET, OUTPUT (15 TEETH)
-
1326013260-1452 GEAR, INPUT 2ND (16 TEETH)GEAR, INPUT 2ND (16 TEETH)
-
13260A13260-1455 GEAR, INPUT TOP (24 TEETH)GEAR, INPUT TOP (24 TEETH)
-
13260B13260-1456 GEAR, OUTPUT LOW (38 TEETH)GEAR, OUTPUT LOW (38 TEETH)
-
13260C13260-1458 GEAR, OUTPUT 3RD (31 TEETH)GEAR, OUTPUT 3RD (31 TEETH)
-
13260D13260-1568 GEAR, OUTPUT 2ND (33 TEETH)GEAR, OUTPUT 2ND (33 TEETH)
-
13260E13260-1569 GEAR, OUTPUT 4TH (29 TEETH)GEAR, OUTPUT 4TH (29 TEETH)
-
13260F13260-1570 GEAR, OUTPUT TOP (26 TEETH)GEAR, OUTPUT TOP (26 TEETH)
-
13260G13260-1717 GEAR, INPUT 5TH (32 TEETH)GEAR, INPUT 5TH (32 TEETH)
-
13260H13260-1718 GEAR, INPUT 3RD AND 4TH (19/21 TEETH)GEAR, INPUT 3RD AND 4TH (19/21 TEETH)
-
13260I13260-1889 GEAR, OUTPUT 5TH (28 TEETH)GEAR, OUTPUT 5TH (28 TEETH)
-
9202292022-112 WASHER, 20.5X30X1, STEELWASHER, 20.5X30X1, STEEL
-
9202892028-1151 BUSHING, 27X34X18.6BUSHING, 27X34X18.6
-
92028A92028-1735 BUSHING, INPUT 5TH GEARBUSHING, INPUT 5TH GEAR
-
92028B92028-1736 BUSHING, INPUT TOP GEARBUSHING, INPUT TOP GEAR
-
92028C92028-1738 BUSHING, OUTPUT, 3RD AND 4THBUSHING, OUTPUT, 3RD AND 4TH
-
92028D92028-1739 BUSHING, OUTPUT, 2NDBUSHING, OUTPUT, 2ND
-
9203392033-015 RING, SNAP, 20MMRING, SNAP, 20MM
-
92033A92033-026 RING, SNAP, 24MMRING, SNAP, 24MM
-
92033B92033-1037 RING, SNAP, T=1.2RING, SNAP, T=1.2
-
9204592045-035 BEARING, BALL, 83993SH2, CSBEARING, BALL, 83993SH2, CS
-
92045A92045-1320 BEARING, BALL, 3TM, 6205NX3BEARING, BALL, 3TM, 6205NX3
-
9204692046-1283 BEARING, NEEDLE, PK20X27X17X2BEARING, NEEDLE, PK20X27X17X2
-
9214392143-1756 COLLAR, 25X32X13COLLAR, 25X32X13
-
9220092200-1065 WASHERWASHER
-
92200A92200-1238 WASHER, 20.3X30X2.3WASHER, 20.3X30X2.3
-
92200B92200-1239 WASHER, INPUT TOP AND 5THWASHER, INPUT TOP AND 5TH
-
92200C92200-1240 WASHER, T=1.5WASHER, T=1.5
-
9221092210-1098 NUT, SPROCKETNUT, SPROCKET
