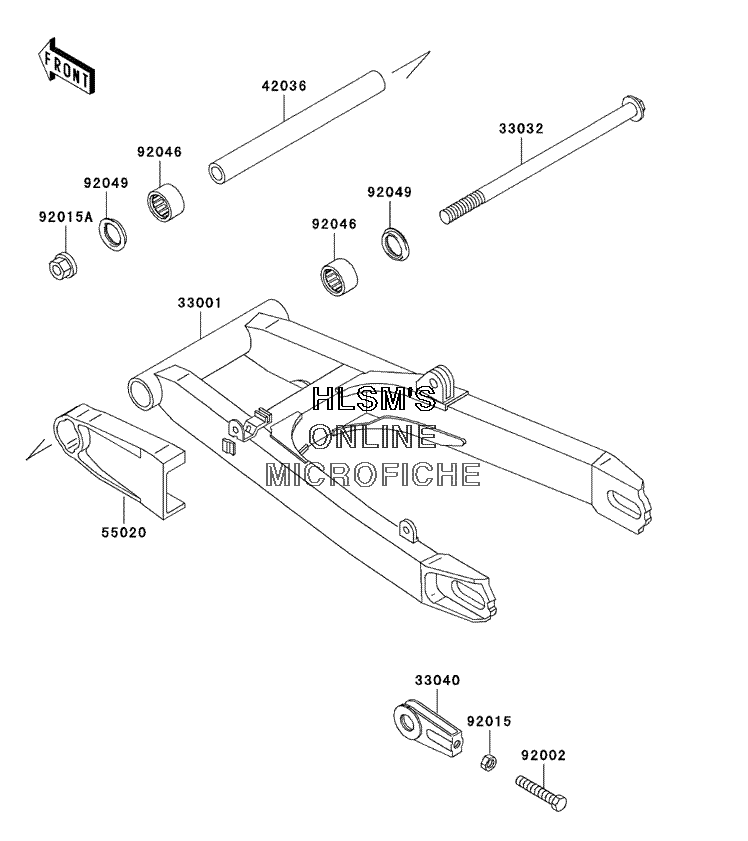

SUSPENSION - SWINGARM для Kawasaki NINJA 250R - 2002 года выпуска
-
№АртикулНазвание
-
3300133001-1301-CE ARM, COMP, SWING (SILVER NO.25)ARM, COMP, SWING (SILVER NO.25)
-
3303233032-1134 SHAFT, SWING ARMSHAFT, SWING ARM
-
3304033040-043 ADJUSTER, CHAINADJUSTER, CHAIN
-
4203642036-1218 SLEEVE, 16.1X22X213SLEEVE, 16.1X22X213
-
5502055020-1218 GUARD, CHAINGUARD, CHAIN
-
9200292002-1825 BOLT, 8X55BOLT, 8X55
-
9201592015-1364 NUT, 8MMNUT, 8MM
-
92015A92015-1946 NUT, FLANGED, 16MMNUT, FLANGED, 16MM
-
9204692046-1174 BEARING, NEEDLE, TA2230ZBEARING, NEEDLE, TA2230Z
-
9204992049-1289 SEAL, OIL, MHA22X29X5.7FSEAL, OIL, MHA22X29X5.7F
