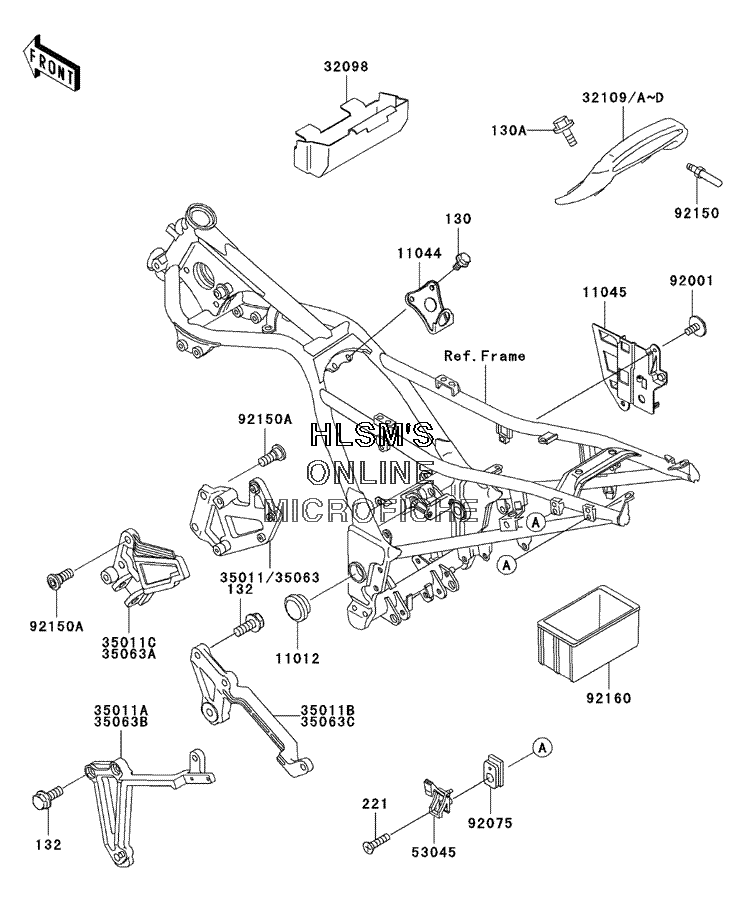

FRAME FITTINGS для Kawasaki NINJA 250R - 2002 года выпуска

  • №
    Артикул
    Название
  • 130
    130B0610 BOLT, FLANGED, 6X10
    BOLT, FLANGED, 6X10
  • 130A
    130B0820 BOLT, FLANGED, 8X20
    BOLT, FLANGED, 8X20
  • 132
    132G0820 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 221
    221E0625 SCREW, CSK, CROS
    SCREW, CSK, CROS
  • 11012
    11012-1459 CAP, SWING ARM BRACKET
    CAP, SWING ARM BRACKET
  • 11044
    11044-1828 BRACKET, AIR FILTER
    BRACKET, AIR FILTER
  • 11045
    11045-1578 BRACKET, ELECTRIC
    BRACKET, ELECTRIC
  • 32098
    32098-1076 CASE, TOOL
    CASE, TOOL
  • 32109C
    32109-1163-1B GRIP, FRAME, REAR (P.C.YELLOW)
    GRIP, FRAME, REAR (P.C.YELLOW)
  • 32109D
    32109-1163-7F GRIP, FRAME, REAR (L.GREEN)
    GRIP, FRAME, REAR (L.GREEN)
  • 35011
    35011-1355 STAY, FRONT (RIGHT)
    STAY, FRONT (RIGHT)
  • 35011A
    35011-1356 STAY, MUFFLER (LEFT)
    STAY, MUFFLER (LEFT)
  • 35011B
    35011-1357 STAY, MUFFLER (RIGHT)
    STAY, MUFFLER (RIGHT)
  • 35011C
    35011-1380 STAY, FRONT (LEFT)
    STAY, FRONT (LEFT)
  • 53045
    53045-1051 HOOK, ASSY., ROPE
    HOOK, ASSY., ROPE
  • 92001
    92001-1847 BOLT, 6X14 (BLACK)
    BOLT, 6X14 (BLACK)
  • 92075
    92075-1726 DAMPER, ROPE HOOK
    DAMPER, ROPE HOOK
  • 92150
    92150-1002 BOLT, BANK SENSOR
    BOLT, BANK SENSOR
  • 92150A
    92150-1839 BOLT, SOCKET, 8X20
    BOLT, SOCKET, 8X20
  • 92160
    92160-1500 DAMPER, BATTERY HOLDER
    DAMPER, BATTERY HOLDER
