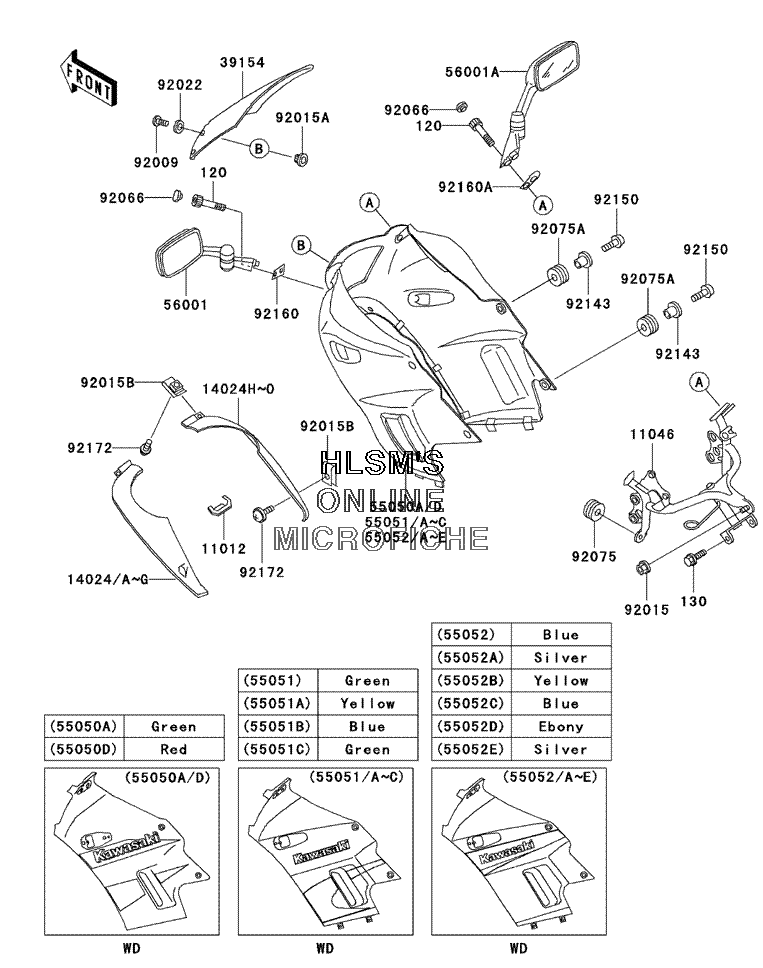

COWLING для Kawasaki NINJA 250R - 2002 года выпуска

  • №
    Артикул
    Название
  • 11012
    11012-1587 CAP, RADIATOR COVER
    CAP, RADIATOR COVER
  • 11046
    11046-1289 BRACKET, COWLING STAY
    BRACKET, COWLING STAY
  • 14024E
    14024-1580-1B COVER, RADIATOR (LEFT) P.C.YELLOW
    COVER, RADIATOR (LEFT) P.C.YELLOW
  • 14024G
    14024-1580-7F COVER, RADIATOR (LEFT) (L.GREEN)
    COVER, RADIATOR (LEFT) (L.GREEN)
  • 14024M
    14024-1581-1B COVER, RADIATOR (RIGHT) P.C.YELLOW
    COVER, RADIATOR (RIGHT) P.C.YELLOW
  • 14024O
    14024-1581-7F COVER, RADIATOR (RIGHT) (L.GREEN)
    COVER, RADIATOR (RIGHT) (L.GREEN)
  • 39154
    39154-1083 WINDSHIELD
    WINDSHIELD
  • 55051
    55051-5100-7F COWLING, ASSY., UPPER (L.GREEN)
    COWLING, ASSY., UPPER (L.GREEN)
  • 55051A
    55051-5102-1B COWLING, ASSY., UPPER (P.C.YELLOW)
    COWLING, ASSY., UPPER (P.C.YELLOW)
  • 120
    120S0840 BOLT, SOCKET, 8X40 (BLACK)
    BOLT, SOCKET, 8X40 (BLACK)
  • 130
    130J0610 BOLT, FLANGED
    BOLT, FLANGED
  • 56001
    56001-1337 MIRROR, ASSY. (LEFT)
    MIRROR, ASSY. (LEFT)
  • 56001A
    56001-1338 MIRROR, ASSY. (RIGHT)
    MIRROR, ASSY. (RIGHT)
  • 92009
    92009-1652 SCREW, 5X12
    SCREW, 5X12
  • 92015
    92015-1174 NUT, CAP, 8MM (BLACK)
    NUT, CAP, 8MM (BLACK)
  • 92015A
    92015-1343 NUT, 5MM, COWLING
    NUT, 5MM, COWLING
  • 92015B
    92015-1602 NUT, 6MM
    NUT, 6MM
  • 92022
    92022-1521 WASHER, NYLON, 5.3X11.5X1.5
    WASHER, NYLON, 5.3X11.5X1.5
  • 92066
    92066-1312 PLUG
    PLUG
  • 92075
    92075-1067 DAMPER
    DAMPER
  • 92075A
    92075-1634 DAMPER
    DAMPER
  • 92143
    92143-1226 COLLAR (BLACK)
    COLLAR (BLACK)
  • 92150
    92150-1553 BOLT, SOCKET, 6X18
    BOLT, SOCKET, 6X18
  • 92160
    92160-1060 DAMPER, MIRROR (LEFT)
    DAMPER, MIRROR (LEFT)
  • 92160A
    92160-1061 DAMPER, MIRROR (RIGHT)
    DAMPER, MIRROR (RIGHT)
  • 92172
    92172-0002 SCREW, 6X18
    SCREW, 6X18
