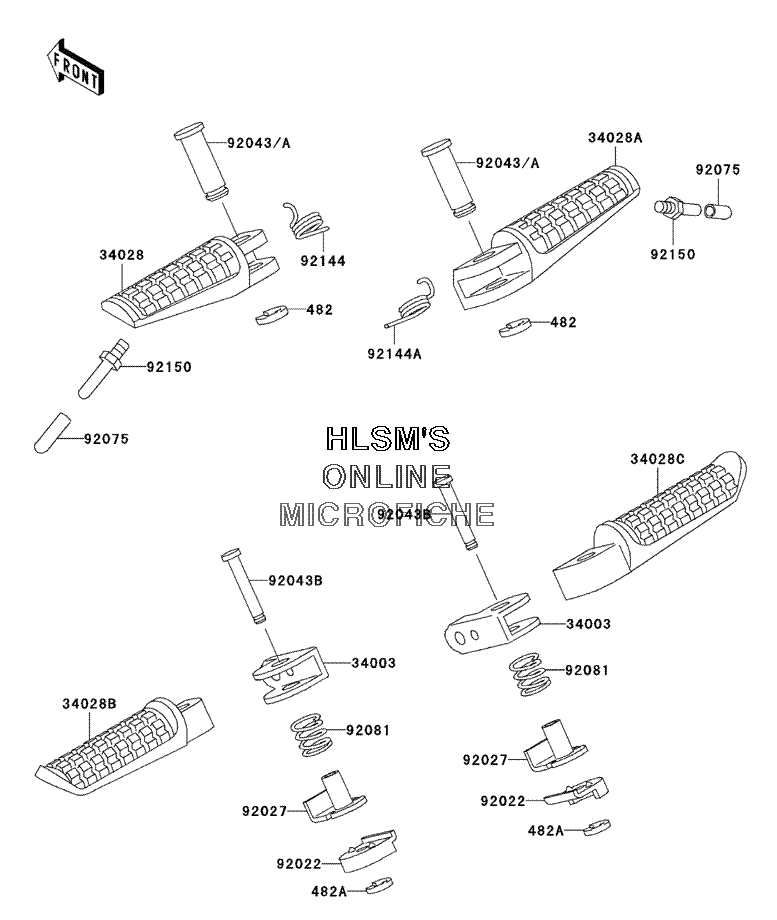

FOOTRESTS для Kawasaki NINJA 250R - 2002 года выпуска
-
№АртикулНазвание
-
482482L0100 CIRCLIP, TYPE, E, 10MMCIRCLIP, TYPE, E, 10MM
-
482A482L5000 CIRCLIP, TYPE, E, 5MMCIRCLIP, TYPE, E, 5MM
-
3400334003-1297 HOLDER, STEP, REARHOLDER, STEP, REAR
-
3402834028-1334 STEP, FRONT (LEFT)STEP, FRONT (LEFT)
-
34028A34028-1335 STEP, FRONT (RIGHT)STEP, FRONT (RIGHT)
-
34028B34028-1488 STEP, REAR (LEFT)STEP, REAR (LEFT)
-
34028C34028-1489 STEP, REAR (RIGHT)STEP, REAR (RIGHT)
-
9202292022-1661 WASHER, STOPPERWASHER, STOPPER
-
9202792027-1732 COLLAR, STEPCOLLAR, STEP
-
92043A92043-1145 PIN, 12X42.5PIN, 12X42.5
-
92043B92043-1294 PIN, 6X35.5PIN, 6X35.5
-
9207592075-1980 DAMPERDAMPER
-
9208192081-1612 SPRING, STEP, REARSPRING, STEP, REAR
-
9214492144-1567 SPRING, STEP RETURNSPRING, STEP RETURN
-
92144A92144-1568 SPRING, STEP RETURNSPRING, STEP RETURN
-
9215092150-1002 BOLT, BANK SENSORBOLT, BANK SENSOR
