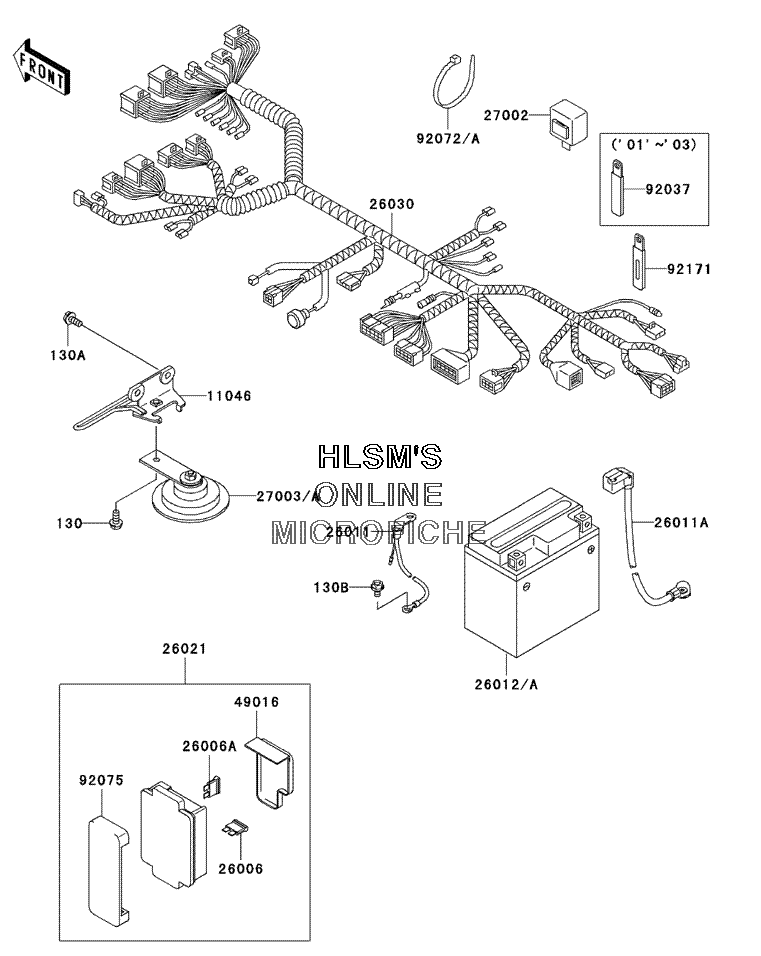

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki NINJA 250R - 2002 года выпуска

  • №
    Артикул
    Название
  • 130
    130C0612 BOLT, FLANGED, 6X12
    BOLT, FLANGED, 6X12
  • 130A
    130G0614 BOLT, FLANGED, 6X14
    BOLT, FLANGED, 6X14
  • 130B
    130V0610 BOLT, FLANGED, 6X10
    BOLT, FLANGED, 6X10
  • 11046
    11046-1233 BRACKET, HORN AND CABLE
    BRACKET, HORN AND CABLE
  • 26006
    26006-1067 FUSE, 30A, G
    FUSE, 30A, G
  • 26006A
    26006-1068 FUSE, 10A, R
    FUSE, 10A, R
  • 26011
    26011-0035 WIRE, LEAD, BATTERY (-)
    WIRE, LEAD, BATTERY (-)
  • 26011A
    26011-0042 WIRE, LEAD, BATTERY (+)
    WIRE, LEAD, BATTERY (+)
  • 26012A
    26012-1321 BATTERY, YTX7L, BS, 12V 6AH
    BATTERY, YTX7L, BS, 12V 6AH
  • 26021
    26021-1089 JUNCTION BOX
    JUNCTION BOX
  • 26030
    26030-1351 HARNESS, MAIN
    HARNESS, MAIN
  • 27002
    27002-1101 RELAY, ASSY., TURN SIGNAL
    RELAY, ASSY., TURN SIGNAL
  • 27003A
    27003-1288 HORN
    HORN
  • 49016
    49016-1177 COVER, SEAL, FUSE
    COVER, SEAL, FUSE
  • 92037
    92037-1069 CLAMP, L=60
    CLAMP, L=60
  • 92072
    92072-1195 BAND, L=202
    BAND, L=202
  • 92072A
    92072-1237 BAND, L=250
    BAND, L=250
  • 92075
    92075-1688 DAMPER, JUNCTION BOX
    DAMPER, JUNCTION BOX
