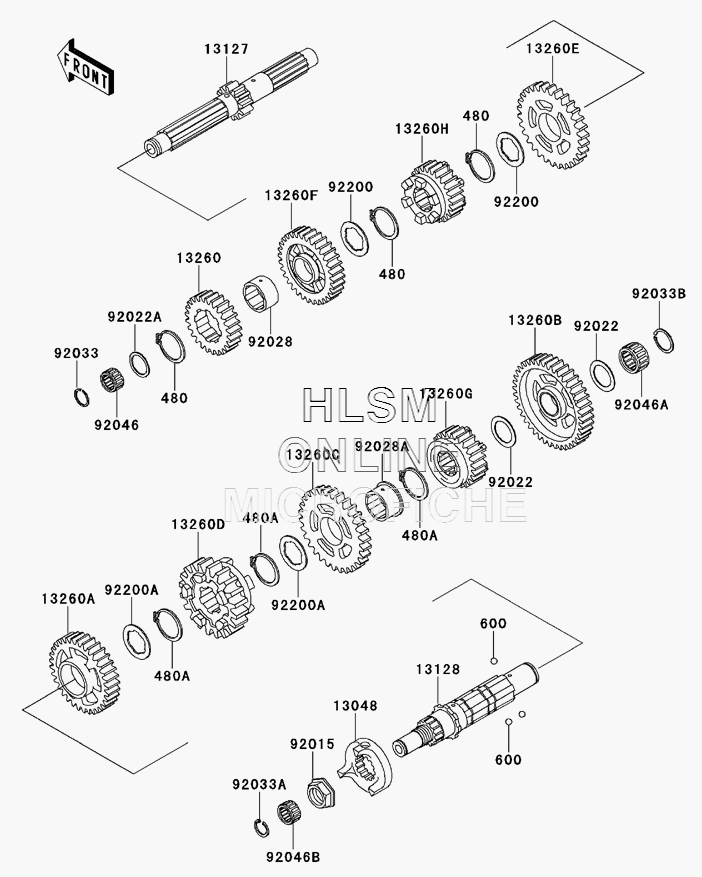

TRANSMISSION для Kawasaki Vulcan 1500 Nomad - 2001 года выпуска

  • №
    Артикул
    Название
  • 480
    480J2800 CIRCLIP, TYPE, C, 28MM
    CIRCLIP, TYPE, C, 28MM
  • 480A
    480J2900 CIRCLIP
    CIRCLIP
  • 600
    600A0500 BALL, STEEL, 5/32"
    BALL, STEEL, 5/32"
  • 13048
    13048-1086 CAM, DAMPER
    CAM, DAMPER
  • 13127
    13127-1260 SHAFT, TRANSMISSION INPUT
    SHAFT, TRANSMISSION INPUT
  • 13128
    13128-1227 SHAFT, TRANSMISSION OUTPUT
    SHAFT, TRANSMISSION OUTPUT
  • 13260
    13260-1695 GEAR, INPUT 2ND (22 TEETH)
    GEAR, INPUT 2ND (22 TEETH)
  • 13260A
    13260-1700 GEAR, OUTERPUT 2ND (35 TEETH)
    GEAR, OUTERPUT 2ND (35 TEETH)
  • 13260B
    13260-1728 GEAR, OUTERPUT LOW (40 TEETH)
    GEAR, OUTERPUT LOW (40 TEETH)
  • 13260C
    13260-1812 GEAR, OUTERPUT 3RD (31 TEETH)
    GEAR, OUTERPUT 3RD (31 TEETH)
  • 13260D
    13260-1813 GEAR, OUTERPUT TOP (25 TEETH)
    GEAR, OUTERPUT TOP (25 TEETH)
  • 13260E
    13260-1814 GEAR, INPUT 4TH (29 TEETH)
    GEAR, INPUT 4TH (29 TEETH)
  • 13260F
    13260-1815 GEAR, INPUT TOP (32 TEETH)
    GEAR, INPUT TOP (32 TEETH)
  • 13260G
    13260-1816 GEAR, OUTERPUT 4TH (28 TEETH)
    GEAR, OUTERPUT 4TH (28 TEETH)
  • 13260H
    13260-1849 GEAR, INPUT 3RD (26 TEETH)
    GEAR, INPUT 3RD (26 TEETH)
  • 92015
    92015-1610 NUT, 20MM
    NUT, 20MM
  • 92022
    92022-1855 WASHER, OUTERPUT, LOW
    WASHER, OUTERPUT, LOW
  • 92022A
    92022-212 WASHER, 22.3X35X1.6
    WASHER, 22.3X35X1.6
  • 92028
    92028-1752 BUSHING, INPUT TOP GEAR
    BUSHING, INPUT TOP GEAR
  • 92028A
    92028-1831 BUSHING, OUTERPUT 3RD GEAR
    BUSHING, OUTERPUT 3RD GEAR
  • 92033
    92033-025 RING, SNAP, 20X25.5X1.2
    RING, SNAP, 20X25.5X1.2
  • 92033A
    92033-032 RING, SNAP
    RING, SNAP
  • 92033B
    92033-1172 RING, SNAP, 25MM
    RING, SNAP, 25MM
  • 92046
    92046-031 BEARING, NEEDLE, FWF, 223014
    BEARING, NEEDLE, FWF, 223014
  • 92046A
    92046-1259 BEARING, NEEDLE, TK253515
    BEARING, NEEDLE, TK253515
  • 92046B
    92046-1260 BEARING, NEEDLE, FWF, 162222
    BEARING, NEEDLE, FWF, 162222
  • 92200
    92200-1240 WASHER, T=1.5
    WASHER, T=1.5
  • 92200A
    92200-1381 WASHER, 30.3X40X1.5
    WASHER, 30.3X40X1.5
