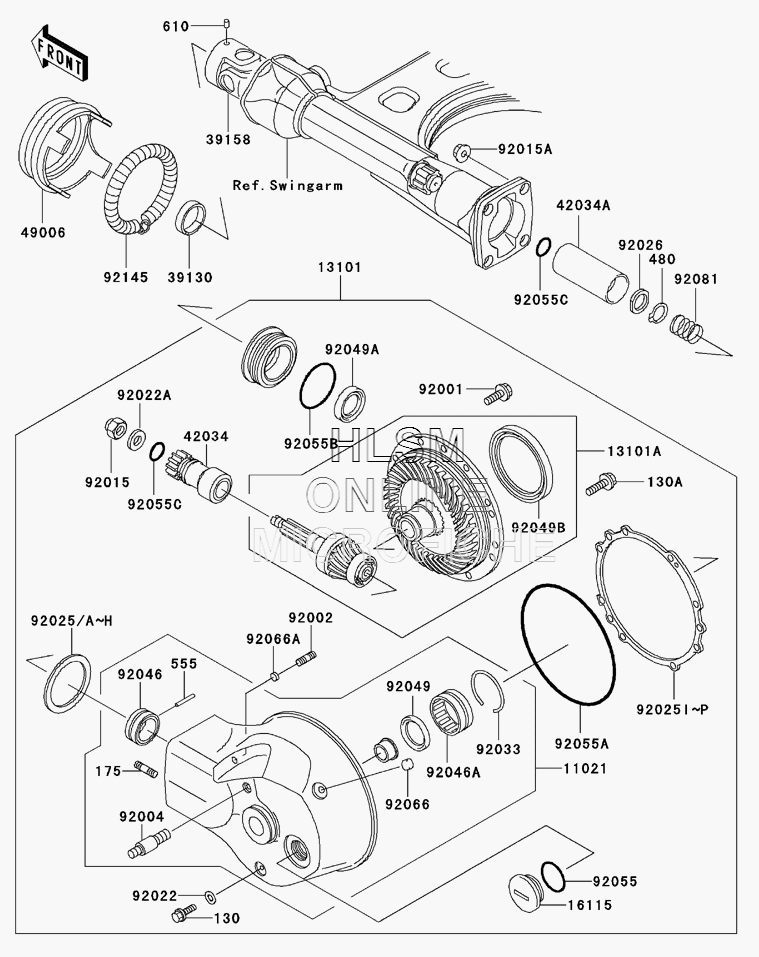

DRIVE SHAFT/FINAL GEAR для Kawasaki Vulcan 1500 Nomad - 2001 года выпуска
-
№АртикулНазвание
-
1102111021-1116 CASE, ASSY., FINAL GEARCASE, ASSY., FINAL GEAR
-
1310113101-1242 GEAR, ASSY., FINALGEAR, ASSY., FINAL
-
13101A13101-5072 GEAR, ASSY., BEVE(LEFT, RIGHT) EARGEAR, ASSY., BEVE(LEFT, RIGHT) EAR
-
1611516115-1056 CAP, OIL FILLERCAP, OIL FILLER
-
3913039130-1002 SPRING, LEAFSPRING, LEAF
-
3915839158-1062 SHAFT, ASSY., DRIVESHAFT, ASSY., DRIVE
-
4203442034-1085 COUPLINGCOUPLING
-
42034A42034-1178 COUPLING, PROPELLER SHAFT, OUTERCOUPLING, PROPELLER SHAFT, OUTER
-
4900649006-1226 BOOT, PROPELLER SHAFTBOOT, PROPELLER SHAFT
-
9200192001-1778 BOLT, FLANGED, 10X23BOLT, FLANGED, 10X23
-
9200292002-1836 SCREW, SET, SOCKET, 8X18SCREW, SET, SOCKET, 8X18
-
9200492004-1047 STUD, REAR SHOCKABSORBERSTUD, REAR SHOCKABSORBER
-
9201592015-1059 NUT, 16MMNUT, 16MM
-
92015A92015-1649 NUT, 10MMNUT, 10MM
-
9202292022-1086 WASHER, 8.2X16X1WASHER, 8.2X16X1
-
92022A92022-1105 WASHER, 16X32X3.2WASHER, 16X32X3.2
-
9202592025-1733 SHIM, T=0.10SHIM, T=0.10
-
92025A92025-1734 SHIM, T=0.15SHIM, T=0.15
-
92025B92025-1735 SHIM, T=0.50SHIM, T=0.50
-
92025C92025-1736 SHIM, T=0.60SHIM, T=0.60
-
92025D92025-1737 SHIM, T=0.70SHIM, T=0.70
-
92025E92025-1738 SHIM, T=0.80SHIM, T=0.80
-
92025F92025-1739 SHIM, T=0.90SHIM, T=0.90
-
92025G92025-1740 SHIM, T=1.00SHIM, T=1.00
-
92025H92025-1741 SHIM, T=1.20SHIM, T=1.20
-
92025I92025-1783 SHIM, T=0.15SHIM, T=0.15
-
92025J92025-1784 SHIM, T=0.50SHIM, T=0.50
-
92025K92025-1785 SHIM, T=0.60SHIM, T=0.60
-
92025L92025-1786 SHIM, T=0.70SHIM, T=0.70
-
92025M92025-1787 SHIM, T=0.80SHIM, T=0.80
-
92025N92025-1788 SHIM, T=0.90SHIM, T=0.90
-
92025O92025-1789 SHIM, T=1.00SHIM, T=1.00
-
92025P92025-1790 SHIM, T=1.20SHIM, T=1.20
-
9202692026-1085 SPACER, PROPELLER SHAFTSPACER, PROPELLER SHAFT
-
9203392033-1074 RING, SNAP, 52MMRING, SNAP, 52MM
-
9204692046-1168 BEARING, NEEDLE, RNA4904RDBEARING, NEEDLE, RNA4904RD
-
92046A92046-1169 BEARING, NEEDLE, 38NQ5020WDBEARING, NEEDLE, 38NQ5020WD
-
9204992049-1025 SEAL, OIL, S, 35477HSSEAL, OIL, S, 35477HS
-
92049A92049-1248 SEAL, OILSEAL, OIL
-
92049B92049-1280 SEAL, OILSEAL, OIL
-
130130N0812 BOLT, FLANGEDBOLT, FLANGED
-
130A130Y0825 BOLT, FLANGEDBOLT, FLANGED
-
175175G1025 BOLT, STUD, FINEBOLT, STUD, FINE
-
480480J2600 CIRCLIP, TYPE, C, 26MMCIRCLIP, TYPE, C, 26MM
-
555555A0428 PIN, SPRINGPIN, SPRING
-
610610A0406 ROLLER, 4X6ROLLER, 4X6
-
9205592055-049 O-RING, 31.7X2.4O-RING, 31.7X2.4
-
92055A92055-1165 O-RING, 154MMO-RING, 154MM
-
92055B92055-1327 O-RING, 67.6X3.5O-RING, 67.6X3.5
-
92055C92055-1646 O-RINGO-RING
-
9206692066-1110 PLUGPLUG
-
92066A92066-1272 PLUG, 6.2X3PLUG, 6.2X3
-
9208192081-1183 SPRING, PROPELLER SHAFTSPRING, PROPELLER SHAFT
-
9214592145-1162 SPRING, BOOTSPRING, BOOT
