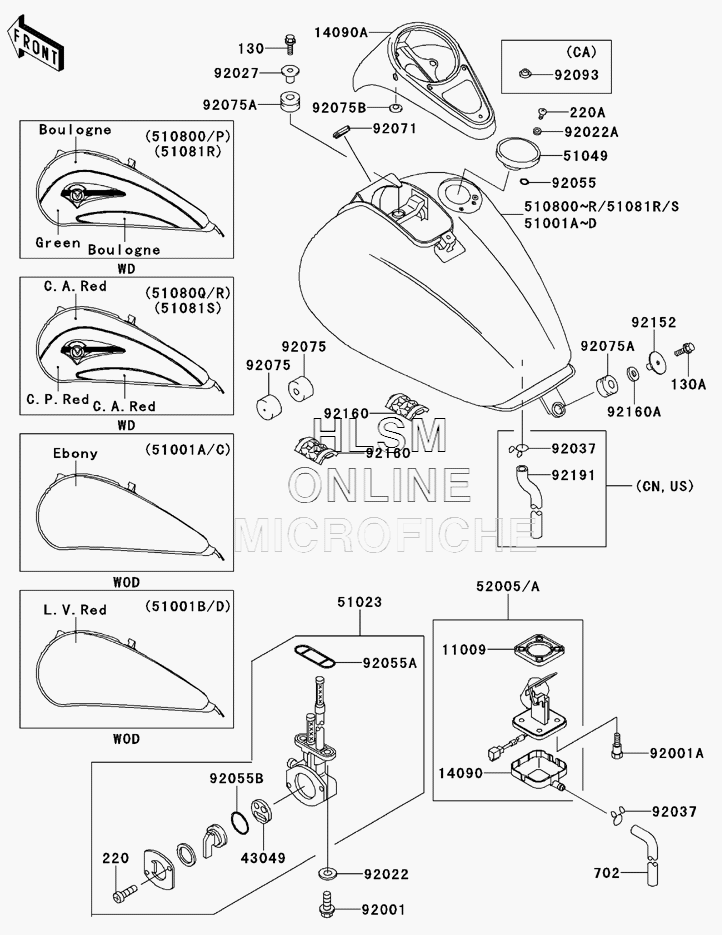

FUEL TANK для Kawasaki Vulcan 1500 Nomad - 2001 года выпуска

  • №
    Артикул
    Название
  • 11009
    11009-1656 GASKET, FUEL GAUGE
    GASKET, FUEL GAUGE
  • 14090
    14090-1624 COVER, FUEL GAUGE
    COVER, FUEL GAUGE
  • 14090A
    14090-1674 COVER, METER
    COVER, METER
  • 43049
    43049-1066 PACKING, TAP VALVE
    PACKING, TAP VALVE
  • 51001B
    51001-1549-P5 TANK, COMP, FUEL (L.V.RED) (US ONLY)
    TANK, COMP, FUEL (L.V.RED) (US ONLY)
  • 51001D
    51001-1558-P5 TANK, COMP, FUEL (L.V.RED) (CALIF. ONLY)
    TANK, COMP, FUEL (L.V.RED) (CALIF. ONLY)
  • 51023
    51023-1226 TAP, ASSY., FUEL
    TAP, ASSY., FUEL
  • 51049
    51049-1103 CAP, TANK, FUEL
    CAP, TANK, FUEL
  • 130
    130H0830 BOLT, FLANGED, 8X30
    BOLT, FLANGED, 8X30
  • 130A
    130J0835 BOLT, FLANGED, 8X35 (BLACK)
    BOLT, FLANGED, 8X35 (BLACK)
  • 220
    220B0308 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 220A
    220D0510 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 702
    702A07860 TUBE, RUBBER, 7X10X860
    TUBE, RUBBER, 7X10X860
  • 52005A
    52005-1129 GAUGE, FUEL
    GAUGE, FUEL
  • 92001
    92001-1524 BOLT, 6X25
    BOLT, 6X25
  • 92001A
    92001-1705 BOLT, FUEL GAUGE
    BOLT, FUEL GAUGE
  • 92022
    92022-183 WASHER, 6.2X11X1.5
    WASHER, 6.2X11X1.5
  • 92022A
    92022-1977 WASHER, 5.1X10X1.0
    WASHER, 5.1X10X1.0
  • 92027
    92027-1780 COLLAR, L=19.3
    COLLAR, L=19.3
  • 92037
    92037-147 CLAMP, TUBE (CALIF. ONLY)
    CLAMP, TUBE (CALIF. ONLY)
  • 92037
    92037-147 CLAMP, TUBE (US ONLY)
    CLAMP, TUBE (US ONLY)
  • 92055
    92055-1023 O-RING
    O-RING
  • 92055A
    92055-1112 O-RING, FUEL TAP PACKING
    O-RING, FUEL TAP PACKING
  • 92055B
    92055-1419 O-RING, TAP LEVER
    O-RING, TAP LEVER
  • 92071
    92071-1187 GROMMET
    GROMMET
  • 92075
    92075-125 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92075A
    92075-1736 DAMPER
    DAMPER
  • 92075B
    92075-261 DAMPER, RUBBER
    DAMPER, RUBBER
  • 92093
    92093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)
    SEAL, FUEL TANK CAP (CALIF. ONLY)
  • 92152
    92152-1100 COLLAR
    COLLAR
  • 92160
    92160-1907 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92160A
    92160-1941 DAMPER
    DAMPER
  • 92191
    92191-1272 TUBE, DRAIN (US ONLY)
    TUBE, DRAIN (US ONLY)
