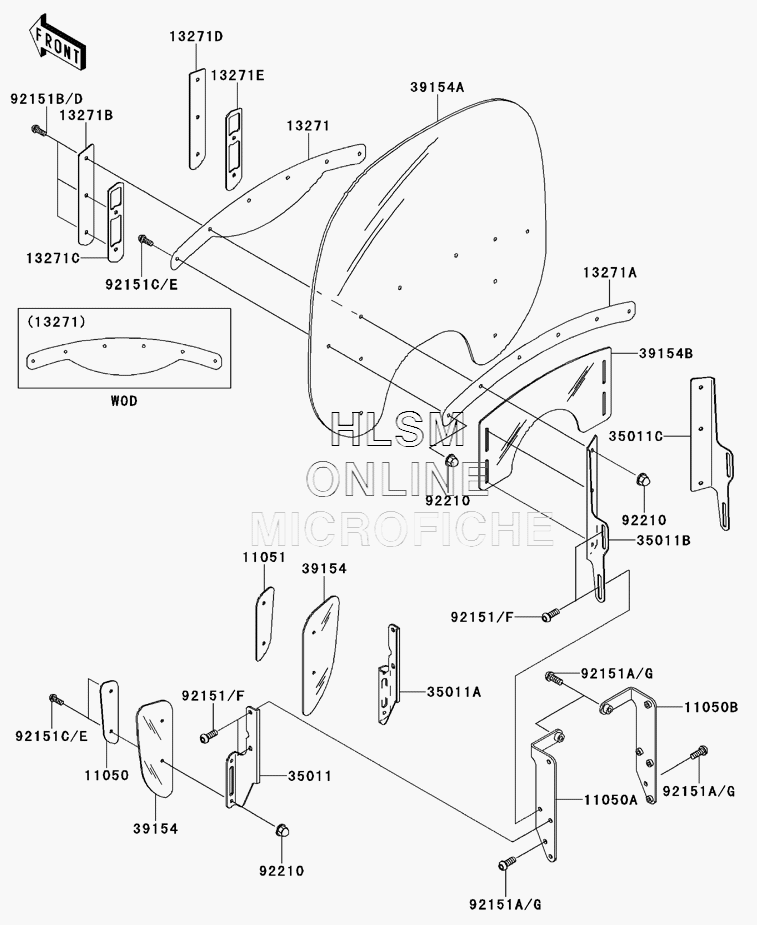

COWLING для Kawasaki Vulcan 1500 Nomad - 2001 года выпуска

  • №
    Артикул
    Название
  • 11050
    11050-1750 BRACKET, DEFLECTOR (LEFT)
    BRACKET, DEFLECTOR (LEFT)
  • 11050A
    11050-1891 BRACKET, WINDSHIELD (LEFT)
    BRACKET, WINDSHIELD (LEFT)
  • 11050B
    11050-1892 BRACKET, WINDSHIELD (RIGHT)
    BRACKET, WINDSHIELD (RIGHT)
  • 11051
    11051-1061 BRACKT, DEFRECTOR (RIGHT)
    BRACKT, DEFRECTOR (RIGHT)
  • 13271
    13271-1089 PLATE, WINDSHIELD, CENTER, OUTER
    PLATE, WINDSHIELD, CENTER, OUTER
  • 13271A
    13271-1090 PLATE, WINDSHIELD, CENTER, INNER
    PLATE, WINDSHIELD, CENTER, INNER
  • 13271B
    13271-1093 PLATE, WINDSHIELD, OUTER (LEFT)
    PLATE, WINDSHIELD, OUTER (LEFT)
  • 13271C
    13271-1094 PLATE, WINDSHIELD, INNER (LEFT)
    PLATE, WINDSHIELD, INNER (LEFT)
  • 13271D
    13271-1095 PLATE, WINDSHIELD, OUTER (RIGHT)
    PLATE, WINDSHIELD, OUTER (RIGHT)
  • 13271E
    13271-1096 PLATE, WINDSHIELD, INNER (RIGHT)
    PLATE, WINDSHIELD, INNER (RIGHT)
  • 35011
    35011-1916 STAY, DEFLECTOR (LEFT)
    STAY, DEFLECTOR (LEFT)
  • 35011A
    35011-1917 STAY, DEFLECTOR (RIGHT)
    STAY, DEFLECTOR (RIGHT)
  • 35011B
    35011-1944 STAY, WINDSHIELD (LEFT)
    STAY, WINDSHIELD (LEFT)
  • 35011C
    35011-1945 STAY, WINDSHIELD (RIGHT)
    STAY, WINDSHIELD (RIGHT)
  • 39154
    39154-1139 WINDSHIELD, DEFLECTOR
    WINDSHIELD, DEFLECTOR
  • 39154A
    39154-1141 WINDSHIELD, MAIN
    WINDSHIELD, MAIN
  • 39154B
    39154-1142 WINDSHIELD, SUB
    WINDSHIELD, SUB
  • 92151D
    92151-1750 BOLT, SOCKET, 6X20
    BOLT, SOCKET, 6X20
  • 92151E
    92151-1751 BOLT, SOCKET, 6X16
    BOLT, SOCKET, 6X16
  • 92151F
    92151-1752 BOLT, SOCKET, 8X16
    BOLT, SOCKET, 8X16
  • 92151G
    92151-1753 BOLT, SOCKET, 8X25
    BOLT, SOCKET, 8X25
  • 92210
    92210-1129 NUT, CAP, 6MM
    NUT, CAP, 6MM
