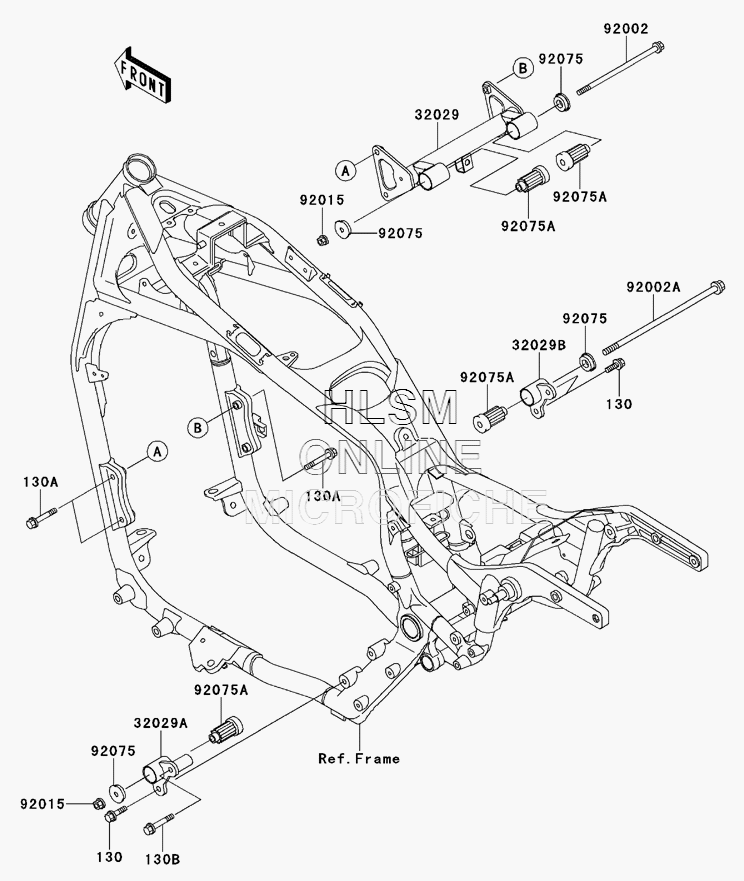

FRAME FITTINGS для Kawasaki Vulcan 1500 Nomad - 2001 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0825 BOLT, FLANGED, 8X25 (BLACK)
    BOLT, FLANGED, 8X25 (BLACK)
  • 130A
    130J0840 BOLT, FLANGED, 8X40
    BOLT, FLANGED, 8X40
  • 130B
    130J0860 BOLT, FLANGED
    BOLT, FLANGED
  • 32029
    32029-1985 BRACKET, ENGINE, FRONT
    BRACKET, ENGINE, FRONT
  • 32029A
    32029-1986 BRACKET, ENGINE, REAR (LEFT)
    BRACKET, ENGINE, REAR (LEFT)
  • 32029B
    32029-1987 BRACKET, ENGINE, REAR (RIGHT)
    BRACKET, ENGINE, REAR (RIGHT)
  • 92002
    92002-1206 BOLT, FLANGED, 10X285
    BOLT, FLANGED, 10X285
  • 92002A
    92002-1540 BOLT, FLANGED, 10X330
    BOLT, FLANGED, 10X330
  • 92015
    92015-1180 NUT, FLANGED, 10MM
    NUT, FLANGED, 10MM
  • 92075
    92075-1738 DAMPER, ENGINE BRACKET
    DAMPER, ENGINE BRACKET
  • 92075A
    92075-1739 DAMPER, ENGINE MOUNT, MAIN
    DAMPER, ENGINE MOUNT, MAIN
