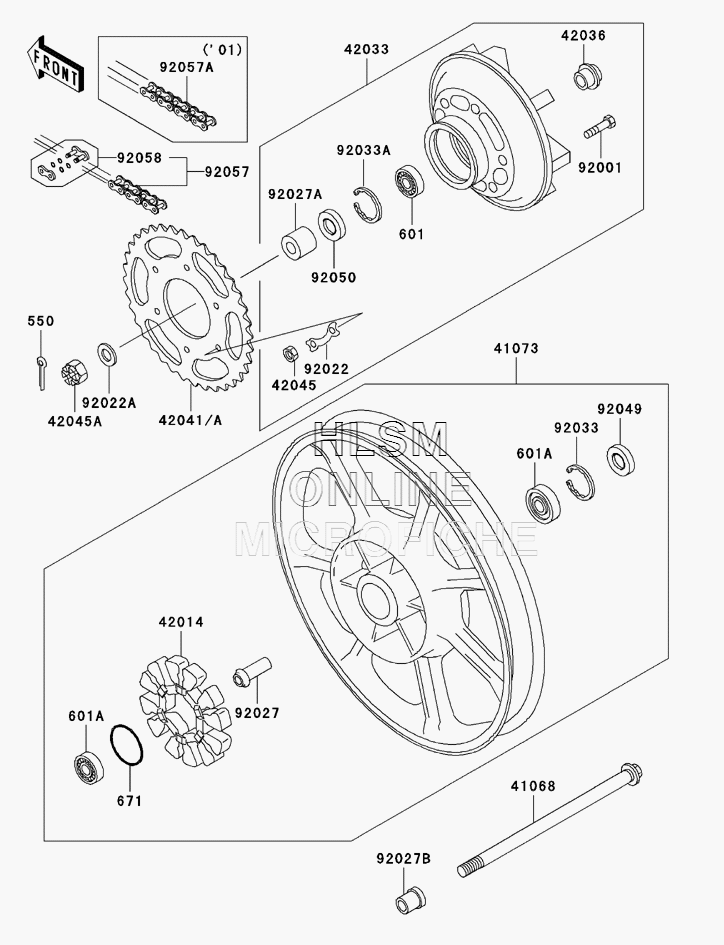

WHEEL - REAR W/ CHAIN для Kawasaki Police 1000 - 2001 года выпуска`
-
№АртикулНазвание
-
550550D4035 PIN, COTTER, 4.0X35PIN, COTTER, 4.0X35
-
601601B6206G BEARING, BALL, #6206G2BEARING, BALL, #6206G2
-
601A601B6304UU BEARING, BALL, #6304UUC3BEARING, BALL, #6304UUC3
-
671671B2565 O-RING, 65MMO-RING, 65MM
-
4106841068-1087 AXLE, REAR, L=300AXLE, REAR, L=300
-
4107341073-1551-DH WHEEL, ASSY., REAR (P.C.GRAY)WHEEL, ASSY., REAR (P.C.GRAY)
-
4201442014-033 DAMPER, REAR HUB SHOCK, "1000"DAMPER, REAR HUB SHOCK, "1000"
-
4203342033-1024 COUPLING, ASSY., REAR HUBCOUPLING, ASSY., REAR HUB
-
4203642036-1039 SLEEVE, L=33SLEEVE, L=33
-
4204142041-1058 SPROCKET, HUB (41 TEETH)SPROCKET, HUB (41 TEETH)
-
4204542045-005 NUT, 10MMNUT, 10MM
-
42045A42045-018 NUT, CASTLE, 18MMNUT, CASTLE, 18MM
-
9200192001-161 BOLT, 10X41BOLT, 10X41
-
9202292022-1212 WASHER, LOCKWASHER, LOCK
-
92022A92022-248 WASHER, 20.3X34X4.5WASHER, 20.3X34X4.5
-
9202792027-1286 COLLAR, L=89.5COLLAR, L=89.5
-
92027A92027-1287 COLLAR, 20X40X16.5COLLAR, 20X40X16.5
-
92027B92027-1288 COLLAR, L=31COLLAR, L=31
-
9203392033-1043 RING, SNAP, 52MMRING, SNAP, 52MM
-
92033A92033-1044 RING, SNAP, 62MMRING, SNAP, 62MM
-
9204992049-1061 SEAL, OIL, 28X52X5SEAL, OIL, 28X52X5
-
9205092050-027 SEAL, OIL, AJN40627SEAL, OIL, AJN40627
-
92057A92057-1492 CHAIN, DRIVE, EK630SZDOX98LCHAIN, DRIVE, EK630SZDOX98L
