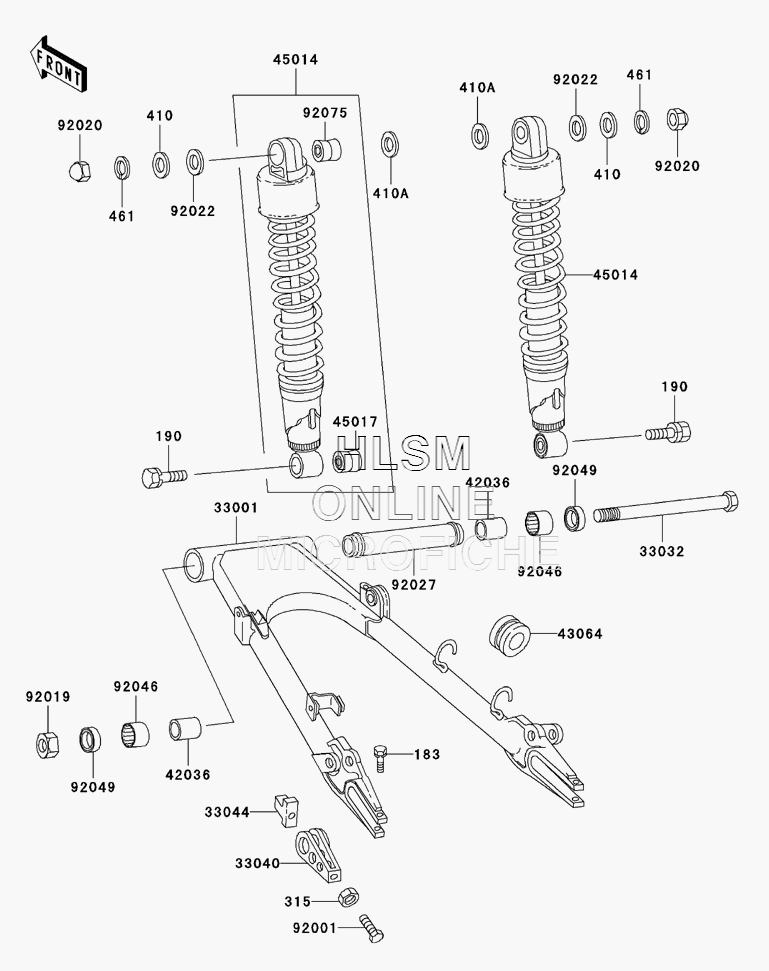

SUSPENSION - SWINGARM W/ SHOCK ABSORBER для Kawasaki Police 1000 - 2001 года выпуска`
-
№АртикулНазвание
-
183183G0840 BOLT, UPSET, WS, SMALLBOLT, UPSET, WS, SMALL
-
190190N1035 BOLT, UPSET, WSBOLT, UPSET, WS
-
315315B1000 NUT, HEX, FINE, 10MMNUT, HEX, FINE, 10MM
-
410410B1200 WASHER, PLAIN, SMALL, 12MMWASHER, PLAIN, SMALL, 12MM
-
410A410B1400 WASHER, PLAIN, SMALL, 14MMWASHER, PLAIN, SMALL, 14MM
-
461461F1200 WASHER, SPRING, 12MMWASHER, SPRING, 12MM
-
3300133001-4006 ARM, COMP, SWINGARM, COMP, SWING
-
3303233032-036 SHAFT, SWING ARMSHAFT, SWING ARM
-
3304033040-066 ADJUSTER, CHAINADJUSTER, CHAIN
-
3304433044-001 STOPPER, CHAIN ADJUSTERSTOPPER, CHAIN ADJUSTER
-
4203642036-1040 SLEEVE, SWING ARMSLEEVE, SWING ARM
-
4306443064-007 GROMMET, HOSE CLAMPGROMMET, HOSE CLAMP
-
4501445014-1174 SHOCKABSORBER, REARSHOCKABSORBER, REAR
-
4501745017-019 DAMPER, SHOCKABSORBER, LOWERDAMPER, SHOCKABSORBER, LOWER
-
9200192001-143 BOLT, 10X50BOLT, 10X50
-
9201992019-005 NUT, LOCK, 16MMNUT, LOCK, 16MM
-
9202092020-014 NUT, CAP, 12MMNUT, CAP, 12MM
-
9202292022-1239 WASHER, 12.4X28X2.3WASHER, 12.4X28X2.3
-
9202792027-1561 COLLAR, SWING ARMCOLLAR, SWING ARM
-
9204692046-1035 BEARING, NEEDLE, BHTM2530, 1BEARING, NEEDLE, BHTM2530, 1
-
9204992049-1060 SEAL, OIL, MH25334SEAL, OIL, MH25334
-
9207592075-1141 DAMPER, SHOCKABSORBERDAMPER, SHOCKABSORBER
