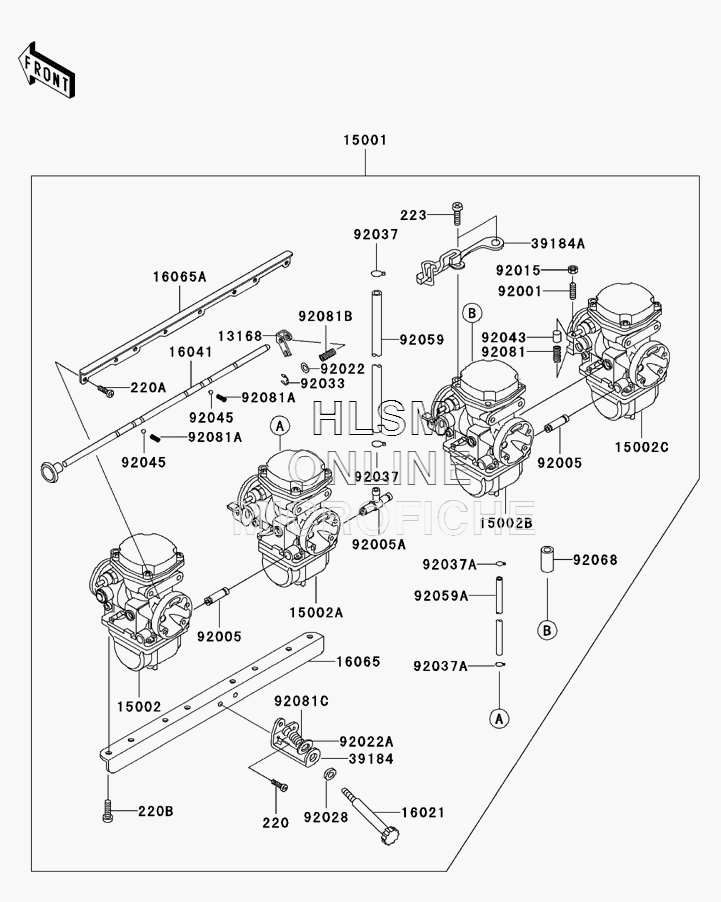

CARBURETOR для Kawasaki Police 1000 - 2001 года выпуска
-
№АртикулНазвание
-
220220B0508 SCREW, PAN, CROS, 5X8SCREW, PAN, CROS, 5X8
-
220A220B0510 SCREW, PAN, CROSSCREW, PAN, CROS
-
220B220B0614 SCREW, PAN, CROS, 6X14SCREW, PAN, CROS, 6X14
-
223223B0514 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
1316813168-1091 LEVER, CHOKELEVER, CHOKE
-
1500115001-1929 CARBURETOR, ASSY.CARBURETOR, ASSY.
-
1500215002-1258 CARBURETOR (LEFT/OUTSIDE)CARBURETOR (LEFT/OUTSIDE)
-
15002A15002-1259 CARBURETOR (LEFT/INSIDE)CARBURETOR (LEFT/INSIDE)
-
15002B15002-1260 CARBURETOR (RIGHT/INSIDE)CARBURETOR (RIGHT/INSIDE)
-
15002C15002-1261 CARBURETOR (RIGHT/OUTSIDE)CARBURETOR (RIGHT/OUTSIDE)
-
1602116021-1103 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
1604116041-1024 SHAFT, CARBURETOR, CHOKESHAFT, CARBURETOR, CHOKE
-
1606516065-1043 HOLDER, CARBURETOR, LOWERHOLDER, CARBURETOR, LOWER
-
16065A16065-1044 HOLDER, CARBURETOR, UPPERHOLDER, CARBURETOR, UPPER
-
3918439184-1007 BRACKET, ASSY., IDLING ADJUSTERBRACKET, ASSY., IDLING ADJUSTER
-
39184A39184-1013 BRACKET, ASSY., THROTTLE CABLEBRACKET, ASSY., THROTTLE CABLE
-
9200192001-1447 BOLT, ADJUSTINGBOLT, ADJUSTING
-
9200592005-1035 FITTING, FUEL, I, TYPEFITTING, FUEL, I, TYPE
-
92005A92005-1036 FITTING, FUEL, T, TYPEFITTING, FUEL, T, TYPE
-
9201592015-1119 NUT, THROTTLE VALVE ADJUSTINGNUT, THROTTLE VALVE ADJUSTING
-
9202292022-1255 WASHER, SPRINGWASHER, SPRING
-
92022A92022-1491 WASHER, THROTTLE STOP SCREWWASHER, THROTTLE STOP SCREW
-
9202892028-1266 BUSHING, IDLING ADJUSTERBUSHING, IDLING ADJUSTER
-
9203392033-1066 RING, SNAP, E, TYPERING, SNAP, E, TYPE
-
9203792037-1184 CLAMP, TUBECLAMP, TUBE
-
92037A92037-174 CLAMP, BREATHER TUBECLAMP, BREATHER TUBE
-
9204392043-1079 PIN, THROTTLE VALVE ADJUSTPIN, THROTTLE VALVE ADJUST
-
9204592045-1044 BALL, STEEL, 1/8"BALL, STEEL, 1/8"
-
9205992059-1187 TUBE, 7.5X12.5X250TUBE, 7.5X12.5X250
-
92059A92059-1188 TUBE, 5X9X150TUBE, 5X9X150
-
9206892068-006 PLUG, 12X25PLUG, 12X25
-
9208192081-1259 SPRING, THROTTLE VALVE ADJUSTSPRING, THROTTLE VALVE ADJUST
-
92081A92081-1260 SPRING, SHAFT STOPSPRING, SHAFT STOP
-
92081B92081-1364 SPRING, CHOKE SHAFTSPRING, CHOKE SHAFT
-
92081C92081-1377 SPRING, THROTTLE STOP SCREWSPRING, THROTTLE STOP SCREW
