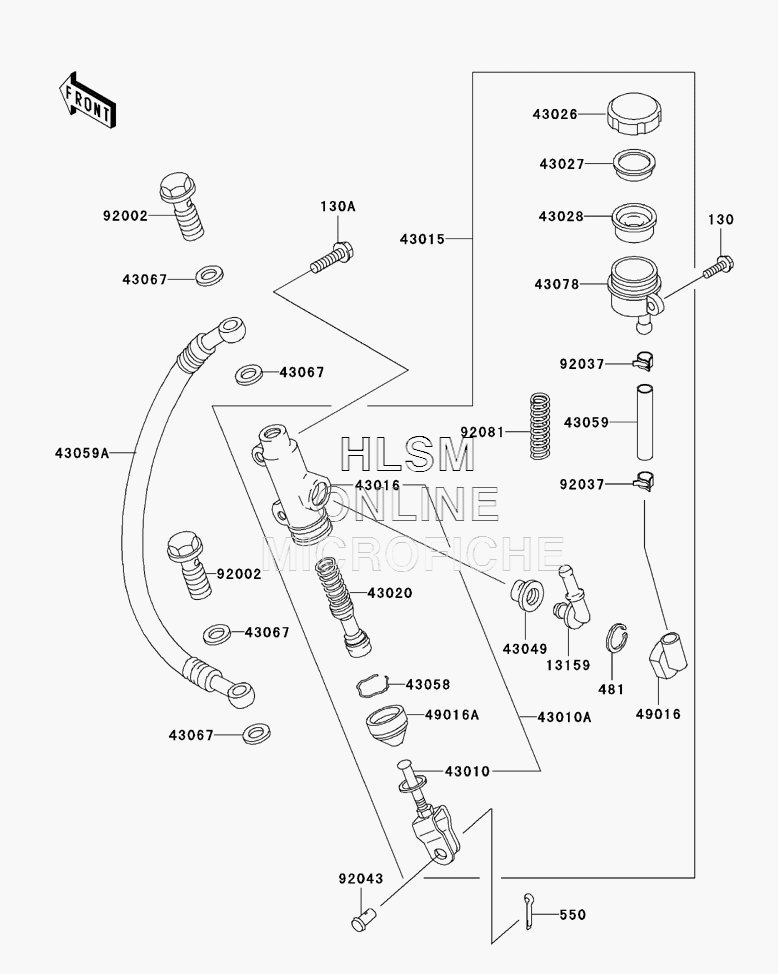

BRAKE - MASTER CYLINDER - REAR для Kawasaki Police 1000 - 2001 года выпуска

  • №
    Артикул
    Название
  • 130
    130B0620 BOLT, FLANGED, 6X20
    BOLT, FLANGED, 6X20
  • 130A
    130J0830 BOLT, FLANGED, 8X30
    BOLT, FLANGED, 8X30
  • 481
    481J2500 CIRCLIP, TYPE, C, 25MM
    CIRCLIP, TYPE, C, 25MM
  • 550
    550D2015 PIN, COTTER, 2.0X15
    PIN, COTTER, 2.0X15
  • 13159
    13159-1009 CONNECTOR
    CONNECTOR
  • 43010
    43010-1051 ROD, ASSY., BRAKE, REAR
    ROD, ASSY., BRAKE, REAR
  • 43010A
    43010-5006 ROD, ASSY., BRAKE, REAR/MASTER CYL
    ROD, ASSY., BRAKE, REAR/MASTER CYL
  • 43015
    43015-1134 CYLINDER, ASSY., MASTER, REAR
    CYLINDER, ASSY., MASTER, REAR
  • 43016
    43016-1101 CYLINDER, MASTER, REAR
    CYLINDER, MASTER, REAR
  • 43020
    43020-1036 PISTON, COMP, BRAKE
    PISTON, COMP, BRAKE
  • 43026
    43026-1016 CAP, BRAKE
    CAP, BRAKE
  • 43027
    43027-1005 PLATE, DIAPHRAGM
    PLATE, DIAPHRAGM
  • 43028
    43028-1016 DIAPHRAGM
    DIAPHRAGM
  • 43049
    43049-1008 PACKING
    PACKING
  • 43058
    43058-004 RING, ROD STOPPER
    RING, ROD STOPPER
  • 43059
    43059-1100 HOSE, BRAKE, REAR, L=138
    HOSE, BRAKE, REAR, L=138
  • 43059A
    43059-1786 HOSE, BRAKE, REAR
    HOSE, BRAKE, REAR
  • 43067
    43067-001 WASHER, 10.5X15X1.5
    WASHER, 10.5X15X1.5
  • 43078
    43078-1009 RESERVOIR
    RESERVOIR
  • 49016
    49016-1034 COVER, SEAL, MASTER CYLINDER
    COVER, SEAL, MASTER CYLINDER
  • 49016A
    49016-1048 COVER, SEAL, BRAKE PISTON
    COVER, SEAL, BRAKE PISTON
  • 92002
    92002-1888 BOLT, OIL, L=23
    BOLT, OIL, L=23
  • 92037
    92037-1391 CLAMP, BRAKE HOSE
    CLAMP, BRAKE HOSE
  • 92043
    92043-1013 PIN, 8X16
    PIN, 8X16
  • 92081
    92081-1335 SPRING, HOSE PROTECTER
    SPRING, HOSE PROTECTER
