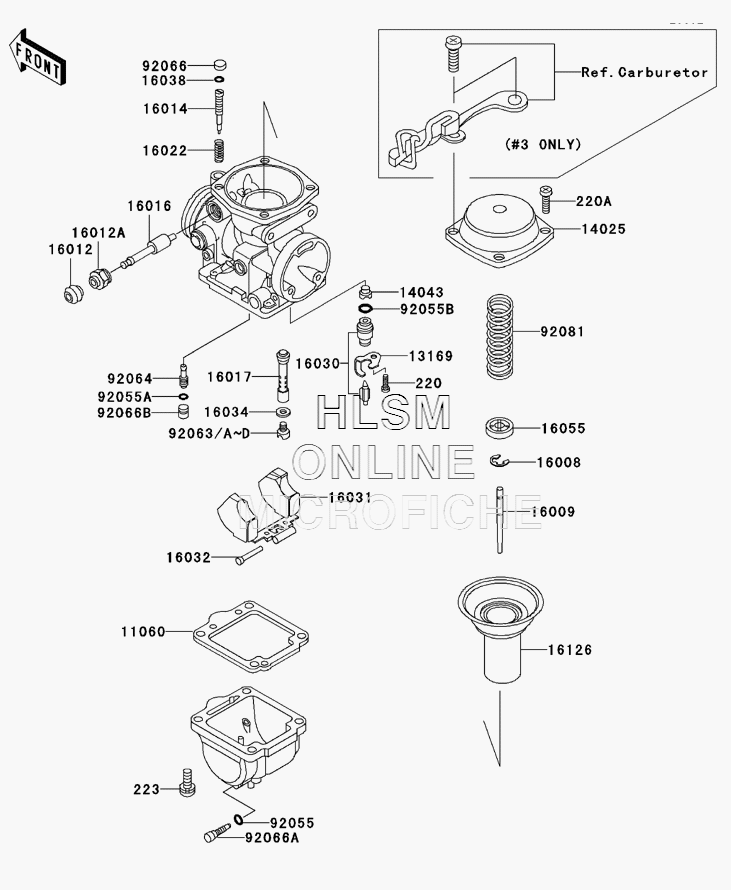

CARBURETOR PARTS для Kawasaki Police 1000 - 2001 года выпуска

  • №
    Артикул
    Название
  • 220
    220B0406 SCREW, PAN, CROS, 4X6
    SCREW, PAN, CROS, 4X6
  • 220A
    220B0508 SCREW, PAN, CROS, 5X8
    SCREW, PAN, CROS, 5X8
  • 223
    223B0516 SCREW, PAN, WS, CROS
    SCREW, PAN, WS, CROS
  • 11060
    11060-1607 GASKET
    GASKET
  • 13169
    13169-1482 PLATE, FLOAT VALVE
    PLATE, FLOAT VALVE
  • 14025
    14025-1395 TOP, CHAMBER, MIXING
    TOP, CHAMBER, MIXING
  • 14043
    14043-1010 FILTER, FLOAT VALVE
    FILTER, FLOAT VALVE
  • 16008
    16008-014 CLAMP, E, TYPE
    CLAMP, E, TYPE
  • 16009
    16009-1285 NEEDLE, JET, 5GN45
    NEEDLE, JET, 5GN45
  • 16012
    16012-1010 CAP, STARTER PLUNGER, RUBBER
    CAP, STARTER PLUNGER, RUBBER
  • 16012A
    16012-1011 CAP, STARTER PLUNGER
    CAP, STARTER PLUNGER
  • 16014
    16014-1014 SCREW, PILOT AIR
    SCREW, PILOT AIR
  • 16016
    16016-1019 PLUNGER
    PLUNGER
  • 16017
    16017-1086 JET, NEEDLE, #AY, 1
    JET, NEEDLE, #AY, 1
  • 16022
    16022-016 SPRING, PILOT SCREW
    SPRING, PILOT SCREW
  • 16030
    16030-1016 VALVE, FLOAT, 2.5
    VALVE, FLOAT, 2.5
  • 16031
    16031-1013 FLOAT
    FLOAT
  • 16032
    16032-008 PIN, FLOAT
    PIN, FLOAT
  • 16034
    16034-001 WASHER, MAIN JET
    WASHER, MAIN JET
  • 16038
    16038-022 GASKET, "O"RING
    GASKET, "O"RING
  • 16055
    16055-010 PLATE, NEEDLE
    PLATE, NEEDLE
  • 16126
    16126-1149 VALVE, DIAPHRAGM
    VALVE, DIAPHRAGM
  • 92055
    92055-044 O-RING
    O-RING
  • 92055A
    92055-1059 O-RING, CHECK VALVE
    O-RING, CHECK VALVE
  • 92055B
    92055-1105 O-RING
    O-RING
  • 92063
    92063-1100 JET, MAIN, #A127.5
    JET, MAIN, #A127.5
  • 92063A
    92063-1101 JET, MAIN, #A122.5 (RACING USE ONLY)
    JET, MAIN, #A122.5 (RACING USE ONLY)
  • 92063B
    92063-1102 JET, MAIN, #A125 (RACING USE ONLY)
    JET, MAIN, #A125 (RACING USE ONLY)
  • 92063C
    92063-1103 JET, MAIN, #A130 (RACING USE ONLY)
    JET, MAIN, #A130 (RACING USE ONLY)
  • 92063D
    92063-1104 JET, MAIN, #A132.5 (RACING USE ONLY)
    JET, MAIN, #A132.5 (RACING USE ONLY)
  • 92064
    92064-1036 JET, PILOT, #A37.5
    JET, PILOT, #A37.5
  • 92066
    92066-1051 PLUG, PILOT AIR SCREW, 6.9X2
    PLUG, PILOT AIR SCREW, 6.9X2
  • 92066A
    92066-1064 PLUG, DRAIN
    PLUG, DRAIN
  • 92066B
    92066-1087 PLUG, PILOT JET
    PLUG, PILOT JET
  • 92081
    92081-1363 SPRING, DIAPHRAGM VALVE
    SPRING, DIAPHRAGM VALVE
