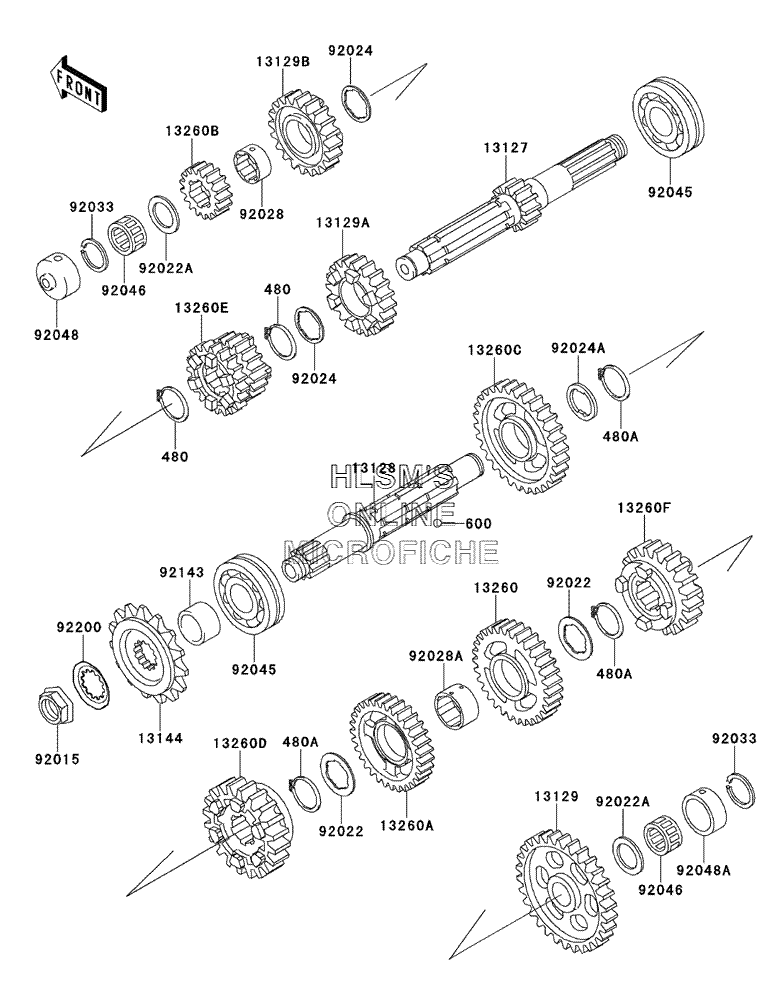

TRANSMISSION для Kawasaki NINJA ZX-11 - 2001 года выпуска
-
№АртикулНазвание
-
480480J2800 CIRCLIP, TYPE, C, 28MMCIRCLIP, TYPE, C, 28MM
-
480A480J2900 CIRCLIPCIRCLIP
-
600600A0500 BALL, STEEL, 5/32"BALL, STEEL, 5/32"
-
1312713127-1196 SHAFT, TRANSMISSION INPUT (15 TEETH)SHAFT, TRANSMISSION INPUT (15 TEETH)
-
1312813128-1205 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1312913129-1534 GEAR, OUTERPUT LOW (42 TEETH)GEAR, OUTERPUT LOW (42 TEETH)
-
13129A13129-1665 GEAR, INPUT 5TH (26 TEETH)GEAR, INPUT 5TH (26 TEETH)
-
13129B13129-1666 GEAR, INPUT TOP (28 TEETH)GEAR, INPUT TOP (28 TEETH)
-
1314413144-1224 SPROCKET, OUTERPUT (17 TEETH)SPROCKET, OUTERPUT (17 TEETH)
-
1326013260-1138 GEAR, OUTERPUT 3RD (35 TEETH)GEAR, OUTERPUT 3RD (35 TEETH)
-
13260A13260-1139 GEAR, OUTERPUT 4TH (32 TEETH)GEAR, OUTERPUT 4TH (32 TEETH)
-
13260B13260-1298 GEAR, INPUT 2ND (18 TEETH)GEAR, INPUT 2ND (18 TEETH)
-
13260C13260-1299 GEAR, OUTERPUT 2ND (37 TEETH)GEAR, OUTERPUT 2ND (37 TEETH)
-
13260D13260-1300 GEAR, OUTERPUT TOP (29 TEETH)GEAR, OUTERPUT TOP (29 TEETH)
-
13260E13260-1301 GEAR, INPUT 3RD AND 4TH (22/24 TEETH)GEAR, INPUT 3RD AND 4TH (22/24 TEETH)
-
13260F13260-1302 GEAR, OUTERPUT 5TH (30 TEETH)GEAR, OUTERPUT 5TH (30 TEETH)
-
9201592015-1210 NUT, 20MMNUT, 20MM
-
9202292022-1728 WASHER, TOOTHED, 28X40X1.8WASHER, TOOTHED, 28X40X1.8
-
92022A92022-212 WASHER, 22.3X35X1.6WASHER, 22.3X35X1.6
-
9202492024-042 WASHER, TOOTHED, 26X35.5X1.5WASHER, TOOTHED, 26X35.5X1.5
-
92024A92024-069 WASHER, TOOTHED, 30.5X38X1WASHER, TOOTHED, 30.5X38X1
-
9202892028-1124 BUSHING, TOP GEARBUSHING, TOP GEAR
-
92028A92028-1363 BUSHING, OUTERPUT 3RD AND 4THBUSHING, OUTERPUT 3RD AND 4TH
-
9203392033-025 RING, SNAP, 20X25.5X1.2RING, SNAP, 20X25.5X1.2
-
9204592045-1186 BEARING, BALLBEARING, BALL
-
9204692046-031 BEARING, NEEDLE, FWF, 223014BEARING, NEEDLE, FWF, 223014
-
9204892048-1052 RACE, INPUT SHAFTRACE, INPUT SHAFT
-
92048A92048-1053 RACE, 30X38X15RACE, 30X38X15
-
9214392143-1649 COLLAR, SPROCKETCOLLAR, SPROCKET
-
9220092200-1234 WASHER, TOOTHED, 23.9X45X1.0WASHER, TOOTHED, 23.9X45X1.0
