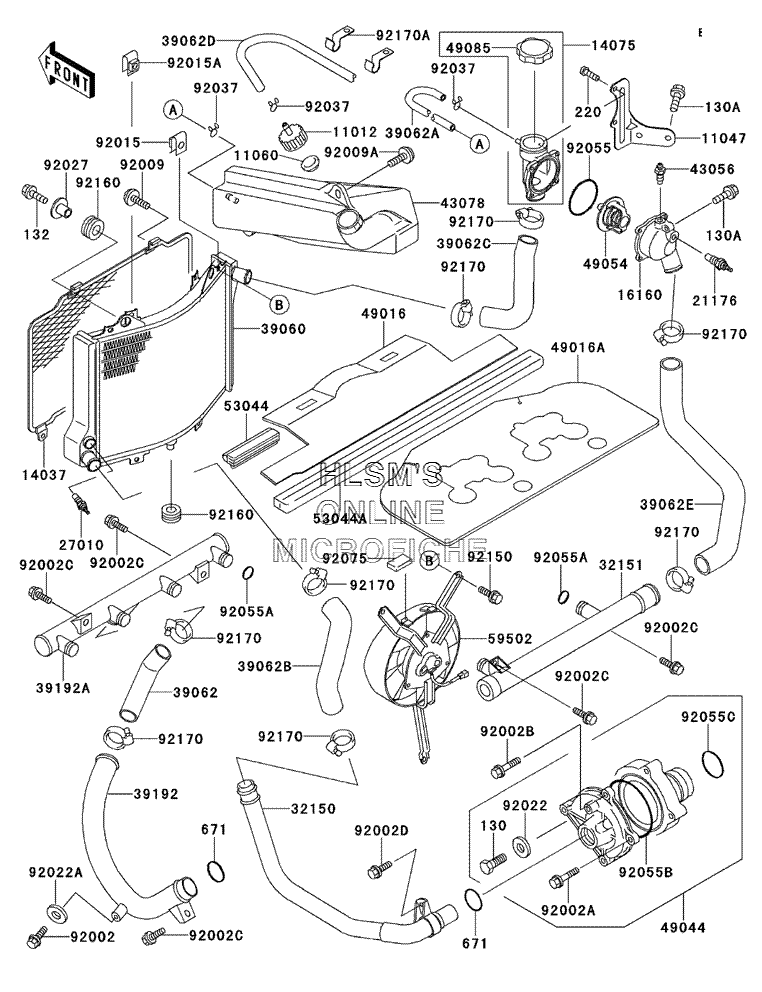

RADIATOR для Kawasaki NINJA ZX-11 - 2001 года выпуска`
-
№АртикулНазвание
-
1101211012-1854 CAPCAP
-
1104711047-1887 BRACKET, THERMOSTAT BODYBRACKET, THERMOSTAT BODY
-
1106011060-1349 GASKET, RESERVOIR TANK CAPGASKET, RESERVOIR TANK CAP
-
1403714037-1172 SCREEN, RADIATORSCREEN, RADIATOR
-
1407514075-1068 CAP, ASSY.CAP, ASSY.
-
1616016160-1117 BODY, THERMOSTAT, LOWERBODY, THERMOSTAT, LOWER
-
2117621176-1054 SENSOR, WATERSENSOR, WATER
-
2701027010-1202 SWITCH, FANSWITCH, FAN
-
3215032150-1483 PIPEPIPE
-
3215132151-1359 PIPE, CYLINDER HEADPIPE, CYLINDER HEAD
-
3906039060-1116 RADIATORRADIATOR
-
3906239062-1276 HOSE, COOLING, PUMP, CYLINDERHOSE, COOLING, PUMP, CYLINDER
-
39062A39062-1285 HOSE, COOLING, RESERVOIRHOSE, COOLING, RESERVOIR
-
39062B39062-1377 HOSE, COOLINGHOSE, COOLING
-
39062C39062-1531 HOSE, COOLING, THERMO, RADIATORHOSE, COOLING, THERMO, RADIATOR
-
39062D39062-1533 HOSE, COOLING, OVERFLOWHOSE, COOLING, OVERFLOW
-
39062E39062-1542 HOSE, COOLING, HEAD, THERMOSTATHOSE, COOLING, HEAD, THERMOSTAT
-
3919239192-1011 PIPE, WATER, PUMP, CYLINDERPIPE, WATER, PUMP, CYLINDER
-
39192A39192-1031 PIPE, WATER, CYLINDERPIPE, WATER, CYLINDER
-
4305643056-003 BREATHERBREATHER
-
4307843078-1131 RESERVOIRRESERVOIR
-
4901649016-1165 COVER, SEALCOVER, SEAL
-
49016A49016-1166 COVER, SEALCOVER, SEAL
-
4904449044-1076 PUMP, WATERPUMP, WATER
-
4905449054-1051 THERMOSTATTHERMOSTAT
-
4908549085-1067 CAP, ASSY., PRESSURECAP, ASSY., PRESSURE
-
5304453044-1220 TRIMTRIM
-
53044A53044-1269 TRIM, RADIATOR PLATE, OUTERTRIM, RADIATOR PLATE, OUTER
-
5950259502-1105 FAN, ASSY.FAN, ASSY.
-
9200292002-1099 BOLT, 6X16BOLT, 6X16
-
92002A92002-1392 BOLT, 6X22BOLT, 6X22
-
92002B92002-1566 BOLT, 6X40BOLT, 6X40
-
92002C92002-1569 BOLT, 6X12BOLT, 6X12
-
92002D92002-1571 BOLT, 6X16BOLT, 6X16
-
9200992009-1261 SCREW, TAPPING, 6MMSCREW, TAPPING, 6MM
-
92009A92009-1663 SCREW, 6X18SCREW, 6X18
-
9201592015-1487 NUTNUT
-
92015A92015-1758 NUT, 6MMNUT, 6MM
-
9202292022-1976 WASHER, 6MMWASHER, 6MM
-
92022A92022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
130130C0610 BOLT, FLANGED, 6X10 (BLACK)BOLT, FLANGED, 6X10 (BLACK)
-
130A130G0612 BOLT, FLANGED, 6X12BOLT, FLANGED, 6X12
-
132132J0825 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
220220D0514 SCREW, PAN, CROS, 5X14SCREW, PAN, CROS, 5X14
-
671671B2525 O-RING, 25MMO-RING, 25MM
-
9202792027-1134 COLLAR, L=14COLLAR, L=14
-
9203792037-147 CLAMP, TUBECLAMP, TUBE
-
9205592055-112 O-RING, 53.5X2.6O-RING, 53.5X2.6
-
92055A92055-1282 O-RINGO-RING
-
92055B92055-1423 O-RING, WATER PUMP INSIDEO-RING, WATER PUMP INSIDE
-
92055C92055-1424 O-RING, 33.2X2.4O-RING, 33.2X2.4
-
9207592075-1446 DAMPERDAMPER
-
9215092150-1186 BOLT, 6X12BOLT, 6X12
-
9216092160-1007 DAMPERDAMPER
-
9217092170-1284 CLAMP, COOLING HOSECLAMP, COOLING HOSE
-
92170A92170-1391 CLAMP, COOLING HOSECLAMP, COOLING HOSE
