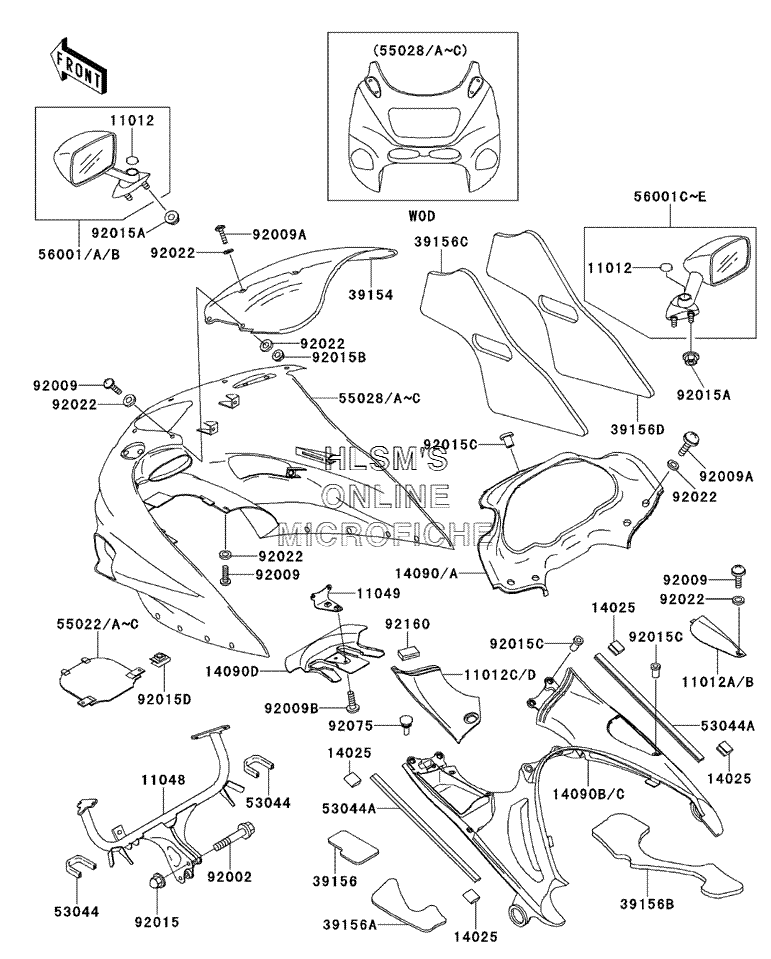

COWLING для Kawasaki NINJA ZX-11 - 2001 года выпуска
-
№АртикулНазвание
-
1101211012-1751-6Z CAP, MIRROR (BLACK)CAP, MIRROR (BLACK)
-
11012B11012-1876-12 CAP, INNER COWLING (RIGHT) (GRAY)CAP, INNER COWLING (RIGHT) (GRAY)
-
11012D11012-1877-12 CAP, INNER COWLING (LEFT) (GRAY)CAP, INNER COWLING (LEFT) (GRAY)
-
1104811048-1884 BRACKET, UPPER COWLINGBRACKET, UPPER COWLING
-
1104911049-1070 BRACKETBRACKET
-
1402514025-1756 COVER, TRIM ENDCOVER, TRIM END
-
14090A14090-1418-12 COVER, INNER COWLING, FRONT (GRAY)COVER, INNER COWLING, FRONT (GRAY)
-
14090C14090-1427-12 COVER, INNER COWLING, REAR (GRAY)COVER, INNER COWLING, REAR (GRAY)
-
14090D14090-1565 COVER, HOSE AND CABLECOVER, HOSE AND CABLE
-
3915439154-1122 WINDSHIELDWINDSHIELD
-
3915639156-1329 PAD, INNER COWLING (LEFT/FRONT)PAD, INNER COWLING (LEFT/FRONT)
-
39156A39156-1330 PAD, INNER COWLING (LEFT/REAR)PAD, INNER COWLING (LEFT/REAR)
-
39156B39156-1331 PAD, INNER COWLING (RIGHT)PAD, INNER COWLING (RIGHT)
-
39156C39156-1332 PAD, UPPER COWLING (LEFT)PAD, UPPER COWLING (LEFT)
-
39156D39156-1333 PAD, UPPER COWLING (RIGHT)PAD, UPPER COWLING (RIGHT)
-
5304453044-1200 TRIM, L=100TRIM, L=100
-
53044A53044-1255 TRIM, L=385TRIM, L=385
-
55022C55022-1074-2T COVER, HEAD LAMP (L.V.RED)COVER, HEAD LAMP (L.V.RED)
-
55028C55028-1300-2T COWLING, UPPER (L.V.RED)COWLING, UPPER (L.V.RED)
-
56001B56001-1390-P5 MIRROR, ASSY. (LEFT) (L.V.RED)MIRROR, ASSY. (LEFT) (L.V.RED)
-
56001E56001-1391-P5 MIRROR, ASSY. (RIGHT) (L.V.RED)MIRROR, ASSY. (RIGHT) (L.V.RED)
-
9200292002-1198 BOLT, 8X35BOLT, 8X35
-
9200992009-1654 SCREW, 5X16 (BLACK)SCREW, 5X16 (BLACK)
-
92009A92009-1657 SCREW, 5X25SCREW, 5X25
-
92009B92009-1661 SCREW, 6X10SCREW, 6X10
-
9201592015-1174 NUT, CAP, 8MM (BLACK)NUT, CAP, 8MM (BLACK)
-
92015A92015-1233 NUT, FLANGED, 6MM (BLACK)NUT, FLANGED, 6MM (BLACK)
-
92015B92015-1263 NUT, LOCK, FLANGE CAP, 5MMNUT, LOCK, FLANGE CAP, 5MM
-
92015C92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
92015D92015-1798 NUT, 5MMNUT, 5MM
-
9202292022-1521 WASHER, NYLON, 5.3X11.5X1.5WASHER, NYLON, 5.3X11.5X1.5
-
9207592075-1808 DAMPERDAMPER
-
9216092160-1190 DAMPERDAMPER
