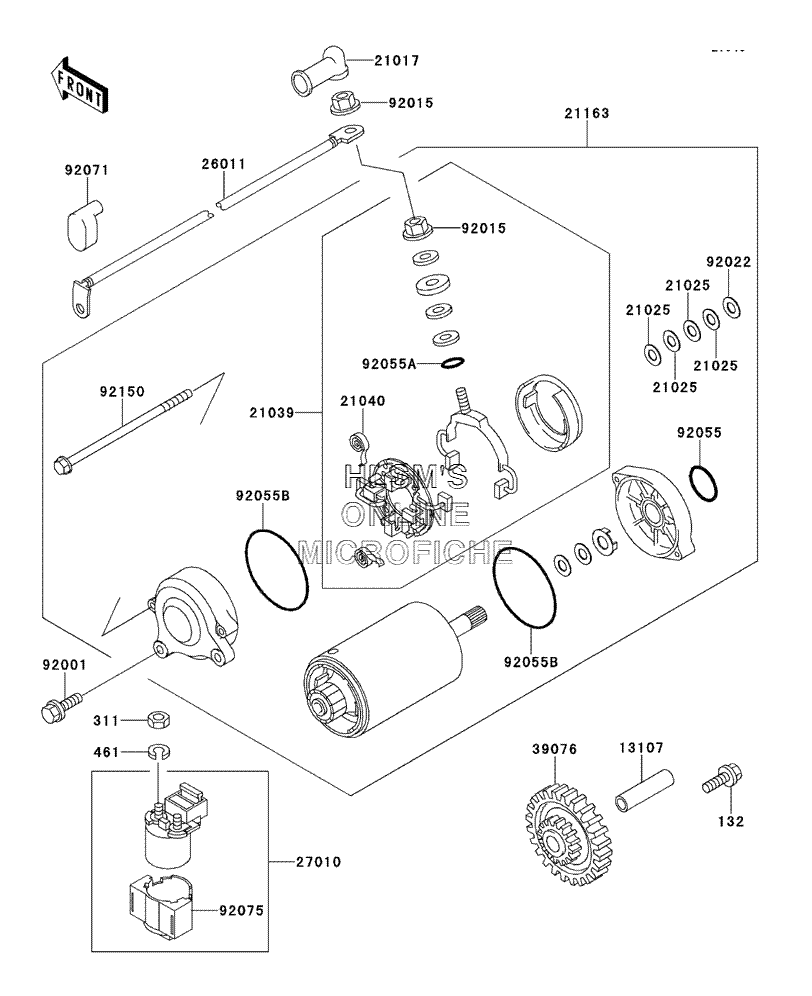

STARTER MOTOR для Kawasaki NINJA ZX-11 - 2001 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0612 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 311
    311B0600 NUT, HEX, 6MM
    NUT, HEX, 6MM
  • 461
    461F0600 WASHER, SPRING, 6MM
    WASHER, SPRING, 6MM
  • 13107
    13107-1106 SHAFT, IDLE GEAR
    SHAFT, IDLE GEAR
  • 21017
    21017-017 GROMMET, STARTER TERMINAL
    GROMMET, STARTER TERMINAL
  • 21025
    21025-011 WASHER, 9.1X18X0.2
    WASHER, 9.1X18X0.2
  • 21039
    21039-1060 BRUSH, CARBON
    BRUSH, CARBON
  • 21040
    21040-1055 SPRING, BRUSH
    SPRING, BRUSH
  • 21163
    21163-1212 STARTER, ELECTRIC
    STARTER, ELECTRIC
  • 26011
    26011-1479 WIRE, LEAD, STARTER MOTOR
    WIRE, LEAD, STARTER MOTOR
  • 27010
    27010-1254 SWITCH, MAGNETIC
    SWITCH, MAGNETIC
  • 39076
    39076-1061 LIMITER, STARTER IDLE GEAR
    LIMITER, STARTER IDLE GEAR
  • 92001
    92001-1947 BOLT, 6X20
    BOLT, 6X20
  • 92015
    92015-1476 NUT, STARTER MOTOR
    NUT, STARTER MOTOR
  • 92022
    92022-1132 WASHER, 9.1X18X0.8
    WASHER, 9.1X18X0.8
  • 92055
    92055-1276 O-RING
    O-RING
  • 92055A
    92055-1370 O-RING, 4.5X2.0
    O-RING, 4.5X2.0
  • 92055B
    92055-1381 O-RING, STARTER MOTOR
    O-RING, STARTER MOTOR
  • 92071
    92071-1130 GROMMET, TERMINAL
    GROMMET, TERMINAL
  • 92075
    92075-1863 DAMPER, MAGNETIC SWITCH
    DAMPER, MAGNETIC SWITCH
  • 92150
    92150-1693 BOLT
    BOLT
