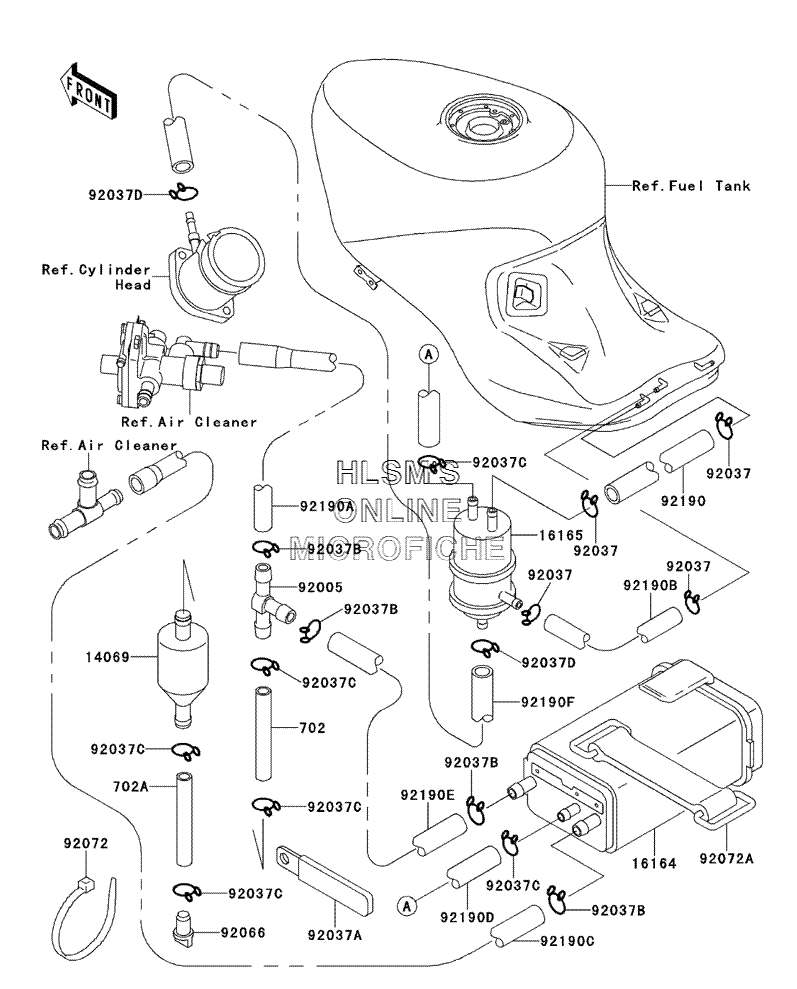

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki NINJA ZX-11 - 2001 года выпуска

  • №
    Артикул
    Название
  • 14069
    14069-1051 BREATHER
    BREATHER
  • 16164
    16164-1064 CANISTER
    CANISTER
  • 16165
    16165-1001 SEPARATOR
    SEPARATOR
  • 92005
    92005-1119 FITTING, T, TYPE
    FITTING, T, TYPE
  • 92037
    92037-010 CLAMP, TUBE
    CLAMP, TUBE
  • 92037A
    92037-1069 CLAMP, WIRING HARNESS, L=60
    CLAMP, WIRING HARNESS, L=60
  • 92037B
    92037-1104 CLAMP, HOSE
    CLAMP, HOSE
  • 92037C
    92037-147 CLAMP, TUBE
    CLAMP, TUBE
  • 92037D
    92037-1712 CLAMP
    CLAMP
  • 92066
    92066-1211 PLUG, DRAIN
    PLUG, DRAIN
  • 92072
    92072-1195 BAND, L=202
    BAND, L=202
  • 92072A
    92072-1384 BAND
    BAND
  • 92190
    92190-1374 TUBE, TANK, SEPARATOR (BLUE)
    TUBE, TANK, SEPARATOR (BLUE)
  • 92190A
    92190-1376 TUBE, VALVE, FITTING (YELLOW)
    TUBE, VALVE, FITTING (YELLOW)
  • 92190B
    92190-1377 TUBE, TANK, SEPARATOR (RED)
    TUBE, TANK, SEPARATOR (RED)
  • 702
    702A07150 TUBE, RUBBER
    TUBE, RUBBER
  • 702A
    702A07330 TUBE, RUBBER
    TUBE, RUBBER
  • 92190C
    92190-1378 TUBE, CANISTER, AIRFILTER (GREEN)
    TUBE, CANISTER, AIRFILTER (GREEN)
  • 92190D
    92190-1379 TUBE, CANISTER, SEPARATOR (BLUE)
    TUBE, CANISTER, SEPARATOR (BLUE)
  • 92190E
    92190-1430 TUBE, FITTING, CANISTER (YELLOW)
    TUBE, FITTING, CANISTER (YELLOW)
  • 92190F
    92190-1431 TUBE, SEPARATOR, HOLDER (WHITE)
    TUBE, SEPARATOR, HOLDER (WHITE)
