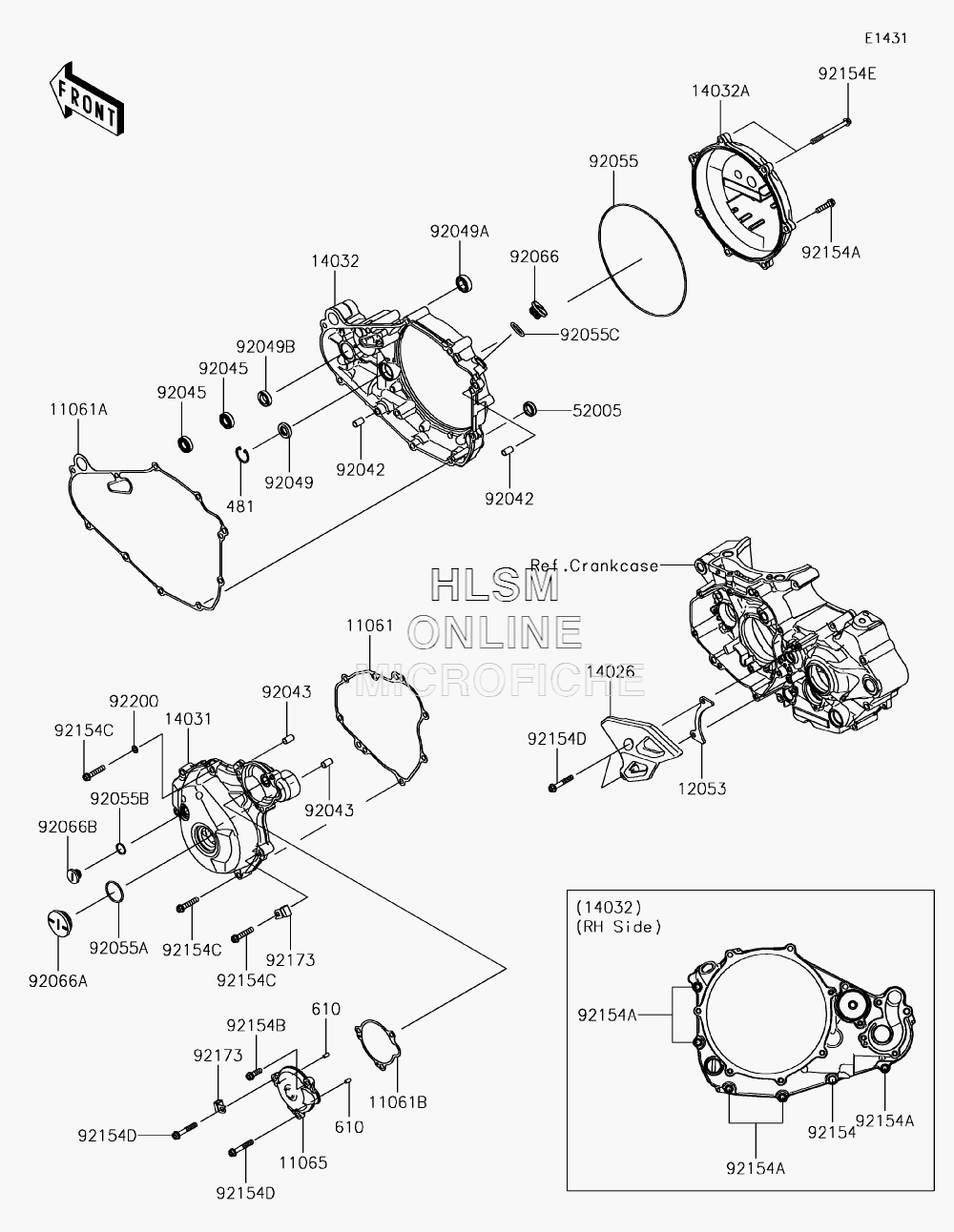

ENGINE COVER для Kawasaki KX450F (KX450JKF) - 2019 года выпуска`
-
№АртикулНазвание
-
1106111061-1271 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
11061A11061-1272 GASKET, CLUTCH INNER COVERGASKET, CLUTCH INNER COVER
-
11061B11061-1274 GASKET, CAPGASKET, CAP
-
1106511065-1273 CAPCAP
-
1205312053-0258 GUIDE-CHAINGUIDE-CHAIN
-
1402614026-0144 COVER-CHAINCOVER-CHAIN
-
1403114031-0627 COVER-GENERATORCOVER-GENERATOR
-
1403214032-0649 COVER-CLUTCH, INNERCOVER-CLUTCH, INNER
-
14032A14032-0650 COVER-CLUTCH, OUTERCOVER-CLUTCH, OUTER
-
481481J2200 CIRCLIP-TYPE-C, 22MMCIRCLIP-TYPE-C, 22MM
-
5200552005-0019 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-1567 PIN, 8X14PIN, 8X14
-
9204592045-0039 BEARING-BALL, 6900C3BEARING-BALL, 6900C3
-
9204992049-0762 SEAL-OIL, TVCX13X22X5.5SEAL-OIL, TVCX13X22X5.5
-
92049A92049-0782 SEAL-OIL, 12X24X7SEAL-OIL, 12X24X7
-
92049B92049-0783 SEAL-OIL, 12X22X5SEAL-OIL, 12X22X5
-
9205592055-0833 RING-O, 163X1.9RING-O, 163X1.9
-
92055A92055-091 RING-O, 27.7X2.4RING-O, 27.7X2.4
-
92055B92055-1011 RING-O, 13.0X1.9RING-O, 13.0X1.9
-
92055C92055-1146 RING-O, 20X2RING-O, 20X2
-
9206692066-0833 PLUG, 18X9PLUG, 18X9
-
92066A92066-0834 PLUG, 30X8PLUG, 30X8
-
92066B92066-0835 PLUG, 12X9.1PLUG, 12X9.1
-
9215492154-1942 BOLT, FLANGED, 6X30BOLT, FLANGED, 6X30
-
92154A92154-2967 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
92154B92154-2976 BOLT, FLANGED, 6X18BOLT, FLANGED, 6X18
-
92154C92154-2977 BOLT, FLANGED, 6X30BOLT, FLANGED, 6X30
-
92154D92154-2978 BOLT, FLANGED, 6X35BOLT, FLANGED, 6X35
-
92154E92154-2980 BOLT, FLANGED, 6X65BOLT, FLANGED, 6X65
-
9217392173-1940 CLAMPCLAMP
-
9220092200-0190 WASHER, 6.1X10.0X1.0WASHER, 6.1X10.0X1.0
