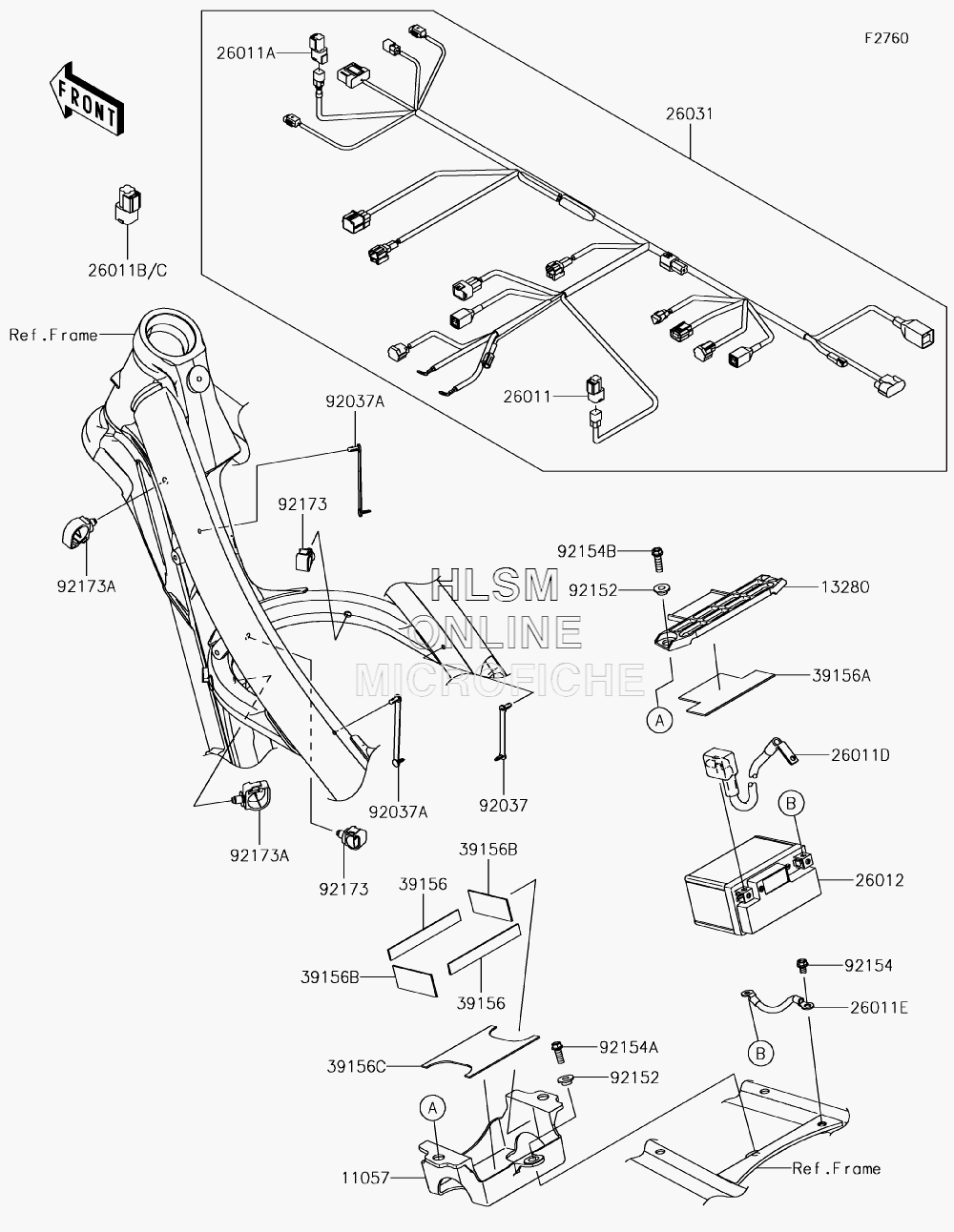

ELECTRICAL - CHASSIS для Kawasaki KX450F (KX450JKF) - 2019 года выпуска
-
№АртикулНазвание
-
1105711057-1550 BRACKET, BATTERY CASEBRACKET, BATTERY CASE
-
1328013280-0912 HOLDER, BATTERY COVERHOLDER, BATTERY COVER
-
2601126011-0273 WIRE-LEAD, NATURALWIRE-LEAD, NATURAL
-
26011A26011-0727 WIRE-LEAD, GREENWIRE-LEAD, GREEN
-
26011B26011-0728 WIRE-LEAD, MODE SELECT, (BLACK)WIRE-LEAD, MODE SELECT, (BLACK)
-
26011C26011-0748 WIRE-LEAD, MODE SELECT, (WHITE)WIRE-LEAD, MODE SELECT, (WHITE)
-
26011D26011-0996 WIRE-LEAD, BATTERY(+)WIRE-LEAD, BATTERY(+)
-
26011E26011-0997 WIRE-LEAD, BATTERY(-)WIRE-LEAD, BATTERY(-)
-
2601226012-0880 BATTERY, HJ01, 12V24WH, LIFEPO4BATTERY, HJ01, 12V24WH, LIFEPO4
-
2603126031-2590 HARNESS, MAINHARNESS, MAIN
-
3915639156-2266 PAD, 12X100X1PAD, 12X100X1
-
39156A39156-2418 PAD, 60X100X1.5PAD, 60X100X1.5
-
39156B39156-2419 PAD, 25X58X1.5PAD, 25X58X1.5
-
39156C39156-2420 PAD, 100X72X1.5PAD, 100X72X1.5
-
9203792037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
92037A92037-1903 CLAMP, SPEED, L=80.5CLAMP, SPEED, L=80.5
-
9215292152-0445 COLLAR, 6.5X10X5.6COLLAR, 6.5X10X5.6
-
9215492154-2962 BOLT, FLANGED, 6X8BOLT, FLANGED, 6X8
-
92154A92154-2965 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
92154B92154-2966 BOLT, FLANGED, 6X20BOLT, FLANGED, 6X20
-
9217392173-0736 CLAMP, 12MM DIA.CLAMP, 12MM DIA.
-
92173A92173-0861 CLAMPCLAMP
