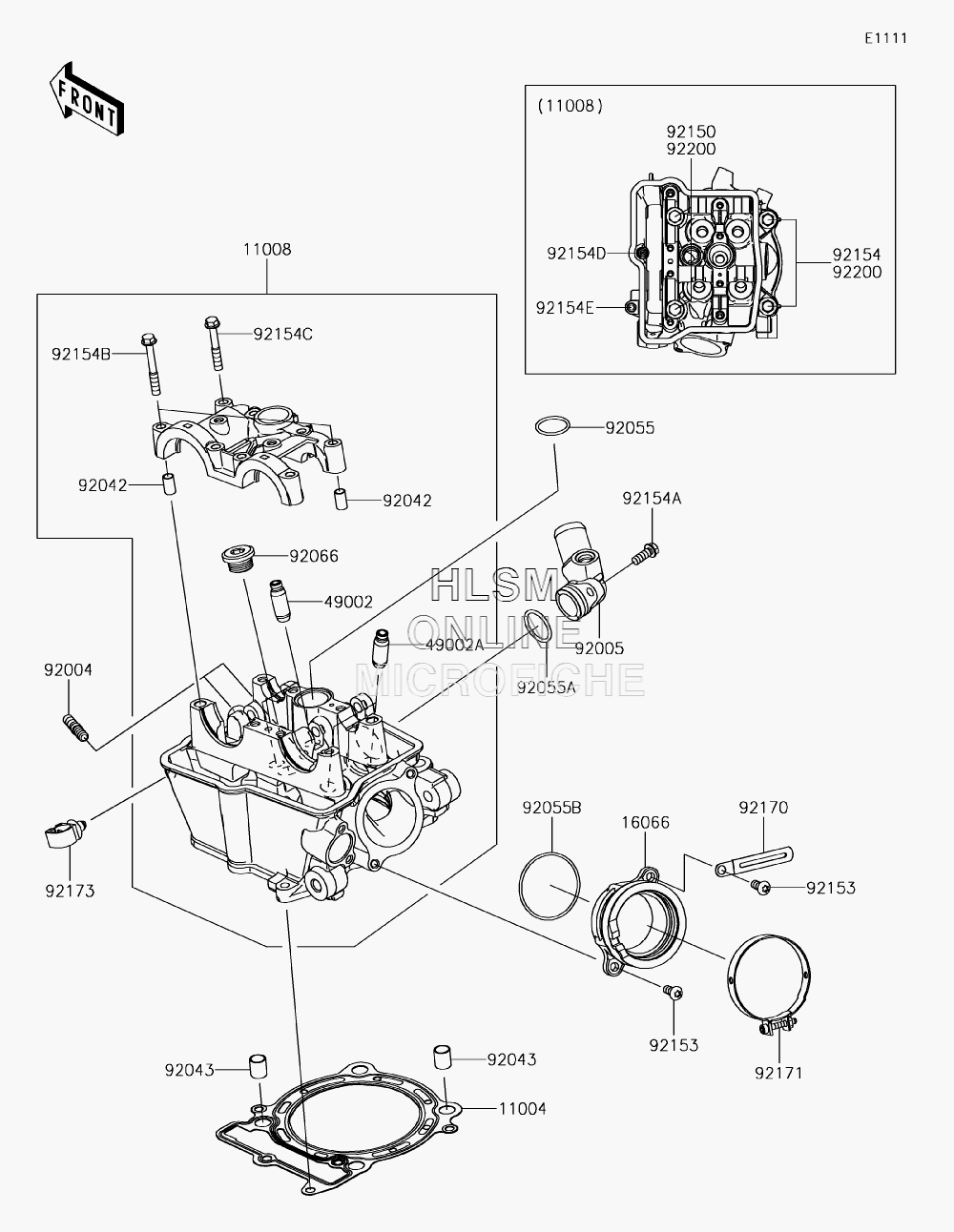

CYLINDER HEAD для Kawasaki KX450F (KX450JKF) - 2019 года выпуска

№

Артикул

Название
11004

11004-0777 GASKET-HEAD

GASKET-HEAD
11008

11008-0935 HEAD-COMP-CYLINDER

HEAD-COMP-CYLINDER
16066

16066-0010 HOLDER-THROTTLE BODY

HOLDER-THROTTLE BODY
49002

49002-0020 GUIDE-VALVE

GUIDE-VALVE
49002A

49002-0042 GUIDE-VALVE

GUIDE-VALVE
92004

92004-0025 STUD, 8X22

STUD, 8X22
92005

92005-0896 FITTING

FITTING
92042

92042-007 PIN, DOWEL, 6.3X8X14

PIN, DOWEL, 6.3X8X14
92043

92043-4009 PIN, 10.1X12X14

PIN, 10.1X12X14
92055

92055-0046 RING-O, 23.5X2.0

RING-O, 23.5X2.0
92055A

92055-1081 RING-O, 22.1X2.4

RING-O, 22.1X2.4
92055B

92055-1600 RING-O, 47X1.9

RING-O, 47X1.9
92066

92066-0832 PLUG, 18X10

PLUG, 18X10
92150

92150-1934 BOLT, L=148

BOLT, L=148
92153

92153-0406 BOLT, TORX, 6X14

BOLT, TORX, 6X14
92154

92154-2455 BOLT, FLANGED, 10X127

BOLT, FLANGED, 10X127
92154A

92154-2965 BOLT, FLANGED, 6X16

BOLT, FLANGED, 6X16
92154B

92154-2979 BOLT, FLANGED, 6X42

BOLT, FLANGED, 6X42
92154C

92154-2983 BOLT, FLANGED, 6X35

BOLT, FLANGED, 6X35
92154D

92154-3867 BOLT, SOCKET, 6X70

BOLT, SOCKET, 6X70
92154E

92154-3960 BOLT-SOCKET, 6X25

BOLT-SOCKET, 6X25
92170

92170-1514 CLAMP

CLAMP
92171

92171-1552 CLAMP

CLAMP
92173

92173-0736 CLAMP, 12MM DIA.

CLAMP, 12MM DIA.
92200

92200-1691 WASHER, 10.2X18.4X1.8

WASHER, 10.2X18.4X1.8
