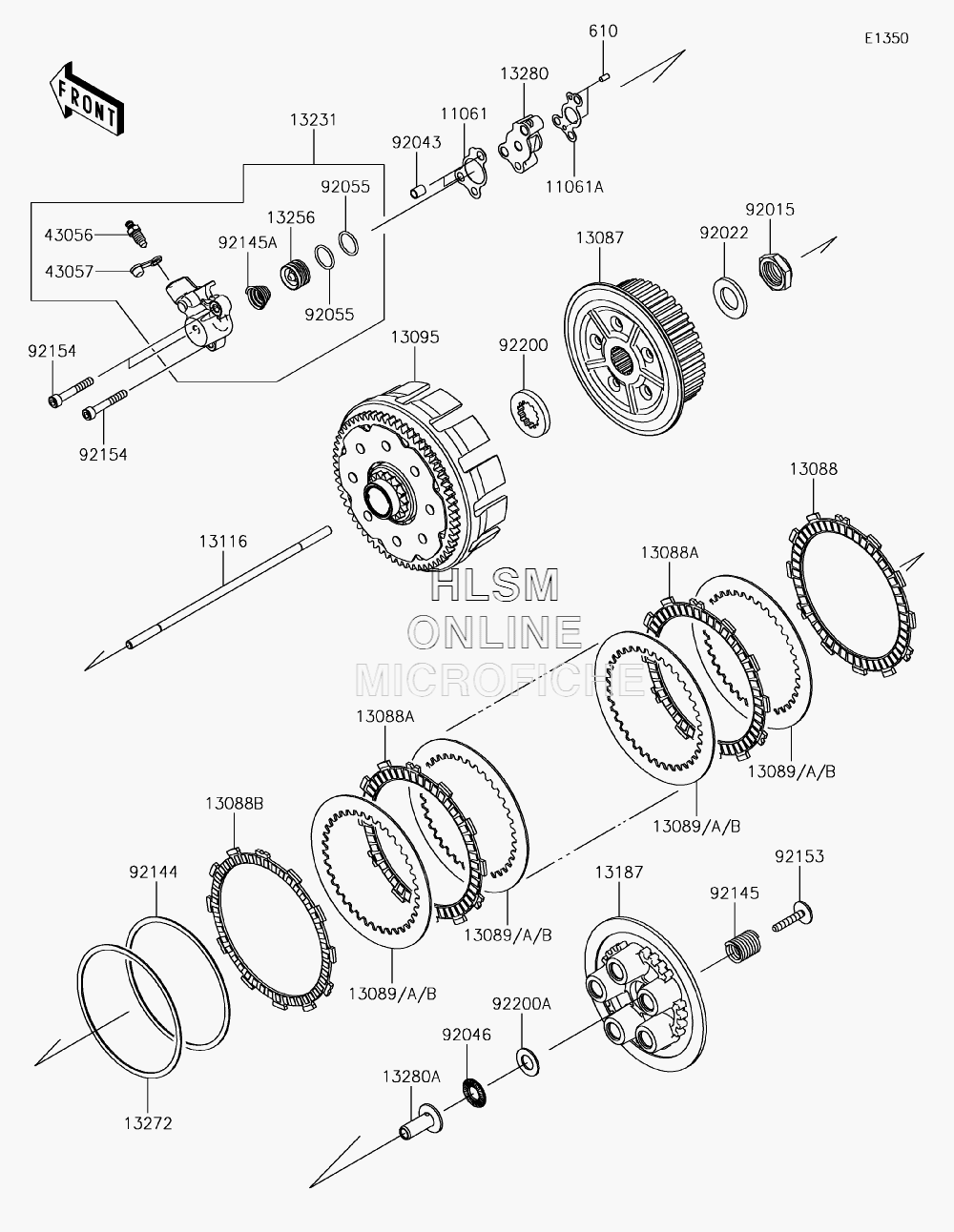

CLUTCH для Kawasaki KX450F (KX450JKF) - 2019 года выпуска
-
№АртикулНазвание
-
1106111061-1295 GASKET, RELEASE SIDEGASKET, RELEASE SIDE
-
11061A11061-1296 GASKET, CRANKCASE SIDEGASKET, CRANKCASE SIDE
-
1308713087-0015 HUB-CLUTCHHUB-CLUTCH
-
1308813088-0010 PLATE-FRICTIONPLATE-FRICTION
-
13088A13088-0051 PLATE-FRICTIONPLATE-FRICTION
-
13088B13088-0600 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-1005 PLATE-CLUTCH, T=2.0PLATE-CLUTCH, T=2.0
-
13089A13089-1010 PLATE-CLUTCH, T=1.2PLATE-CLUTCH, T=1.2
-
13089B13089-1095 PLATE-CLUTCH, T=1.6PLATE-CLUTCH, T=1.6
-
1309513095-0591 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1311613116-0740 ROD-PUSHROD-PUSH
-
1318713187-0007 PLATE-CLUTCH OPERATINGPLATE-CLUTCH OPERATING
-
1323113231-0010 RELEASE-ASSY-CLUTCHRELEASE-ASSY-CLUTCH
-
1325613256-0009 PISTONPISTON
-
1327213272-2599 PLATEPLATE
-
1328013280-0916 HOLDER, RELEASE BASEHOLDER, RELEASE BASE
-
13280A13280-0919 HOLDER, PUSHERHOLDER, PUSHER
-
4305643056-1055 BREATHERBREATHER
-
4305743057-1001 CAP-BREATHERCAP-BREATHER
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
9201592015-1725 NUT, 20MMNUT, 20MM
-
9202292022-1868 WASHER, 20.3X36X3.7WASHER, 20.3X36X3.7
-
9204392043-1302 PIN, DOWEL, 8X10PIN, DOWEL, 8X10
-
9204692046-1190 BEARING-NEEDLE, FNTA-1326BEARING-NEEDLE, FNTA-1326
-
9205592055-0931 RING-ORING-O
-
9214492144-1591 SPRING, JUDDERSPRING, JUDDER
-
9214592145-0862 SPRING, CLUTCHSPRING, CLUTCH
-
92145A92145-1863 SPRINGSPRING
-
9215392153-1876 BOLT, WP, 6X35BOLT, WP, 6X35
-
9215492154-3779 BOLT, SOCKET, 6X40BOLT, SOCKET, 6X40
-
9220092200-0245 WASHER, 25X41X5.5WASHER, 25X41X5.5
-
92200A92200-1548 WASHER, 13.4X25.0X1.5WASHER, 13.4X25.0X1.5
