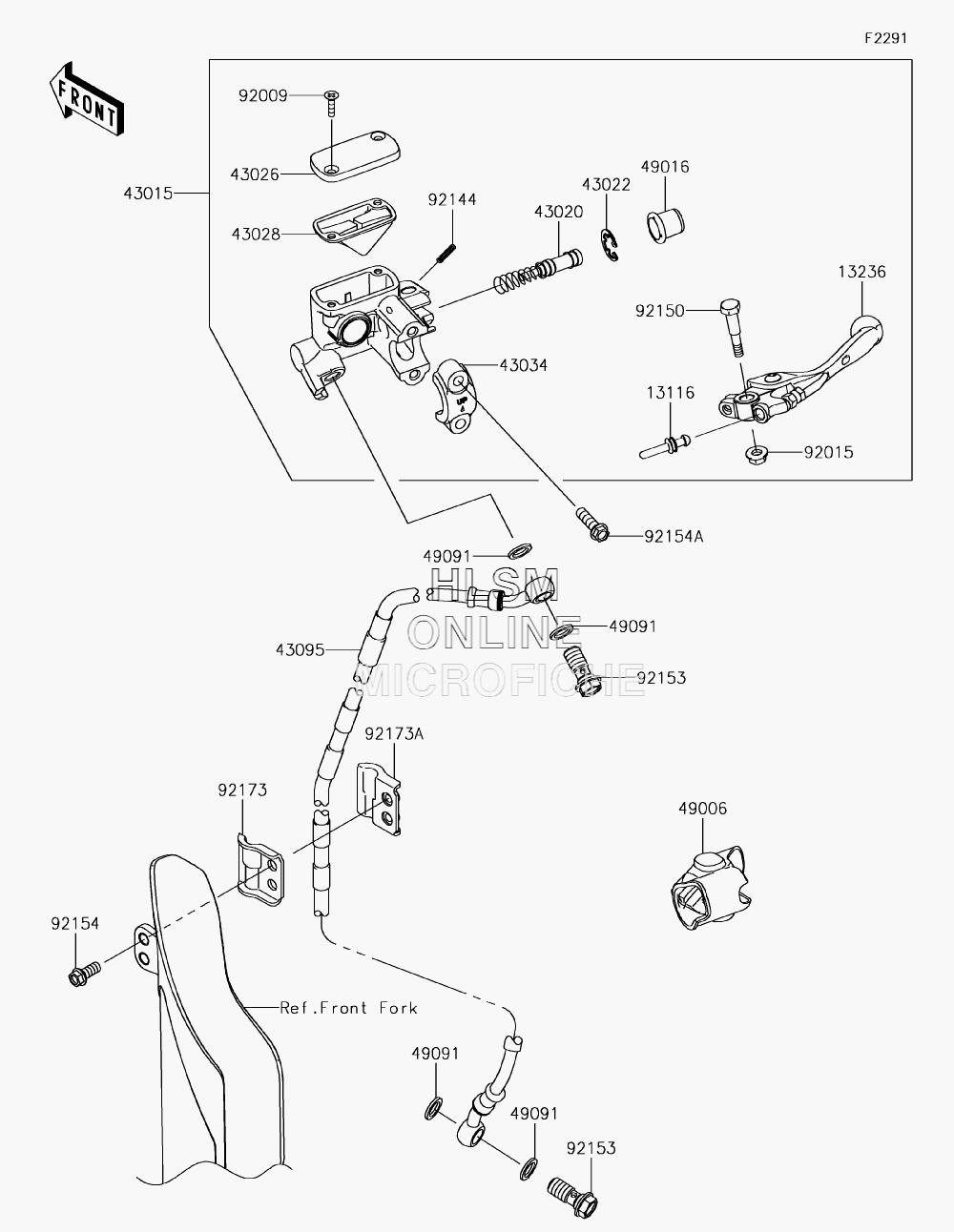

BRAKE - MASTER CYLINDER - FRONT для Kawasaki KX450F (KX450JKF) - 2019 года выпуска

  • №
    Артикул
    Название
  • 13116
    13116-0744 ROD-PUSH
    ROD-PUSH
  • 13236
    13236-0807 LEVER-COMP, FRONT BRAKE
    LEVER-COMP, FRONT BRAKE
  • 43015
    43015-0695 CYLINDER-ASSY-MASTER
    CYLINDER-ASSY-MASTER
  • 43020
    43020-0031 PISTON-COMP-BRAKE
    PISTON-COMP-BRAKE
  • 43022
    43022-0004 STOPPER-BRAKE, PISTON
    STOPPER-BRAKE, PISTON
  • 43026
    43026-0027 CAP-BRAKE, MASTER CYLINDER
    CAP-BRAKE, MASTER CYLINDER
  • 43028
    43028-0023 DIAPHRAGM
    DIAPHRAGM
  • 43034
    43034-1110 HOLDER-BRAKE
    HOLDER-BRAKE
  • 43095
    43095-1543 HOSE-BRAKE, FRONT, 1334MM
    HOSE-BRAKE, FRONT, 1334MM
  • 49006
    49006-0606 BOOT, BRAKE LEVER
    BOOT, BRAKE LEVER
  • 49016
    49016-1044 COVER-SEAL, MASTER CYLINDER
    COVER-SEAL, MASTER CYLINDER
  • 49091
    49091-0001 WASHER-SEAL, 10.1X14.5X1.5
    WASHER-SEAL, 10.1X14.5X1.5
  • 92009
    92009-1795 SCREW
    SCREW
  • 92015
    92015-1528 NUT, FLANGED, 6MM
    NUT, FLANGED, 6MM
  • 92144
    92144-1725 SPRING, RETURN
    SPRING, RETURN
  • 92150
    92150-1451 BOLT, LEVER SET
    BOLT, LEVER SET
  • 92153
    92153-1419 BOLT, OIL, L=23
    BOLT, OIL, L=23
  • 92154
    92154-2964 BOLT, FLANGED, 6X14
    BOLT, FLANGED, 6X14
  • 92154A
    92154-3780 BOLT, 6X22
    BOLT, 6X22
  • 92173
    92173-1177 CLAMP, BRAKE HOSE, LEFT HAND
    CLAMP, BRAKE HOSE, LEFT HAND
  • 92173A
    92173-1178 CLAMP, BRAKE HOSE, RIGHT HAND
    CLAMP, BRAKE HOSE, RIGHT HAND
