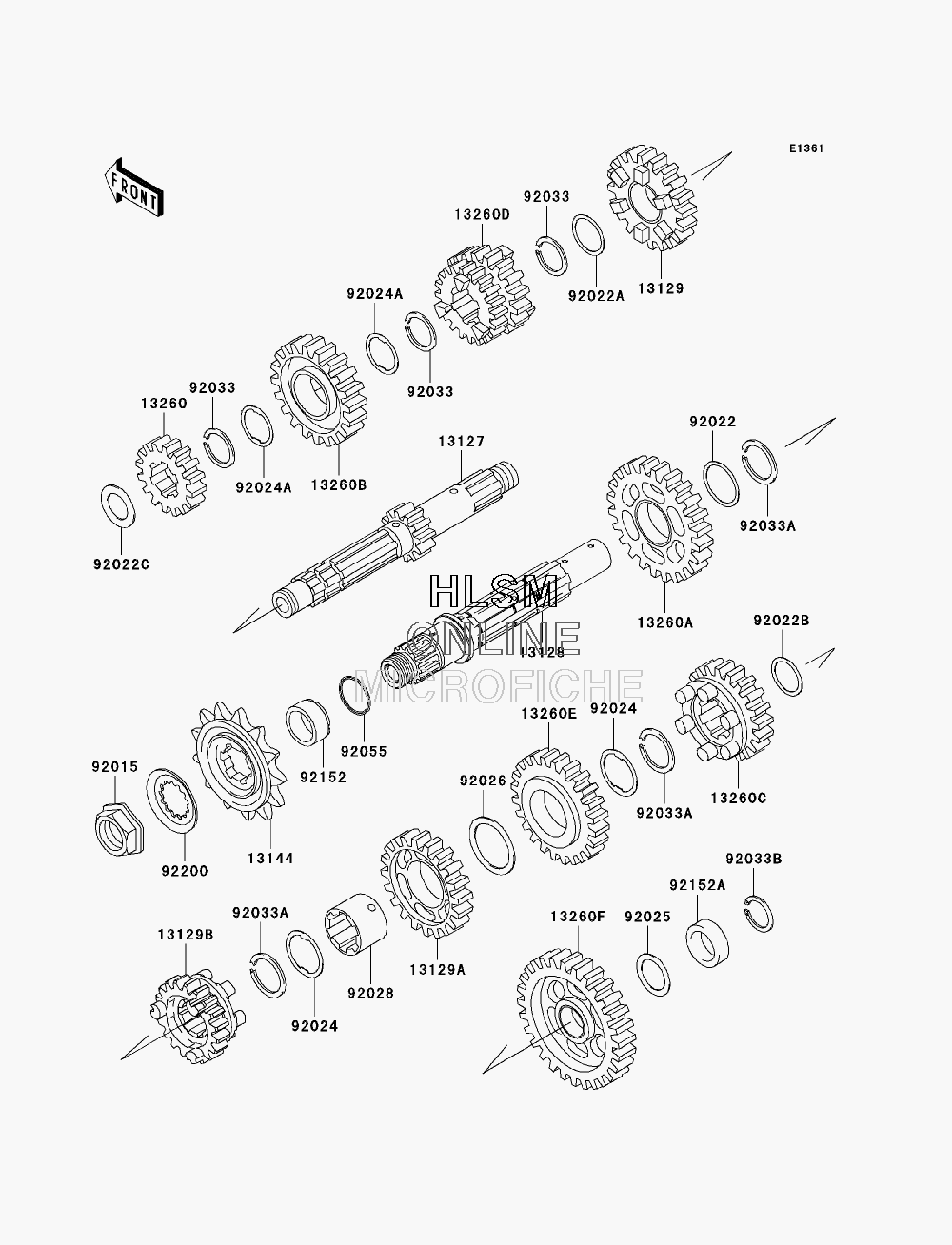

TRANSMISSION для Kawasaki KLX 250S (KLX250H6F) - 2006 года выпуска
-
№АртикулНазвание
-
1312713127-1223 SHAFT-TRANSMISSION INPUT,10TSHAFT-TRANSMISSION INPUT,10T
-
1312813128-1253 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1312913129-1603 GEAR,INPUT 5TH,20TGEAR,INPUT 5TH,20T
-
13129A13129-1650 GEAR,OUTPUT 3RD,27TGEAR,OUTPUT 3RD,27T
-
13129B13129-1653 GEAR,OUTPUT TOP,19TGEAR,OUTPUT TOP,19T
-
1314413144-1314 SPROCKET-OUTPUT,14TSPROCKET-OUTPUT,14T
-
1326013260-1385 GEAR,INPUT 2ND,15TGEAR,INPUT 2ND,15T
-
13260A13260-1386 GEAR,OUTPUT 2ND,30TGEAR,OUTPUT 2ND,30T
-
13260B13260-1595 GEAR,INPUT TOP,21TGEAR,INPUT TOP,21T
-
13260C13260-1596 GEAR,OUTPUT 5TH,21TGEAR,OUTPUT 5TH,21T
-
13260D13260-1897 GEAR,INPUT 3RD & 4TH,18T & 20TGEAR,INPUT 3RD & 4TH,18T & 20T
-
13260E13260-1898 GEAR,OUTPUT 4TH,25TGEAR,OUTPUT 4TH,25T
-
13260F13260-1901 GEAR,OUTPUT LOW,30TGEAR,OUTPUT LOW,30T
-
9201592015-1963 NUT,20MMNUT,20MM
-
9202292022-159 WASHER,25.3X30X0.5WASHER,25.3X30X0.5
-
92022A92022-198 WASHER,22.3X27X0.5WASHER,22.3X27X0.5
-
92022B92022-252 WASHER,20.5X25.5X0.5WASHER,20.5X25.5X0.5
-
92022C92022-255 WASHER,17.3X28X1WASHER,17.3X28X1
-
9202492024-038 WASHER,TOOTHED,22.5X31X0.5WASHER,TOOTHED,22.5X31X0.5
-
92024A92024-039 WASHER,TOOTHED,22.5X27X0.5WASHER,TOOTHED,22.5X27X0.5
-
9202592025-1451 SHIM,T=0.7SHIM,T=0.7
-
9202692026-079 SPACER,30X38X1.0SPACER,30X38X1.0
-
9202892028-1016 BUSHING,OUTPUT GEARBUSHING,OUTPUT GEAR
-
9203392033-025 RING-SNAP,20X25.5X1.2RING-SNAP,20X25.5X1.2
-
92033A92033-026 RING-SNAP,24MMRING-SNAP,24MM
-
92033B92033-029 RING-SNAP,18MMRING-SNAP,18MM
-
9205592055-1293 RING-O,21.5X1.5RING-O,21.5X1.5
-
9215292152-1350 COLLARCOLLAR
-
92152A92152-1357 COLLAR,20X28X8.5COLLAR,20X28X8.5
-
9220092200-1065 WASHERWASHER
