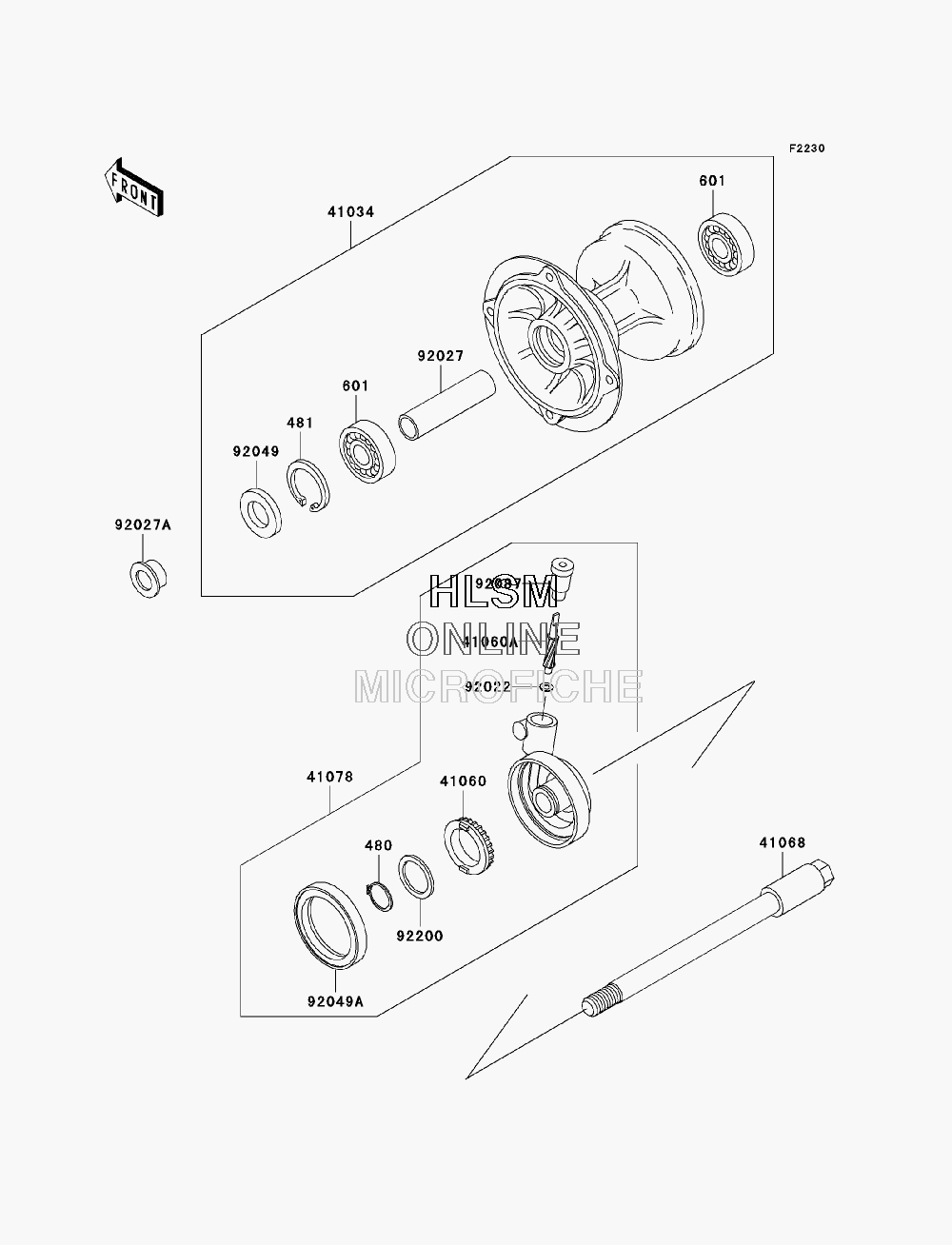

FRONT HUB для Kawasaki KLX 250S (KLX250H6F) - 2006 года выпуска

  • №
    Артикул
    Название
  • 480
    480J2400 CIRCLIP-TYPE-C,24MM
    CIRCLIP-TYPE-C,24MM
  • 481
    481J3500 CIRCLIP-TYPE-C,35MM
    CIRCLIP-TYPE-C,35MM
  • 601
    601B6202UG BEARING-BALL,#6202UG
    BEARING-BALL,#6202UG
  • 41034
    41034-1243 DRUM-ASSY, FRONT BRAKE
    DRUM-ASSY, FRONT BRAKE
  • 41060
    41060-1143 GEAR-METER SCREW,25T
    GEAR-METER SCREW,25T
  • 41060A
    41060-1144 GEAR-METER SCREW,8T
    GEAR-METER SCREW,8T
  • 41068
    41068-0013 AXLE, FRONT
    AXLE, FRONT
  • 41078
    41078-1095 CASE-ASSY-METER GEAR
    CASE-ASSY-METER GEAR
  • 92022
    92022-1511 WASHER,5X9.5X0.8
    WASHER,5X9.5X0.8
  • 92027
    92027-1958 COLLAR,15.2X22.2X75
    COLLAR,15.2X22.2X75
  • 92027A
    92027-1959 COLLAR,L=12
    COLLAR,L=12
  • 92049
    92049-1176 SEAL-OIL,MH20354.5
    SEAL-OIL,MH20354.5
  • 92049A
    92049-1399 SEAL-OIL,SDD 50 62 7
    SEAL-OIL,SDD 50 62 7
  • 92087
    92087-1060 BUSHING-METER GEAR
    BUSHING-METER GEAR
  • 92200
    92200-1137 WASHER,24X31X0.8
    WASHER,24X31X0.8
