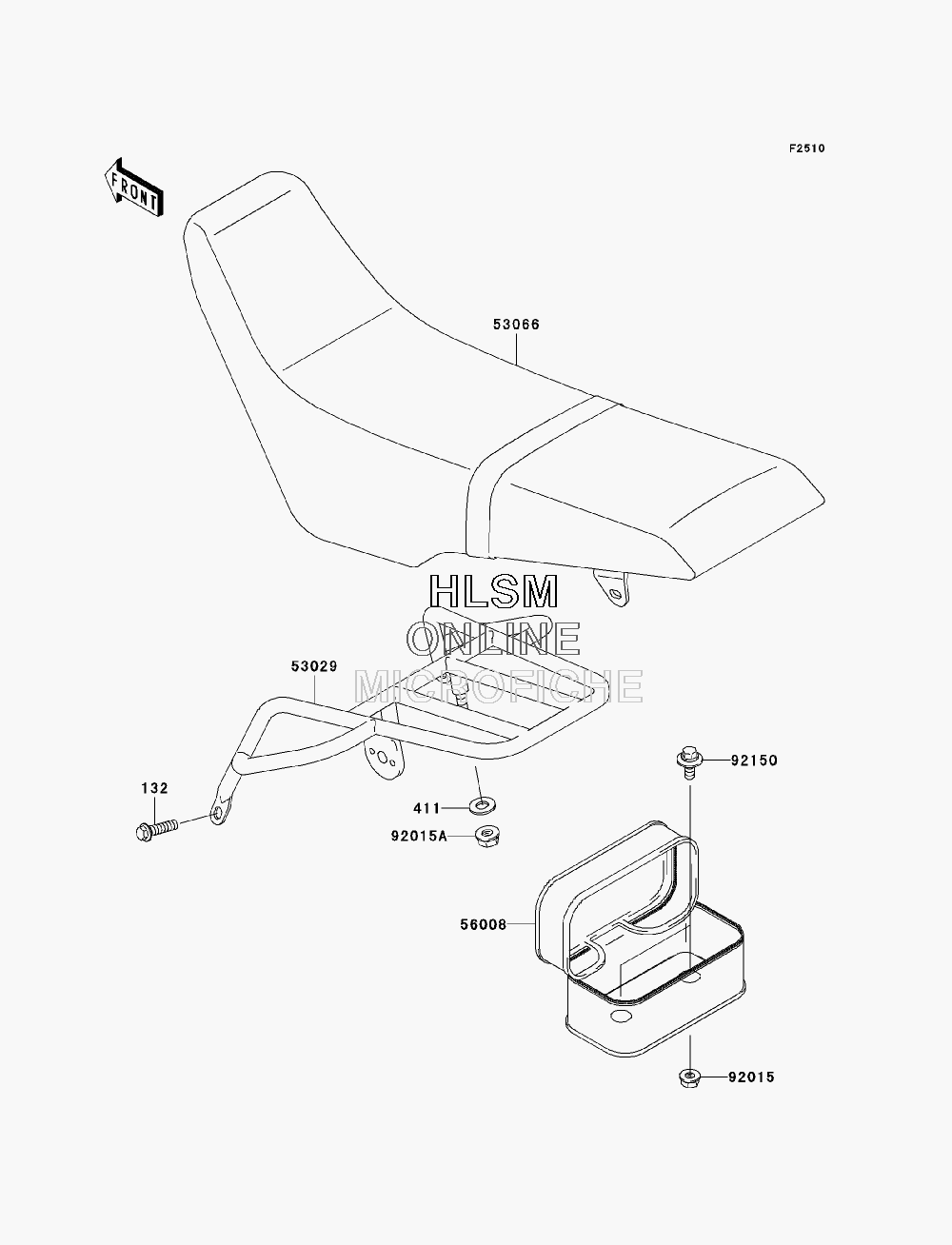

SEAT для Kawasaki KLX 250S (KLX250H6F) - 2006 года выпуска
-
№АртикулНазвание
-
132132G0830 BOLT-FLANGED-SMALL,8X30BOLT-FLANGED-SMALL,8X30
-
411411B0800 WASHER-PLAIN,8MMWASHER-PLAIN,8MM
-
5302953029-1146 CAREARIERCAREARIER
-
5306653066-0095-336 SEAT-ASSY,DUAL,W/BAND,GRN/BLKSEAT-ASSY,DUAL,W/BAND,GRN/BLK
-
5600856008-1074-MA BAG,TOOL,BLACKBAG,TOOL,BLACK
-
9201592015-1078 NUT,FLANGED,6MMNUT,FLANGED,6MM
-
92015A92015-1143 NUT,8MMNUT,8MM
-
9215092150-1340 BOLT,6X14BOLT,6X14
