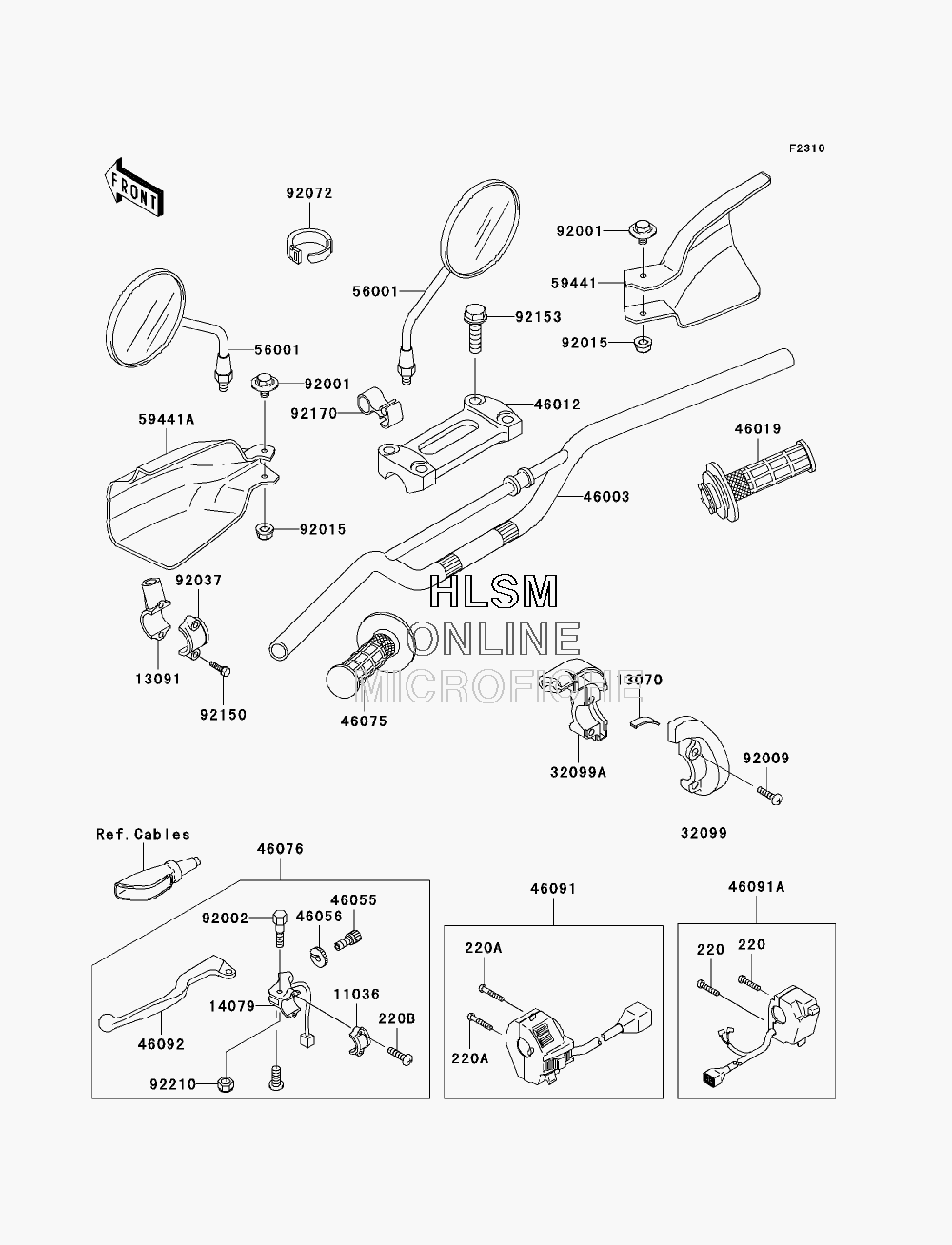

HANDLEBAR для Kawasaki KLX 250S (KLX250H6F) - 2006 года выпуска

  • №
    Артикул
    Название
  • 220
    220C0525 SCREW-PAN-CROS,5X25
    SCREW-PAN-CROS,5X25
  • 220A
    220C0530 SCREW-PAN-CROS,5X30
    SCREW-PAN-CROS,5X30
  • 220B
    220F0514 SCREW-PAN-CROSS,5X14
    SCREW-PAN-CROSS,5X14
  • 11036
    11036-1297 BRACKET-A, LEVER HOLDER
    BRACKET-A, LEVER HOLDER
  • 13070
    13070-1274 GUIDE,THROTTLE CABLE
    GUIDE,THROTTLE CABLE
  • 13091
    13091-1718 HOLDER,MIREAROR
    HOLDER,MIREAROR
  • 14079
    14079-1125 HOLDER-ASSY,CLUTCH CABLE
    HOLDER-ASSY,CLUTCH CABLE
  • 32099
    32099-1146 CASE,THROTTLE,UPP
    CASE,THROTTLE,UPP
  • 32099A
    32099-1147 CASE,THROTTLE,LWR
    CASE,THROTTLE,LWR
  • 46003
    46003-1383-458 HANDLE,P.SILVER
    HANDLE,P.SILVER
  • 46012
    46012-0010-458 HOLDER-HANDLE,UPP,P.SILVER
    HOLDER-HANDLE,UPP,P.SILVER
  • 46019
    46019-1093 GRIP-ASSY,THROTTLE
    GRIP-ASSY,THROTTLE
  • 46055
    46055-009 SCREW,CABLE ADJUST,8MM
    SCREW,CABLE ADJUST,8MM
  • 46056
    46056-006 NUT,CABLE ADJUST
    NUT,CABLE ADJUST
  • 46075
    46075-1149 GRIP, LEFT HAND
    GRIP, LEFT HAND
  • 46076
    46076-1219 LEVER-ASSY-GRIP,CLUTCH
    LEVER-ASSY-GRIP,CLUTCH
  • 46091
    46091-1690 HOUSING-ASSY-CONTROL, LEFT HAND
    HOUSING-ASSY-CONTROL, LEFT HAND
  • 46091A
    46091-1733 HOUSING-ASSY-CONTROL, RIGHT HAND
    HOUSING-ASSY-CONTROL, RIGHT HAND
  • 46092
    46092-1159 LEVER-GRIP,CLUTCH
    LEVER-GRIP,CLUTCH
  • 56001
    56001-1285 MIREAROR-ASSY
    MIREAROR-ASSY
  • 59441
    59441-0001-290 COVER-HANDLE, RIGHT HAND,L.GREEN
    COVER-HANDLE, RIGHT HAND,L.GREEN
  • 59441A
    59441-0002-290 COVER-HANDLE, LEFT HAND,L.GREEN
    COVER-HANDLE, LEFT HAND,L.GREEN
  • 92001
    92001-1034 BOLT,FLANGED,6X10
    BOLT,FLANGED,6X10
  • 92002
    92002-1880 BOLT, LEVER SET
    BOLT, LEVER SET
  • 92009
    92009-1699 SCREW,5X16
    SCREW,5X16
  • 92015
    92015-1603 NUT,LOCK,FLANGED,6MM
    NUT,LOCK,FLANGED,6MM
  • 92037
    92037-1621 CLAMP, LEVER HOLDER
    CLAMP, LEVER HOLDER
  • 92072
    92072-1293 BAND,L=140
    BAND,L=140
  • 92150
    92150-1389 BOLT,5X20
    BOLT,5X20
  • 92153
    92153-1519 BOLT,FLANGED,8X30
    BOLT,FLANGED,8X30
  • 92170
    92170-1255 CLAMP,BRAKE HOSE
    CLAMP,BRAKE HOSE
  • 92210
    92210-0006 NUT,LOCK,6MM
    NUT,LOCK,6MM
