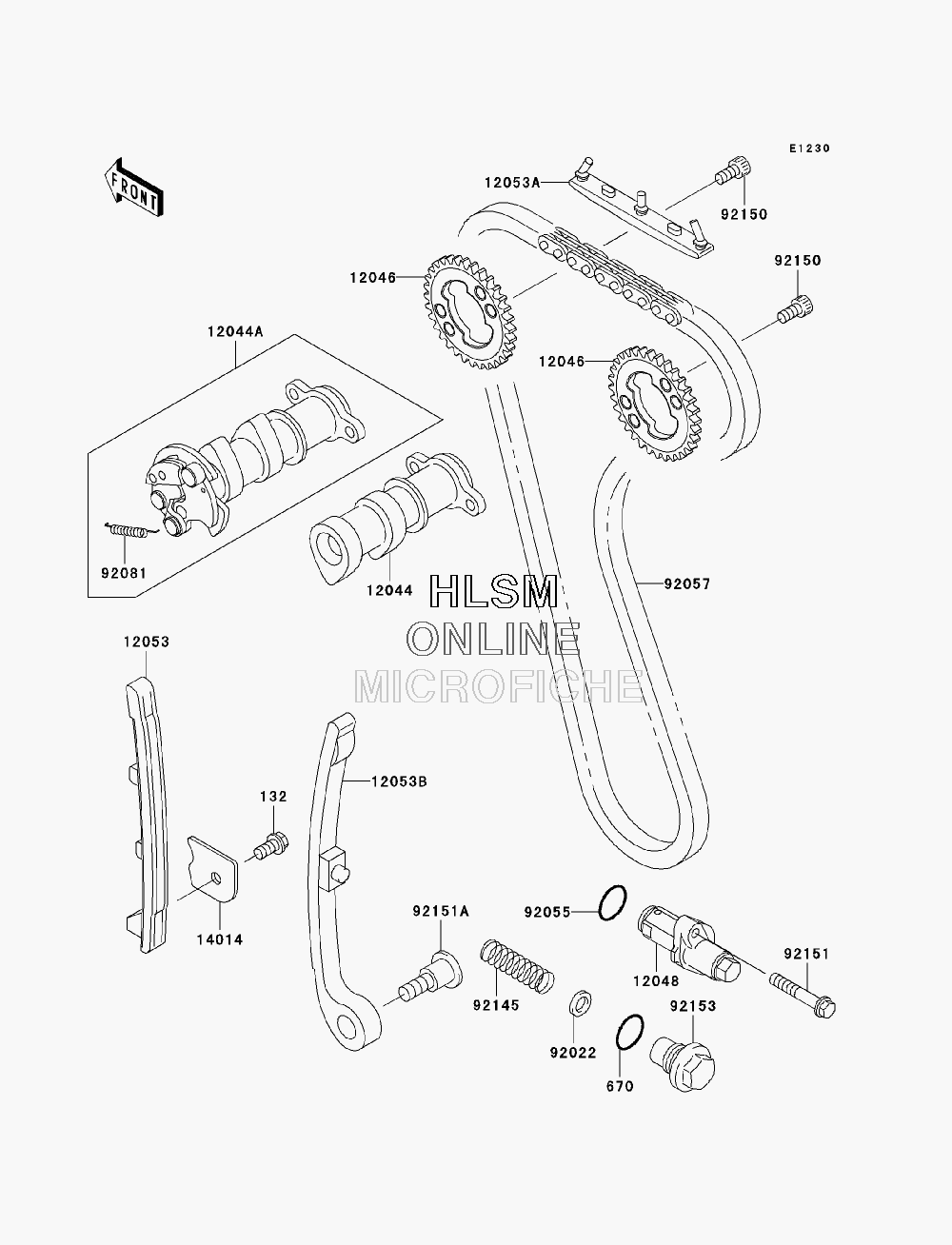

CAMSHAFT(S)/TENSIONER для Kawasaki KLX 250S (KLX250H6F) - 2006 года выпуска

  • №
    Артикул
    Название
  • 132
    132J0612 BOLT-FLANGED-SMALL,6X12
    BOLT-FLANGED-SMALL,6X12
  • 670
    670B2018 O RING,18MM
    O RING,18MM
  • 12044
    12044-1327 CAMSHAFT-VALVE,INTAKE
    CAMSHAFT-VALVE,INTAKE
  • 12044A
    12044-1365 CAMSHAFT-VALVE,EXHAUST
    CAMSHAFT-VALVE,EXHAUST
  • 12046
    12046-0001 SPROCKET,CAMSHAFT,32T
    SPROCKET,CAMSHAFT,32T
  • 12048
    12048-1140 TENSIONER-ASSY
    TENSIONER-ASSY
  • 12053
    12053-1315 GUIDE-CHAIN, FRONT
    GUIDE-CHAIN, FRONT
  • 12053A
    12053-1317 GUIDE-CHAIN,UPP
    GUIDE-CHAIN,UPP
  • 12053B
    12053-1391 GUIDE-CHAIN, REAR
    GUIDE-CHAIN, REAR
  • 14014
    14014-1130 PLATE-POSITION
    PLATE-POSITION
  • 92022
    92022-1108 WASHER,8.5X13.5X2
    WASHER,8.5X13.5X2
  • 92055
    92055-086 RING-O,18.8X1.9
    RING-O,18.8X1.9
  • 92057
    92057-1416 CHAIN,CAM,92RIGHT HAND2010
    CHAIN,CAM,92RIGHT HAND2010
  • 92081
    92081-1626 SPRING,DECOMPRESSOR
    SPRING,DECOMPRESSOR
  • 92145
    92145-0367 SPRING,TENSIONER
    SPRING,TENSIONER
  • 92150
    92150-1650 BOLT,SOCKET,6X10
    BOLT,SOCKET,6X10
  • 92151
    92151-1135 BOLT,6X35
    BOLT,6X35
  • 92151A
    92151-1154 BOLT,L=30
    BOLT,L=30
  • 92153
    92153-0650 BOLT,TENSIONER
    BOLT,TENSIONER
