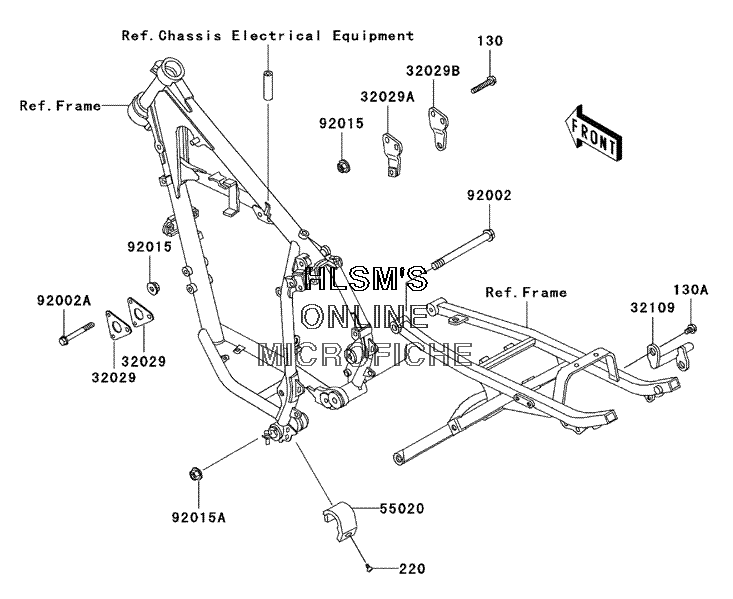

FRAME FITTING(S) для Kawasaki KLX250D - 2003 года выпуска`
-
№АртикулНазвание
-
130130H0845 BOLT, FLANGEDBOLT, FLANGED
-
130A130N0812 BOLT, FLANGEDBOLT, FLANGED
-
220220B0510 SCREW, PAN, CROSSCREW, PAN, CROS
-
3202932029-1352 BRACKET, ENGINE, FRONTBRACKET, ENGINE, FRONT
-
32029A32029-1353 BRACKET, ENGINE (LEFT)BRACKET, ENGINE (LEFT)
-
32029B32029-1354 BRACKET, ENGINE (RIGHT)BRACKET, ENGINE (RIGHT)
-
3210932109-1239-CE GRIP, FRAME (RIGHT) (SILVER NO.25)GRIP, FRAME (RIGHT) (SILVER NO.25)
-
5502055020-1174 GUARD, CHAINGUARD, CHAIN
-
9200292002-1347 BOLT, FLANGED, 12X135BOLT, FLANGED, 12X135
-
92002A92002-1349 BOLT, FLANGED, 8X70BOLT, FLANGED, 8X70
-
9201592015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015A92015-1426 NUT, 12MMNUT, 12MM
