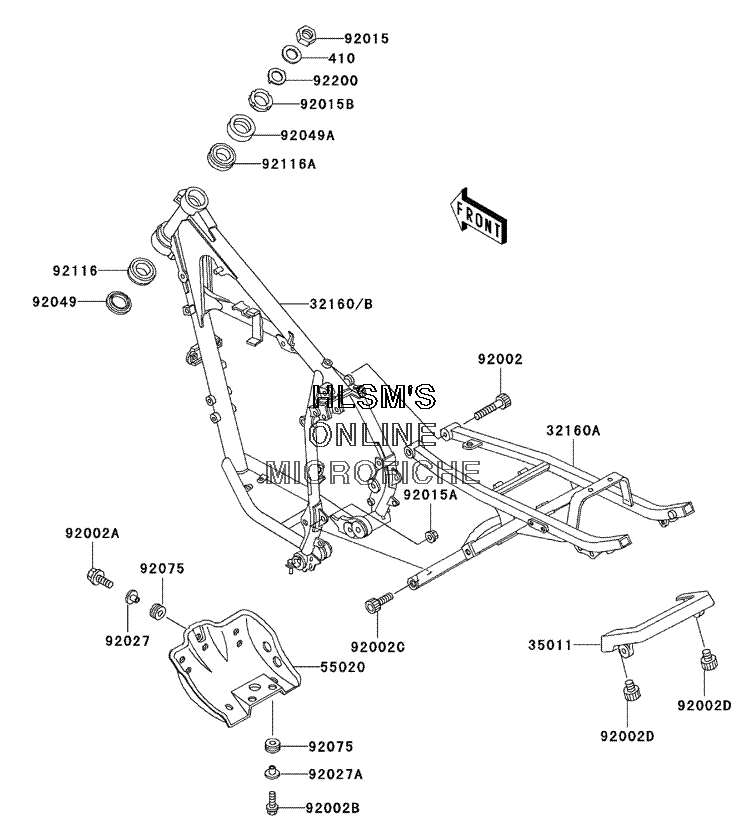

FRAME для Kawasaki KLX250D - 2003 года выпуска

  • №
    Артикул
    Название
  • 410
    410F1800 W, PLAIN, S
    W, PLAIN, S
  • 32160
    32160-1327-CE FRAME, COMP, FRONT (SILVER NO.25) (US ONLY)
    FRAME, COMP, FRONT (SILVER NO.25) (US ONLY)
  • 32160A
    32160-1328-CE FRAME, COMP, AL, REAR (SILVER NO.25)
    FRAME, COMP, AL, REAR (SILVER NO.25)
  • 32160B
    32160-1329-CE FRAME, COMP, FRONT (SILVER) (CALIF. ONLY)
    FRAME, COMP, FRONT (SILVER) (CALIF. ONLY)
  • 35011
    35011-1236 STAY, FRAME, REAR
    STAY, FRAME, REAR
  • 55020
    55020-1168 GUARD, ENGINE
    GUARD, ENGINE
  • 92002
    92002-1181 BOLT, SOCKET, 8X40
    BOLT, SOCKET, 8X40
  • 92002A
    92002-1417 BOLT, FLANGED, 8X20
    BOLT, FLANGED, 8X20
  • 92002B
    92002-1418 BOLT, 6X20
    BOLT, 6X20
  • 92002C
    92002-1442 BOLT, SOCKET, 8X25
    BOLT, SOCKET, 8X25
  • 92002D
    92002-1443 BOLT, SOCKET, 8X10
    BOLT, SOCKET, 8X10
  • 92015
    92015-1404 NUT, 18MM
    NUT, 18MM
  • 92015A
    92015-1406 NUT, FLANGED, 8MM
    NUT, FLANGED, 8MM
  • 92015B
    92015-1546 NUT, 25MM, T=12
    NUT, 25MM, T=12
  • 92027
    92027-1842 COLLAR, L=12
    COLLAR, L=12
  • 92027A
    92027-251 COLLAR, L=13.1
    COLLAR, L=13.1
  • 92049
    92049-1162 SEAL, OIL, XMHE36X52X4J
    SEAL, OIL, XMHE36X52X4J
  • 92049A
    92049-1214 SEAL, OIL, STEERING STEM
    SEAL, OIL, STEERING STEM
  • 92075
    92075-209 DAMPER
    DAMPER
  • 92116
    92116-1009 BEARING, ROLLER, HR320/28XJ
    BEARING, ROLLER, HR320/28XJ
  • 92116A
    92116-1052 BEARING, ROLLER, HICAP 32005JR
    BEARING, ROLLER, HICAP 32005JR
  • 92200
    92200-1357 WASHER, CLAW, 18.5X30X2.3
    WASHER, CLAW, 18.5X30X2.3
