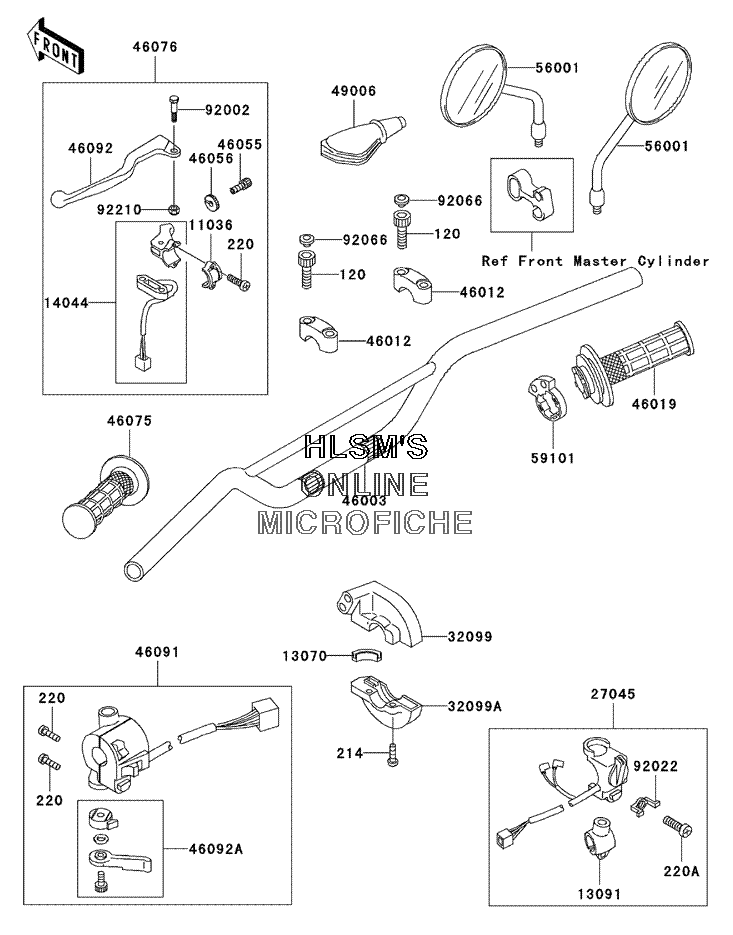

HANDLEBAR для Kawasaki KLX250D - 2003 года выпуска

  • №
    Артикул
    Название
  • 120
    120S0830 BOLT, SOCKET, 8X30 (BLACK)
    BOLT, SOCKET, 8X30 (BLACK)
  • 214
    214C0518 SCREW, PAN+,
    SCREW, PAN+,
  • 220
    220F0514 SCREW, PAN, CROSS
    SCREW, PAN, CROSS
  • 220A
    220F0620 SCREW, PAN, CROSS
    SCREW, PAN, CROSS
  • 11036
    11036-1297 BRACKET, A, LEVER HOLDER
    BRACKET, A, LEVER HOLDER
  • 13070
    13070-1131 GUIDE, THROTTLE PEACE
    GUIDE, THROTTLE PEACE
  • 13091
    13091-1255 HOLDER, ENGINE STOP SWITCH
    HOLDER, ENGINE STOP SWITCH
  • 14044
    14044-1052 HOLDER, CABLE, CLUTCH
    HOLDER, CABLE, CLUTCH
  • 27045
    27045-1074 SWITCH, ASSY., ENGINE STOP
    SWITCH, ASSY., ENGINE STOP
  • 32099
    32099-1072 CASE, THROTTLE, UPPER
    CASE, THROTTLE, UPPER
  • 32099A
    32099-1073 CASE, THROTTLE, LOWER
    CASE, THROTTLE, LOWER
  • 46003
    46003-1392 HANDLE
    HANDLE
  • 46012
    46012-1102 HOLDER, HANDLE, UPPER
    HOLDER, HANDLE, UPPER
  • 46019
    46019-1054 GRIP, ASSY., THROTTLE
    GRIP, ASSY., THROTTLE
  • 46055
    46055-009 SCREW, CABLE ADJUST, 8MM
    SCREW, CABLE ADJUST, 8MM
  • 46056
    46056-006 NUT, CABLE ADJUST
    NUT, CABLE ADJUST
  • 46075
    46075-1051 GRIP (LEFT)
    GRIP (LEFT)
  • 46076
    46076-1129 LEVER, ASSY., GRIP, CLUTCH
    LEVER, ASSY., GRIP, CLUTCH
  • 46091
    46091-1791 HOUSING, ASSY., CONTROL (LEFT)
    HOUSING, ASSY., CONTROL (LEFT)
  • 46092
    46092-1111 LEVER, GRIP, CLUTCH
    LEVER, GRIP, CLUTCH
  • 46092A
    46092-1123 LEVER, GRIP, CHOKE
    LEVER, GRIP, CHOKE
  • 49006
    49006-1099 BOOT, LEVER HOLDER
    BOOT, LEVER HOLDER
  • 56001
    56001-1204 MIRROR, ASSY.
    MIRROR, ASSY.
  • 59101
    59101-1106 REEL, THROTTLE
    REEL, THROTTLE
  • 92002
    92002-1475 BOLT, LEVER SET
    BOLT, LEVER SET
  • 92022
    92022-1474 WASHER, ENGINE STOP SWITCH
    WASHER, ENGINE STOP SWITCH
  • 92066
    92066-1216 PLUG
    PLUG
  • 92210
    92210-0006 NUT, LOCK, 6MM
    NUT, LOCK, 6MM
