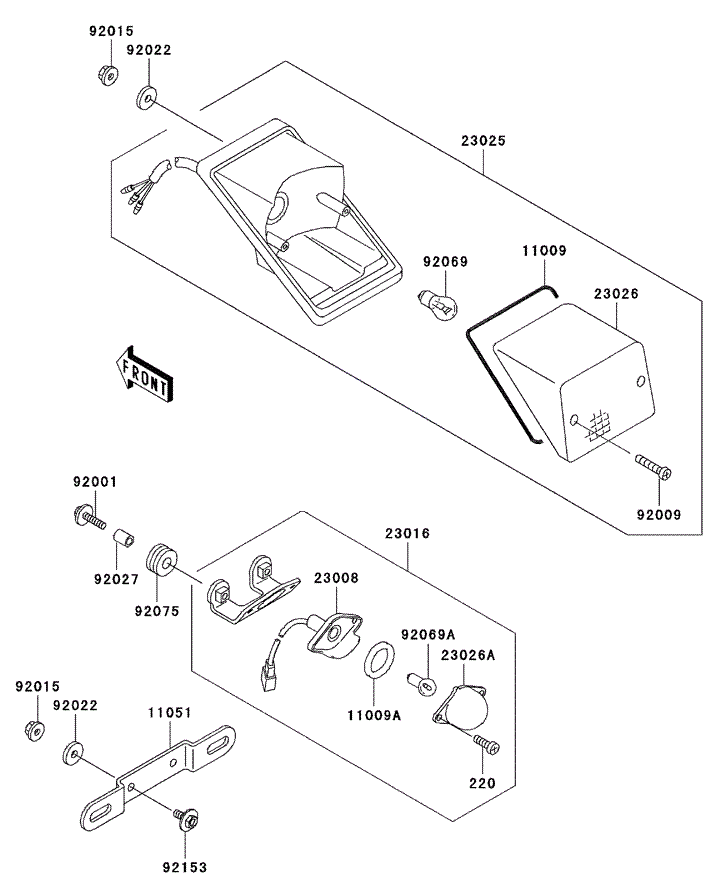

TAILLIGHT(S) для Kawasaki KLX250D - 2003 года выпуска
-
№АртикулНазвание
-
220220B0410 SCREW, PAN, CROSSCREW, PAN, CROS
-
1100911009-1371 GASKET, TAIL LAMPGASKET, TAIL LAMP
-
11009A11009-1372 GASKET, LICENSE PLATE LAMPGASKET, LICENSE PLATE LAMP
-
1105111051-1522 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
2300823008-1205 SOCKET, ASSY., LICENSE PLATE LAMPSOCKET, ASSY., LICENSE PLATE LAMP
-
2301623016-1058 LAMP, ASSY., LICENSE PLATELAMP, ASSY., LICENSE PLATE
-
2302523025-1314 LAMP, TAILLAMP, TAIL
-
2302623026-1053 LENS, TAIL LAMPLENS, TAIL LAMP
-
23026A23026-1054 LENS, LAMPLENS, LAMP
-
9200192001-1774 BOLT, 6X22BOLT, 6X22
-
9200992009-1378 SCREW, TAPPING, 4X20SCREW, TAPPING, 4X20
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202292022-1557 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
-
9202792027-120 COLLAR, 6.8X10X10.5COLLAR, 6.8X10X10.5
-
9206992069-063 BULB, 12V 21/5WBULB, 12V 21/5W
-
92069A92069-1055 BULB, 12V 5WBULB, 12V 5W
-
9207592075-222 DAMPER, CASEDAMPER, CASE
-
9215392153-0684 BOLT, 6X16BOLT, 6X16
