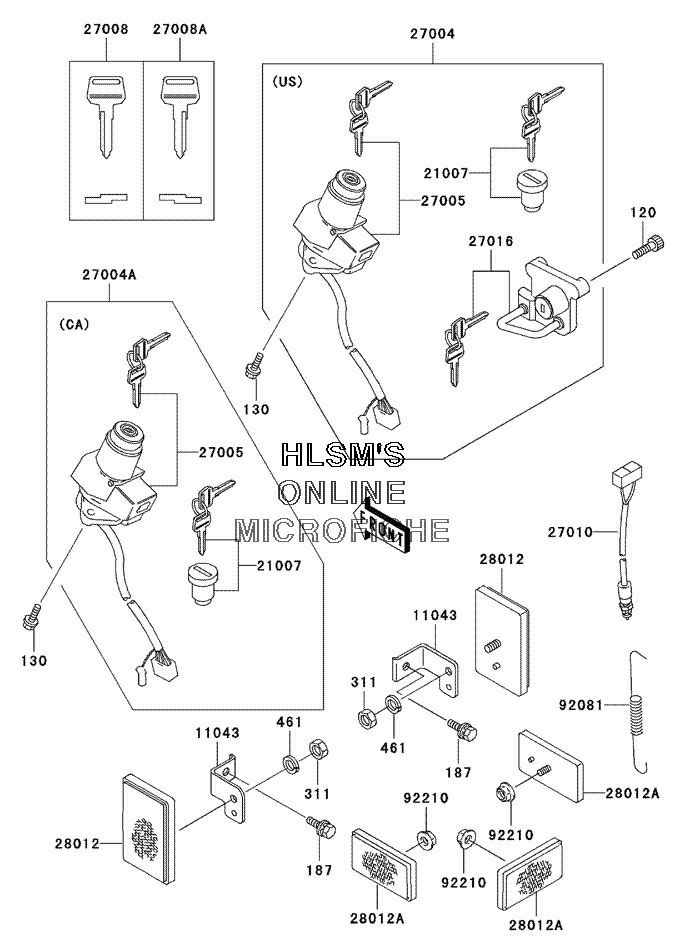

IGNITION SWITCH для Kawasaki KLX250D - 2003 года выпуска

  • №
    Артикул
    Название
  • 120
    120S0612 BOLT, SOCKET (US ONLY)
    BOLT, SOCKET (US ONLY)
  • 130
    130D0614 BOLT, FLANGED, 6X14
    BOLT, FLANGED, 6X14
  • 187
    187C0614 BOLT, UPSET, WSP
    BOLT, UPSET, WSP
  • 311
    311C0500 NUT, HEX
    NUT, HEX
  • 461
    461K0500 WASHER, SPRING, 5MM (BLACK)
    WASHER, SPRING, 5MM (BLACK)
  • 11043
    11043-1362 BRACKET, REFLECTOR, FRONT
    BRACKET, REFLECTOR, FRONT
  • 21007
    21007-5022 ROTOR, LOCK, TANK CAP
    ROTOR, LOCK, TANK CAP
  • 27004
    27004-5397 SWITCH, ASSY. (US ONLY)
    SWITCH, ASSY. (US ONLY)
  • 27004A
    27004-5414 SWITCH, ASSY. (CALIF. ONLY)
    SWITCH, ASSY. (CALIF. ONLY)
  • 27005
    27005-1103 SWITCH, ASSY., IGNITION
    SWITCH, ASSY., IGNITION
  • 27008
    27008-1034 KEY, LOCK, BLANK, #A (OPT)
    KEY, LOCK, BLANK, #A (OPT)
  • 27008A
    27008-1035 KEY, LOCK, BLANK, #B (OPT)
    KEY, LOCK, BLANK, #B (OPT)
  • 27010
    27010-1484 SWITCH, REAR BRAKE
    SWITCH, REAR BRAKE
  • 27016
    27016-5075 LOCK, ASSY., HELMET (US ONLY)
    LOCK, ASSY., HELMET (US ONLY)
  • 28012
    28012-1003 REFLECTOR, REFLEX
    REFLECTOR, REFLEX
  • 28012A
    28012-1088 REFLECTOR, REFLEX
    REFLECTOR, REFLEX
  • 92081
    92081-1704 SPRING, BRAKE LAMP SWITCH
    SPRING, BRAKE LAMP SWITCH
  • 92210
    92210-0007 NUT, FLANGED, 5MM
    NUT, FLANGED, 5MM
