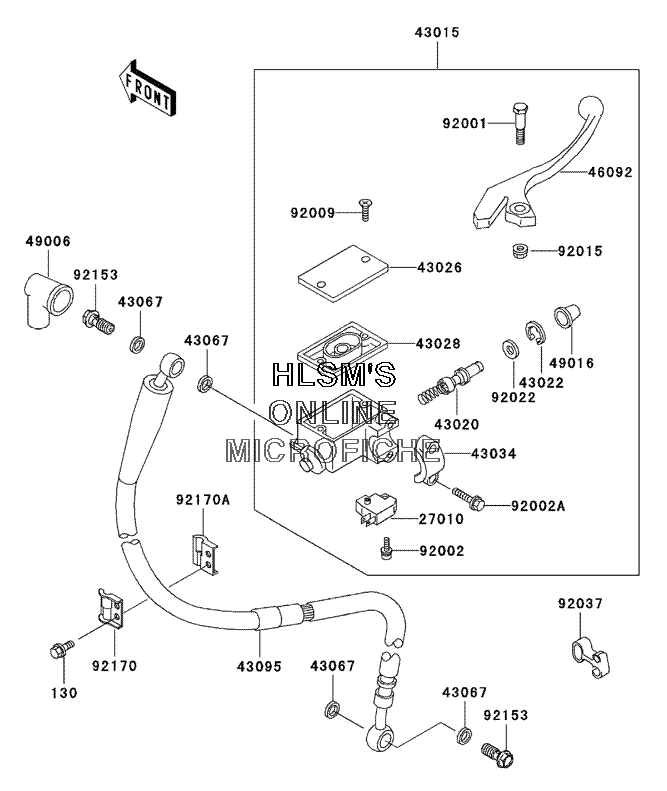

BRAKE - MASTER CYLINDER - FRONT для Kawasaki KLX250D - 2003 года выпуска`
-
№АртикулНазвание
-
130130J0614 BOLT, FLANGED, 6X14 (BLACK)BOLT, FLANGED, 6X14 (BLACK)
-
2701027010-1170 SWITCH, BRAKESWITCH, BRAKE
-
4301543015-1470 CYLINDER, ASSY., MASTER, FRONTCYLINDER, ASSY., MASTER, FRONT
-
4302043020-1065 PISTON, COMP, BRAKEPISTON, COMP, BRAKE
-
4302243022-1010 STOPPER, BRAKE, PISTONSTOPPER, BRAKE, PISTON
-
4302643026-1074 CAP, BRAKECAP, BRAKE
-
4302843028-1061 DIAPHRAGMDIAPHRAGM
-
4303443034-1016 HOLDER, BRAKE, MASTER CYLINDERHOLDER, BRAKE, MASTER CYLINDER
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4309543095-1331 HOSE, BRAKE, FRONTHOSE, BRAKE, FRONT
-
4609246092-1135 LEVER, GRIP, FRONT BRAKELEVER, GRIP, FRONT BRAKE
-
4900649006-1040 BOOT, DUSTBOOT, DUST
-
4901649016-1044 COVER, SEAL, MASTER CYLINDERCOVER, SEAL, MASTER CYLINDER
-
9200192001-1728 BOLT, FRONT BRAKE LEVERBOLT, FRONT BRAKE LEVER
-
9200292002-1323 BOLT, SCREW, 4X12BOLT, SCREW, 4X12
-
92002A92002-1894 BOLTBOLT
-
9200992009-1458 SCREW, 4MMSCREW, 4MM
-
9201592015-1233 NUT, FLANGED, 6MM (BLACK)NUT, FLANGED, 6MM (BLACK)
-
9202292022-1814 WASHERWASHER
-
9203792037-1629 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
9217092170-1231 CLAMP, BRAKE HOSE, OUTERSIDECLAMP, BRAKE HOSE, OUTERSIDE
-
92170A92170-1232 CLAMP, BRAKE HOSE, INNERSIDECLAMP, BRAKE HOSE, INNERSIDE
