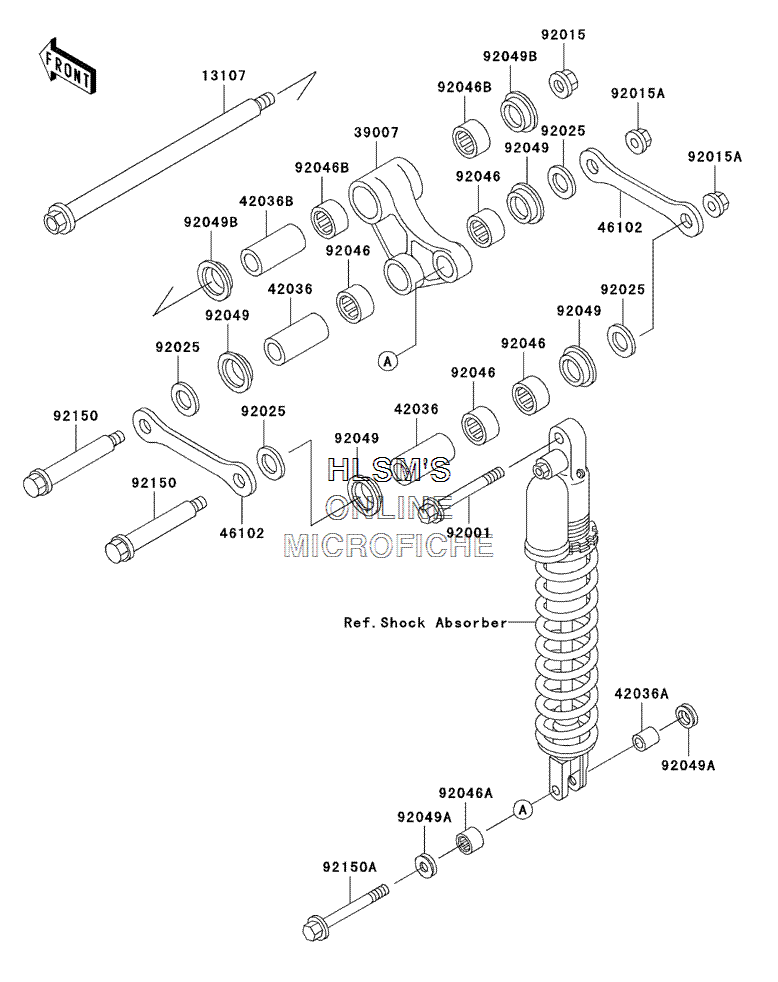

SUSPENSION - REAR для Kawasaki KLX 300R - 2002 года выпуска

  • №
    Артикул
    Название
  • 13107
    13107-1330 SHAFT, ARM, 14MM
    SHAFT, ARM, 14MM
  • 39007
    39007-1234 ARM, SUSP, UNI TRAK
    ARM, SUSP, UNI TRAK
  • 42036
    42036-1245 SLEEVE, 15X22X57
    SLEEVE, 15X22X57
  • 42036A
    42036-1248 SLEEVE, 10X16X19
    SLEEVE, 10X16X19
  • 42036B
    42036-1318 SLEEVE, 17X25X57
    SLEEVE, 17X25X57
  • 46102
    46102-1350 ROD, SUSPENSION
    ROD, SUSPENSION
  • 92001
    92001-1499 BOLT, FLANGED, 10X44
    BOLT, FLANGED, 10X44
  • 92015
    92015-1407 NUT, 14MM
    NUT, 14MM
  • 92015A
    92015-1433 NUT, FLANGED, 12MM
    NUT, FLANGED, 12MM
  • 92025
    92025-1135 SHIM, 15.3X27.5X0.6
    SHIM, 15.3X27.5X0.6
  • 92046
    92046-1162 BEARING, NEEDLE, F, 2220
    BEARING, NEEDLE, F, 2220
  • 92046A
    92046-1192 BEARING, NEEDLE, 16BM2212
    BEARING, NEEDLE, 16BM2212
  • 92046B
    92046-1228 BEARING, NEEDLE, BM2520
    BEARING, NEEDLE, BM2520
  • 92049
    92049-1254 SEAL, OIL, MHA22 28 5.7F
    SEAL, OIL, MHA22 28 5.7F
  • 92049A
    92049-1330 SEAL, OIL
    SEAL, OIL
  • 92049B
    92049-1426 SEAL, OIL, MF025N1
    SEAL, OIL, MF025N1
  • 92150
    92150-1337 BOLT, ROD, 12X93
    BOLT, ROD, 12X93
  • 92150A
    92150-1711 BOLT, FLANGED, 10X40
    BOLT, FLANGED, 10X40
