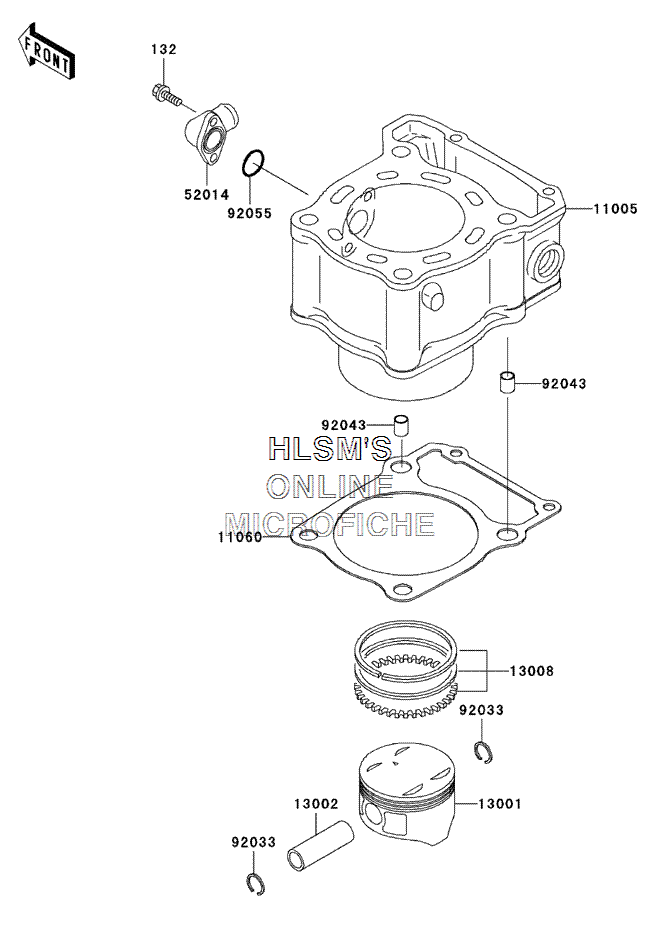

CYLINDER - PISTON(S) для Kawasaki KLX 300R - 2002 года выпуска
-
№АртикулНазвание
-
132132Y0614 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1100511005-1983 CYLINDER, ENGINECYLINDER, ENGINE
-
1106011060-1740 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1300113001-1463 PISTON, ENGINEPISTON, ENGINE
-
1300213002-1109 PIN, PISTONPIN, PISTON
-
1300813008-1071 RING, SET, PISTON (STD)RING, SET, PISTON (STD)
-
5201452014-1084 ELBOWELBOW
-
9203392033-1054 RING, SNAPRING, SNAP
-
9204392043-4009 PIN, 10.1X12X14PIN, 10.1X12X14
-
9205592055-055 O-RING, 19.5X1.5O-RING, 19.5X1.5
