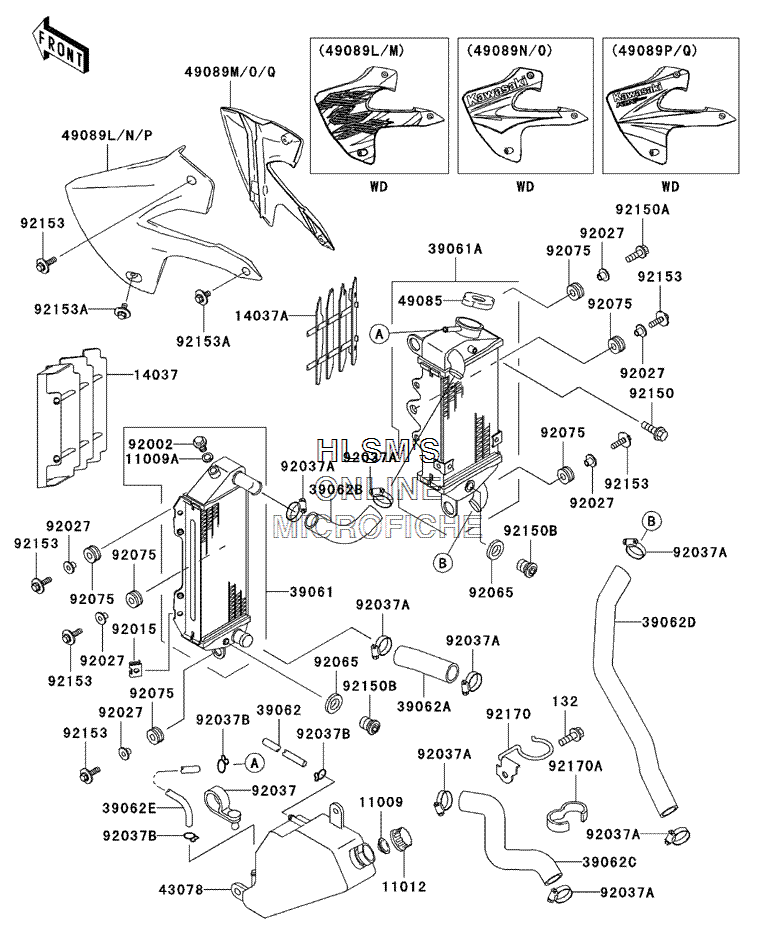

RADIATOR для Kawasaki KLX 300R - 2002 года выпуска

  • №
    Артикул
    Название
  • 11009
    11009-1145 GASKET, RESERVOIR TANK CAP
    GASKET, RESERVOIR TANK CAP
  • 11009A
    11009-1152 GASKET, DRAIN BOLT
    GASKET, DRAIN BOLT
  • 11012
    11012-1084 CAP, RESERVE TANK
    CAP, RESERVE TANK
  • 14037
    14037-1099-RZ SCREEN (WHITE)
    SCREEN (WHITE)
  • 14037A
    14037-1274-RZ SCREEN (RIGHT) (WHITE)
    SCREEN (RIGHT) (WHITE)
  • 39061
    39061-1233 RADIATOR, ASSY (LEFT)
    RADIATOR, ASSY (LEFT)
  • 39061A
    39061-1234 RADIATOR, ASSY (RIGHT)
    RADIATOR, ASSY (RIGHT)
  • 39062
    39062-1315 HOSE, COOLING, 5X9X420
    HOSE, COOLING, 5X9X420
  • 39062A
    39062-1535 HOSE, COOLING, HEAD, RADIATOR
    HOSE, COOLING, HEAD, RADIATOR
  • 39062B
    39062-1536 HOSE, COOLING, RADIATOR (LEFT/RIGHT)
    HOSE, COOLING, RADIATOR (LEFT/RIGHT)
  • 39062C
    39062-1563 HOSE, COOLING, PUMP, CYLINDER
    HOSE, COOLING, PUMP, CYLINDER
  • 39062D
    39062-1564 HOSE, COOLING, RADIATOR, PUMP
    HOSE, COOLING, RADIATOR, PUMP
  • 39062E
    39062-1569 HOSE, COOLING, 5X9X1080
    HOSE, COOLING, 5X9X1080
  • 43078
    43078-1140 RESERVOIR
    RESERVOIR
  • 49085
    49085-1070 CAP, ASSY, PRESSURE, P1.1
    CAP, ASSY, PRESSURE, P1.1
  • 49089L
    49089-5403-6W SHROUD, ENGINE (LEFT) (L.GREEN)
    SHROUD, ENGINE (LEFT) (L.GREEN)
  • 49089M
    49089-5404-6W SHROUD, ENGINE (RIGHT) (L.GREEN)
    SHROUD, ENGINE (RIGHT) (L.GREEN)
  • 92002
    92002-1682 BOLT, RADIATOR DRAIN
    BOLT, RADIATOR DRAIN
  • 92015
    92015-1487 NUT
    NUT
  • 92027
    92027-194 COLLAR, L=11.1
    COLLAR, L=11.1
  • 92037
    92037-1163 CLAMP, SPEED, L=58
    CLAMP, SPEED, L=58
  • 92037A
    92037-1589 CLAMP, COOLING HOSE
    CLAMP, COOLING HOSE
  • 92037B
    92037-1712 CLAMP
    CLAMP
  • 92065
    92065-058 GASKET, 10.5X16X1
    GASKET, 10.5X16X1
  • 132
    132J0610 BOLT, FLANGED, SMALL, 6X10
    BOLT, FLANGED, SMALL, 6X10
  • 92075
    92075-209 DAMPER RUBBER,RR FENDER
    DAMPER RUBBER,RR FENDER
  • 92150
    92150-1340 BOLT, 6X14
    BOLT, 6X14
  • 92150A
    92150-1507 BOLT, FLANGED, 6X25
    BOLT, FLANGED, 6X25
  • 92150B
    92150-1867 BOLT, 10X10
    BOLT, 10X10
  • 92153
    92153-0502 BOLT, 6X20
    BOLT, 6X20
  • 92153A
    92153-0503 BOLT, 6X12
    BOLT, 6X12
  • 92170
    92170-1357 CLAMP
    CLAMP
  • 92170A
    92170-1419 CLAMP
    CLAMP
