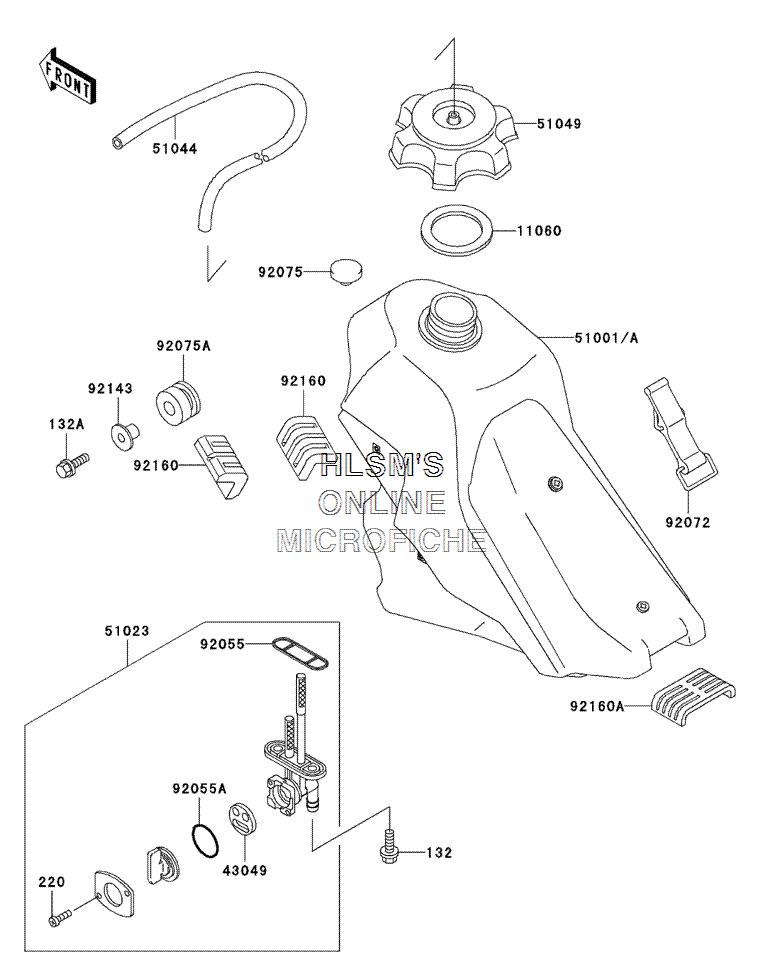

FUEL TANK для Kawasaki KLX 300R - 2002 года выпуска
-
№АртикулНазвание
-
132132G0612 BOLT, FLANGED, SMALL 6X12BOLT, FLANGED, SMALL 6X12
-
132A132G0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
220220B0308 SCREW, PAN, CROS 3X8SCREW, PAN, CROS 3X8
-
1106011060-1340 GASKET, FUEL TANK CAPGASKET, FUEL TANK CAP
-
4304943049-1091 PACKING, TAP VALVEPACKING, TAP VALVE
-
5100151001-1670-6W TANK, COMP, FUEL (L.GREEN)TANK, COMP, FUEL (L.GREEN)
-
5102351023-1332 TAP, ASSY, FUELTAP, ASSY, FUEL
-
5104451044-1185 TUBE, ASSYTUBE, ASSY
-
5104951049-1108 CAP, TANK, FUELCAP, TANK, FUEL
-
9205592055-1112 O-RING, FUEL TAP PACKINGO-RING, FUEL TAP PACKING
-
92055A92055-1419 O-RING, TAP LEVERO-RING, TAP LEVER
-
9207292072-1229 BAND, FUEL TANKBAND, FUEL TANK
-
9207592075-005 DAMPERDAMPER
-
92075A92075-1123 DAMPER, RUBBERDAMPER, RUBBER
-
9214392143-1353 COLLARCOLLAR
-
9216092160-1328 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92160A92160-1397 DAMPER, FUEL TANK, REARDAMPER, FUEL TANK, REAR
