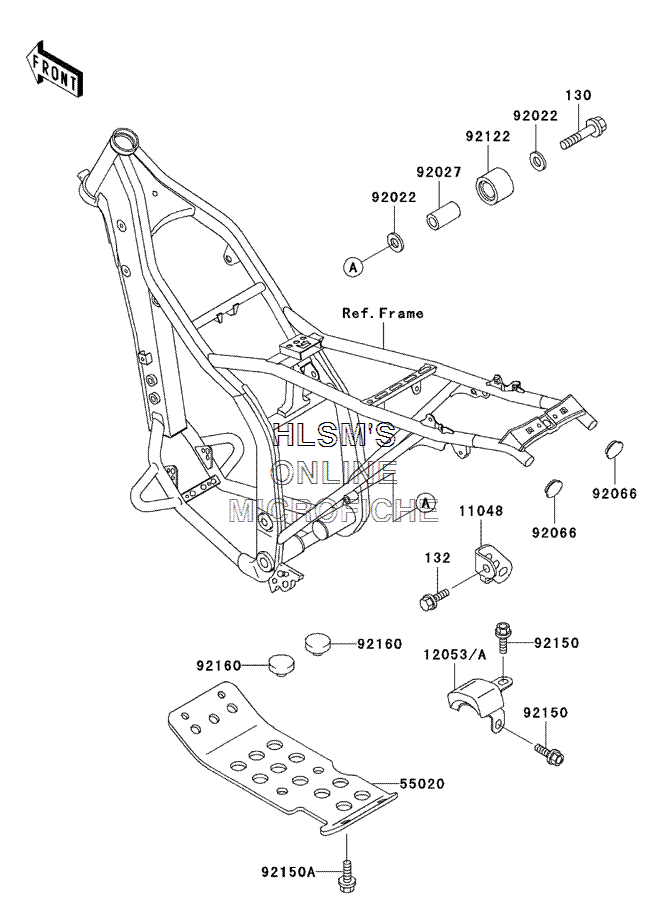

FRAME FITTING(S) для Kawasaki KLX 300R - 2002 года выпуска`
-
№АртикулНазвание
-
130130G0840 BOLT, FLANGED, 8X40BOLT, FLANGED, 8X40
-
132132G0612 BOLT, FLANGED, SMALL 6X12BOLT, FLANGED, SMALL 6X12
-
1104811048-1223 BRACKET, AIR FILTER, LOWER (LEFT)BRACKET, AIR FILTER, LOWER (LEFT)
-
12053A12053-1314 GUIDE, CHAINGUIDE, CHAIN
-
5502055020-1456 GUARD, ENGINEGUARD, ENGINE
-
9202292022-1561 WASHER, 8.5X20X1.6WASHER, 8.5X20X1.6
-
9202792027-1670 COLLAR, CHAIN ROLLERCOLLAR, CHAIN ROLLER
-
9206692066-1034 PLUG, FRAME END, 12X13PLUG, FRAME END, 12X13
-
9212292122-1153 ROLLER, CHAIN GUIDEROLLER, CHAIN GUIDE
-
9215092150-1340 BOLT, 6X14BOLT, 6X14
-
92150A92150-1435 BOLT, 6X12BOLT, 6X12
-
9216092160-1396 DAMPER, ENGINE GUARDDAMPER, ENGINE GUARD
