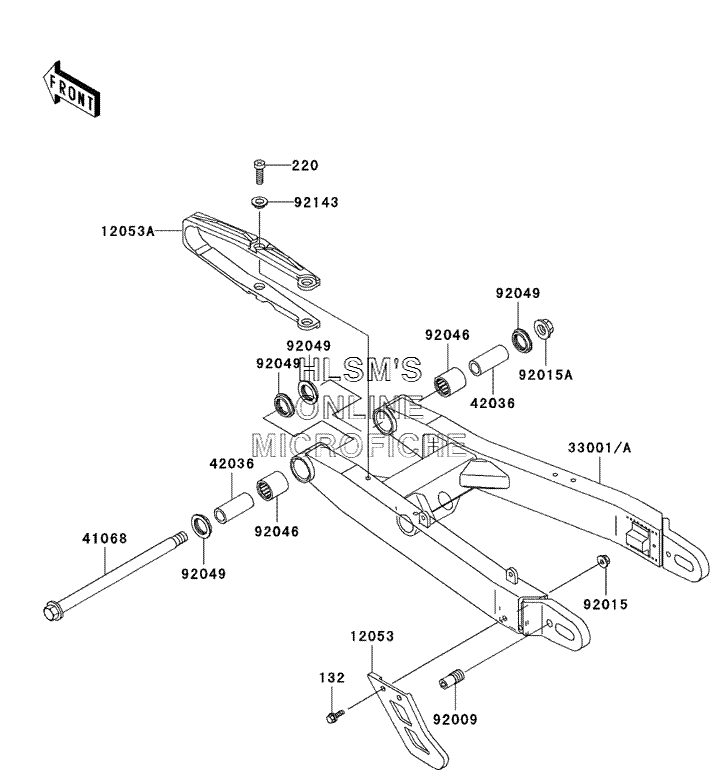

SUSPENSION - SWINGARM для Kawasaki Super Sherpa - 2000 года выпуска
-
№АртикулНазвание
-
132132V0616 BOLT, FLANGED, SMALL, 6X16BOLT, FLANGED, SMALL, 6X16
-
220220B0608 SCREW, PAN, CROS, 6X8SCREW, PAN, CROS, 6X8
-
1205312053-1389 GUIDE, CHAIN, REARGUIDE, CHAIN, REAR
-
12053A12053-1392 GUIDE, CHAIN, FRONTGUIDE, CHAIN, FRONT
-
33001A33001-1526-TX ARM, COMP, SWING (SILVER)ARM, COMP, SWING (SILVER)
-
4106841068-1078 AXLE, FRONT, 15X242AXLE, FRONT, 15X242
-
4203642036-1335 SLEEVE, 15.1X22X52SLEEVE, 15.1X22X52
-
9200992009-1789 SCREW, SET, SOCKET, 10X21SCREW, SET, SOCKET, 10X21
-
9201592015-1078 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1407 NUT, 14MMNUT, 14MM
-
9204692046-1174 BEARING, NEEDLE, TA2230ZBEARING, NEEDLE, TA2230Z
-
9204992049-1289 SEAL, OIL, MHA22X29X5.7FSEAL, OIL, MHA22X29X5.7F
-
9214392143-1156 COLLARCOLLAR
