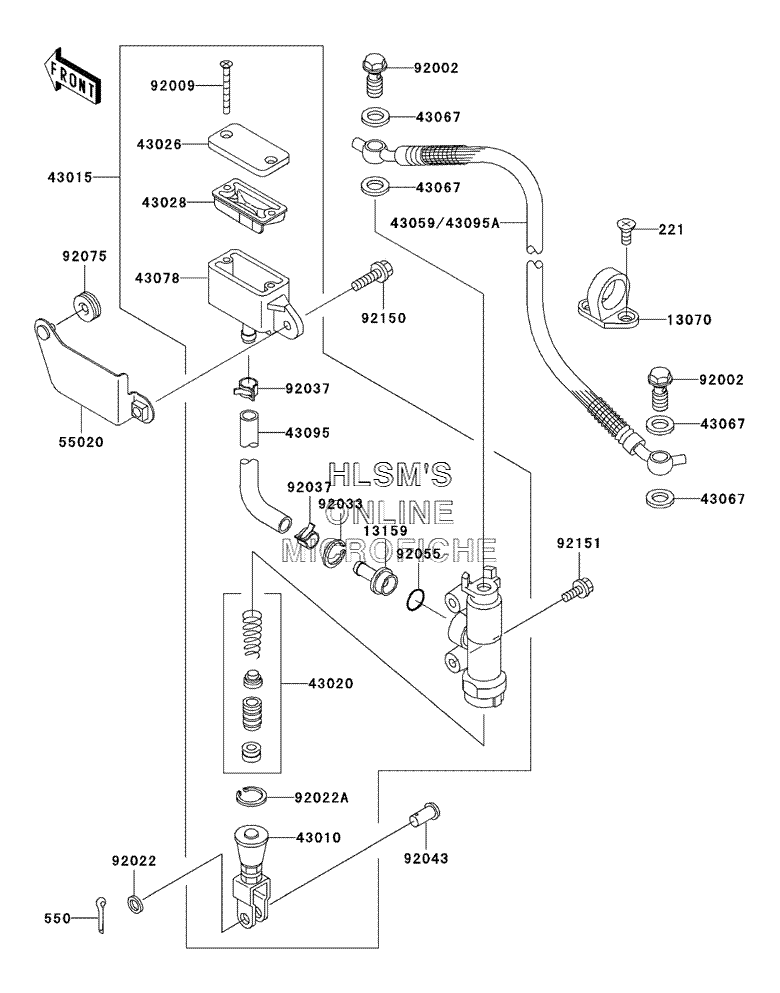

BRAKE - MASTER CYLINDER - REAR для Kawasaki Super Sherpa - 2000 года выпуска`
-
№АртикулНазвание
-
221221B0610 SCREW, CSK, CROS, 6X10SCREW, CSK, CROS, 6X10
-
550550D2015 PIN, COTTER, 2.0X15PIN, COTTER, 2.0X15
-
1307013070-1322 GUIDE, HOSEGUIDE, HOSE
-
1315913159-1065 CONNECTORCONNECTOR
-
4301043010-1068 ROD, ASSY, BRAKEROD, ASSY, BRAKE
-
4301543015-1707 CYLINDER, ASSY, MASTER, REARCYLINDER, ASSY, MASTER, REAR
-
4302043020-1094 PISTON, COMP, BRAKEPISTON, COMP, BRAKE
-
4302643026-1075 CAP, BRAKECAP, BRAKE
-
4302843028-1067 DIAPHRAGMDIAPHRAGM
-
4305943059-1993 HOSE, BRAKE, REARHOSE, BRAKE, REAR
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4307843078-1189 RESERVOIRRESERVOIR
-
4309543095-1065 HOSE, BRAKE, REAR MASTER CYLINDERHOSE, BRAKE, REAR MASTER CYLINDER
-
5502055020-1610 GUARD, REAR MASTER RESERVOIRGUARD, REAR MASTER RESERVOIR
-
9200292002-1888 BOLT, OIL, L=23BOLT, OIL, L=23
-
9200992009-1596 SCREW, 4X40SCREW, 4X40
-
9202292022-1028 WASHER, 8.5X13X1WASHER, 8.5X13X1
-
92022A92022-1601 WASHER, CIRCRIPWASHER, CIRCRIP
-
9203392033-1186 RING, SNAP, 20.5MMRING, SNAP, 20.5MM
-
9203792037-1710 CLAMPCLAMP
-
9204392043-0004 PINPIN
-
9205592055-1251 O-RING, MASTER CYLINDERO-RING, MASTER CYLINDER
-
9207592075-1629 DAMPERDAMPER
-
9215092150-1481 BOLT, FLANGED, 6X22BOLT, FLANGED, 6X22
-
9215192151-1423 BOLT, 6X14BOLT, 6X14
