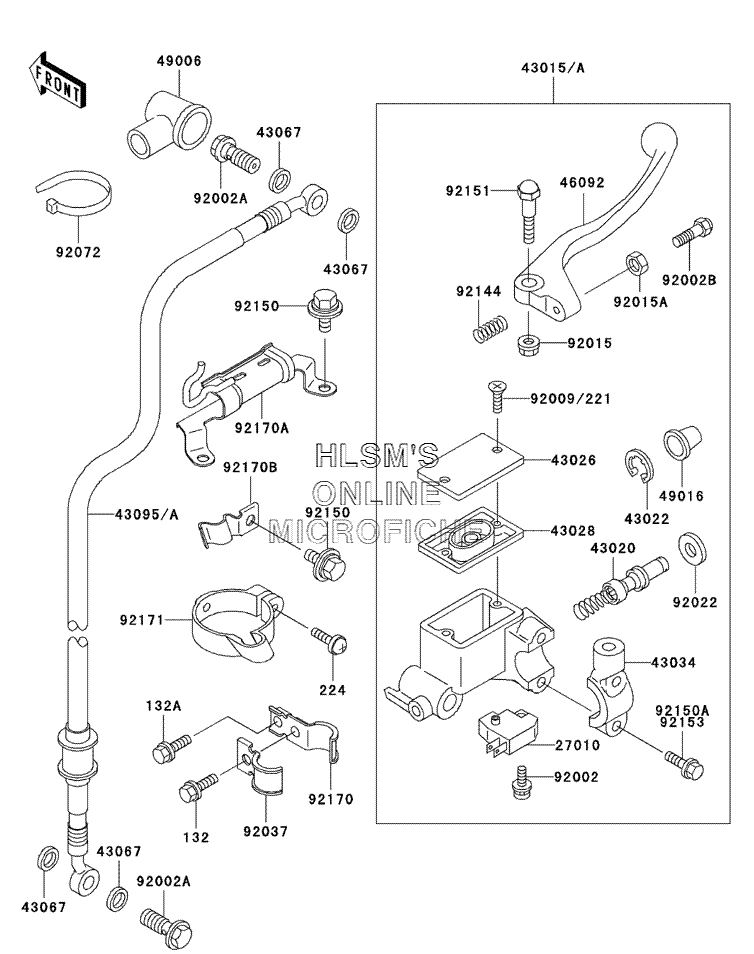

BRAKE - MASTER CYLINDER - FRONT для Kawasaki Super Sherpa - 2000 года выпуска`
-
№АртикулНазвание
-
132132J0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132J0616 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
224224B0520 SCREW, PAN, WP, CROS, 5X20SCREW, PAN, WP, CROS, 5X20
-
2701027010-1170 SWITCH, BRAKESWITCH, BRAKE
-
43015A43015-1598 CYLINDER, ASSY, MASTER, FRONTCYLINDER, ASSY, MASTER, FRONT
-
4302043020-1065 PISTON, COMP, BRAKEPISTON, COMP, BRAKE
-
4302243022-1010 STOPPER, BRAKE, PISTONSTOPPER, BRAKE, PISTON
-
4302643026-1081 CAP, BRAKECAP, BRAKE
-
4302843028-1061 DIAPHRAGMDIAPHRAGM
-
4303443034-1144 HOLDER, BRAKE, MASTER CYLINDERHOLDER, BRAKE, MASTER CYLINDER
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4309543095-1145 HOSE, BRAKE, FRONTHOSE, BRAKE, FRONT
-
4609246092-1199 LEVER, GRIP, FRONT BRAKELEVER, GRIP, FRONT BRAKE
-
4900649006-1040 BOOT, DUSTBOOT, DUST
-
4901649016-1044 COVER, SEAL, MASTER CYLINDERCOVER, SEAL, MASTER CYLINDER
-
9200292002-1323 BOLT, SCREW, 4X12BOLT, SCREW, 4X12
-
92002A92002-1888 BOLT, OIL, L=23BOLT, OIL, L=23
-
92002B92002-1893 BOLT, ADJUSTBOLT, ADJUST
-
9200992009-1795 SCREWSCREW
-
9201592015-1528 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1642 NUT, ADJUSTNUT, ADJUST
-
9202292022-1814 WASHERWASHER
-
9203792037-1898 CLAMP, HOSECLAMP, HOSE
-
9207292072-1195 BAND, L=202BAND, L=202
-
9214492144-1103 SPRING, RETURNSPRING, RETURN
-
9215092150-1435 BOLT, 6X12BOLT, 6X12
-
92150A92150-1452 BOLTBOLT
-
9215192151-1215 BOLT, LEVER SETBOLT, LEVER SET
-
9217092170-1749 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
92170A92170-1778 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
92170B92170-1781 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
9217192171-1079 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
